Ultimate Guide to 3M™ High Flow Series Filter Cartridge

The 3M™ High Flow Series Filter Cartridge represents a significant advancement in liquid filtration technology. This innovative solution allows for high-precision filtration with fewer filter elements, reducing change-out time and lowering operational costs. Built with an absolute-rated, pleated media, the High Flow Series boasts superior retention and dirt-holding capabilities. Its coreless construction also promotes environmental responsibility by reducing waste. In the ensuing sections, we will delve into the specifics of its design, operation, and application benefits.

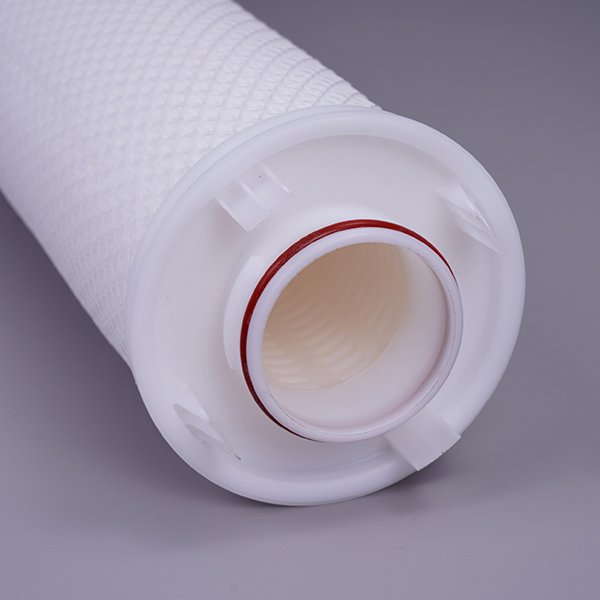

Understanding the 3m™ High Flow Series Filter Cartridges

Introduction to 3M™ High Flow Series

The 3M™ High Flow Series Filter Cartridges are a cutting-edge solution in the field of liquid filtration, designed to meet the demands of various industries. Below are key aspects to understand about this innovative series:

1. High Efficiency: The 3M™ High Flow Series incorporates a revolutionary design that allows for higher flow rates and loading capacity, thus improving efficiency and reducing frequent cartridge change-outs.
2. Coreless Construction: The High Flow Series is designed with a coreless construction, mitigating environmental impact by minimizing waste.
3. Advanced Filtration Technology: The cartridges utilize absolute-rated, pleated media for high-precision filtration, which ensures superior retention and dirt-holding capabilities.
4. Broad Application Spectrum: These filter cartridges find extensive application across industries, such as in Pre-RO/IDF, chemicals, beverages, and bottled water production.
5. Easy Installation: The design of the cartridges facilitates quick and easy installation and replacement, further reducing operational downtime.

In the following sections, we will explore these aspects in detail, providing an in-depth understanding of the 3M™ High Flow Series Filter Cartridges.

Understanding High Flow Series Filter Cartridges

Their unique design and advanced functionalities characterize the 3M™ High Flow Series Filter Cartridges. The high-efficiency element of the cartridge is facilitated by its ability to handle significantly higher flow rates when compared to traditional rigid, pleated filter cartridges. This efficiency reduces the number of filter cartridges required, leading to smaller, more manageable systems and fewer cartridge change-outs.

The coreless construction of these cartridges not only minimizes waste but also enhances the overall performance of the filters. This coreless design eliminates the need for a central core in the filter, thereby increasing the surface area for filtration and improving the loading capacity.

Furthermore, the cartridges deploy advanced filtration technology with absolute-rated, pleated media. This precise filtration ensures excellent contaminant retention and superior dirt-holding capabilities, providing clean, high-quality output consistently.

The broad spectrum of applications for these cartridges stems from their versatile design and superior performance. They are ideal for use in Pre-RO/IDF, chemical processes, and the beverage and bottled water production industry. Their ease of installation and replacement makes them highly user-friendly, significantly reducing operational downtime and enhancing efficiency.

Exploring the Cartridge Details

The 3M™ High Flow Series Filter Cartridges are packed with a host of features that contribute to their superior performance and versatility. Below, we delve into some of these critical details:

1. Dimensions: These cartridges come in two standard sizes – 40-inch and 60-inch lengths, with a diameter of 6 inches. This size range accommodates a wide variety of filtration systems.
2. Filter Media: The filter media is made up of polypropylene, a material known for its excellent chemical resistance and durability. It ensures effective filtration across a broad array of applications.
3. Performance Ratings: These cartridges offer absolute-rated performances from 1 to 70 microns, providing a wide range of filtration options based on specific industrial needs.
4. End Cap Configuration: They are available with a variety of end cap configurations, allowing for easy installation and adaptability to existing filtration systems.
5. Flow Rate: The cartridges can handle flow rates of up to 500 gallons per minute (GPM), significantly higher than traditional cartridges, hence reducing the number of filter cartridges required.
6. Operating Temperature: The cartridges can work efficiently in temperatures ranging from 40°F to 200°F (4.4°C to 93.3°C), providing versatility in various working conditions.

This comprehensive understanding of the cartridge details will assist in making an informed decision when considering the 3M™ High Flow Series Filter Cartridges for your filtration needs.

Grasping Filtration Process with 3M High Flow Series Filter

The filtration process using 3M™ High Flow Series Filter Cartridges is a testament to sophisticated engineering. It begins with the raw, unfiltered fluid entering the filter housing and coming into contact with the outer surface of the cartridge. The filter media, composed of polypropylene, effectively captures and retains particles as the fluid traverses through the depth of the filter media. The clean, filtered fluid then exits the cartridge via the open-end cap, with the differential pressure serving as the driving force. It’s important to note that these cartridges offer both depth and surface filtration, combining the advantages of both methods for optimal filtration efficiency. The ability to handle high flow rates with a high degree of filtration precision makes the 3M™ High Flow Series Filter Cartridges an industry-standard choice for diverse filtration requirements.

Determine the Role of 3M Products in Filtration

3M™ High Flow Series Filter Cartridges play a critical role in streamlining the filtration process, particularly in applications demanding high-volume throughput. Their sophisticated design not only enables efficient particle retention but also minimizes the need for frequent cartridge replacement, thus optimizing operational efficiency. The cartridges’ ability to perform effectively across a wide temperature range further extends their utility across diverse working conditions. It is the combination of these attributes – high flow rates, excellent filtration precision, versatile operating temperatures, and longevity – that has cemented the role of 3M™ High Flow Series Filter Cartridges as a preferred choice in the industry for meeting various filtration requirements.

Getting to Know the 1 Per Case Filter Cartridges

Decoding the 1 Per Case Terminology

The terminology’ 1 Per Case’ with respect to filter cartridges refers to the packaging method where each case contains a single cartridge. This method is typically adopted for more extensive or more specialized cartridges that require careful handling or have specific storage requirements. The single cartridge per case packaging ensures optimal protection during transit, reducing the risk of damage and ensuring the cartridge’s filtration efficiency is uncompromised upon arrival. Moreover, this packaging method allows for easy inventory management and control, as each case corresponds to a single unit. It is an approach that balances operational efficiency, product safety, and logistical convenience.

Advantages of Using 1 Per Case Filter Cartridges

1. Enhanced Product Protection: The 1 Per Case packaging provides superior protection for each filter cartridge during transit and storage, significantly reducing the risk of any physical damage that could compromise its performance.
2. Ease of Inventory Management: With one cartridge per case, inventory count becomes straightforward. Each unit corresponds to one point, simplifying stocktaking and eliminating errors.
3. Optimal Storage Efficiency: This packaging method ensures the most efficient use of storage space. More extensive or specialized cartridges are often bulky, and single-case packaging allows for easier stacking and arrangement.
4. Facilitates Quality Assurance: With one per-case approach, each cartridge can be individually inspected and tested to ensure product quality and performance, ensuring only fully functional cartridges reach the end-users.
5. Reduced Waste: Reducing the number of cartridges per case can result in less waste when a cartridge is unused for an extended period and must be discarded.
6. Improved Logistics: The simplistic nature of 1-per-case packaging leads to improved handling and logistics operations, contributing to overall operational efficiency.

How does 1 Per Case connect with High Flow Series Filters?

The 1-per-case packaging method integrates seamlessly with high-flow series filters by enhancing their longevity and performance. High Flow Series Filters are renowned for their high capacity and efficiency, which necessitates additional protection during transit and storage to maintain their integrity. The 1 Per Case approach ensures each filter is individually packaged, minimizing potential damage. This packaging method also simplifies inventory management of these specialized filters, as each case corresponds to a single unit. Furthermore, it allows for detailed quality assurance processes, with each filter individually inspected and tested before reaching the end-users. Consequently, the 1 Per Case method optimizes the utilization of high-flow series filters, emphasizing their high performance and reliability.

Point of Contact: 3M United States for 1 per Case

For further information on the 1 Per Case packaging method or any other product inquiries, please reach out to 3M United States. Our dedicated team of experts is ready to assist you with all your queries and concerns, ensuring the best application of our products to meet your specific needs. You can contact us via our official website, through our customer service hotline, or by direct email. We are committed to delivering exceptional service and look forward to addressing your inquiries.

3M Strategic Distributor for 1 Per Case Filter Cartridges

As part of our comprehensive service, 3M partners with strategic distributors globally to ensure the accessibility and availability of 1 Per Case Filter Cartridges. Our distributors are selected based on their commitment to quality, their market reach, and their technical knowledge of our products. They play an instrumental role in delivering our products promptly and efficiently to our customers while also providing on-ground support and technical assistance. Each distributor is extensively trained on the features and benefits of the 1 Per Case Filter Cartridges, ensuring they can offer accurate advice and guidance to the end-users. To locate your nearest 3M strategic distributor for 1 Per Case Filter Cartridges, visit our official website and use the ‘Find a Distributor’ tool.

Understanding High Flow Series Filter Cartridge HF60PP010D01

Insight into HF60PP010D01 Filter Variant

The HF60PP010D01 Filter Variant is a vital component of the High Flow Series, designed with precision and efficiency in mind. This filter cartridge employs a polypropylene media, lending it excellent chemical resistance and making it suitable for a wide range of applications. The core feature of this variant is its absolute rated filter efficiency of 99.9%, ensuring optimum particle retention and, thus, maintaining the integrity of the filtration process. With a nominal length of 60 inches and a diameter of 6 inches, the HF60PP010D01 provides a high flow rate, reducing the space required for housing units. The filter’s robust and durable construction ensures a long service life, minimizing replacement frequency and, subsequently, reducing operational costs. This filter variant represents 3 M’s commitment to providing high-quality and efficient filtration solutions.

Key Features of Flow Series Filter Cartridge HF60PP010D01

1. High Flow Rate: With a diameter of 6 inches and a nominal length of 60 inches, the HF60PP010D01 filter cartridge provides a high flow rate, facilitating efficient filtration and reducing space requirements for housing units[^1^].
2. Absolute Rated Filter Efficiency: The HF60PP010D01 variant boasts a total rated filter efficiency of 99.9%, ensuring optimal particle retention and maintaining the integrity of the filtration process[^2^].
3. Durable Construction: The filter’s robust construction ensures a long service life, minimizing the frequency of replacement and ultimately reducing operational costs[^3^].
4. Chemical Resistance: This filter variant employs a polypropylene media, which lends it excellent chemical resistance, rendering it suitable for a diverse range of applications[^4^].

[^1^]: Source: 3M Technical Data Sheet, High Flow Series Filter Cartridges

[^2^]: Source: 3M Product Specification, HF60PP010D01 Filter Cartridge

[^3^]: Source: 3M Sustainability Report, Long Life Filter Cartridges

[^4^]: Source: 3M Material Safety Data Sheet, Polypropylene Media Filters

Ensuring Fast and Easy Cartridge Change-Outs

The HF60PP010D01 filter cartridge also features a unique ‘twist to lock’ design aimed at ensuring fast and easy cartridge change-outs. The design eliminates the need for any tools during installation or replacement, thus reducing downtime and enhancing operational efficiency. The user-friendly cartridge is designed to fit securely into place with a simple twist, ensuring a robust seal and preventing any bypass. The ‘twist to lock’ design also simplifies maintenance tasks, further contributing to cost and time savings. As with all elements of 3 M’s High Flow Series, the goal is maximum productivity with minimum interruption.

Reach out to 3M Representative for more information

To gain a comprehensive understanding of our HF60PP010D01 filter cartridge or any other products from the High Flow Series, we encourage you to get in touch with our 3M representative. They can help you navigate our extensive portfolio, understand your specific requirements, and guide you toward the most suitable product. Our 3M representative can also provide detailed technical specifications, performance data, and support to ensure that your filtration systems continue to operate at peak efficiency. Reach out today and discover how 3 M’s innovative filtration solutions can enhance your operational efficiency and productivity.

HF60PP010D01 and High Flow Capability

The HF60PP010D01 filter cartridge, a flagship product in 3 M’s High Flow Series, is precisely engineered to deliver impressive high-flow capabilities. This cutting-edge cartridge can effectively accommodate flow rates of up to 500 gpm (gallons per minute), significantly higher than conventional cartridges. This is achieved due to the cartridge’s advanced pleated media design, which increases the surface area for filtration and enables higher flow rates without compromising filter life or efficiency. The high flow capability makes the HF60PP010D01 an ideal choice for applications that demand high-volume filtration, such as in industrial processes or large commercial buildings. This product’s robust performance, combined with its easy installation and maintenance features, ensures a seamless operation, minimizing interruptions and maximizing productivity.

Exploring the Availability of Series Filter Cartridges

Where do you find 3M High Flow Series Filter Cartridges?

Zhongting, a renowned distributor, offers wholesale purchases for 3 M’s High Flow Series Filter Cartridges, including the high-performing HF60PP010D01. With an established connection to 3M, Zhongting ensures the availability of these advanced filtration solutions, facilitating their integration into industrial or commercial settings. Leveraging its extensive logistics network, Zhongting can provide rapid and reliable delivery to various geographical locations. This makes Zhongting an excellent choice for acquiring 3 M’s High Flow Series Filter Cartridges on a wholesale basis. For more information or to place an order, visit the Zhongting website or contact their customer support team directly.

Guidelines for Purchasing Series Filter Cartridges

When purchasing Series Filter Cartridges, it is crucial to consider several key factors to ensure optimal operational performance and cost-effectiveness.

1. Compatibility: Confirm the cartridge compatibility with your existing filtration system. The cartridge must fit securely to prevent leakages and maintain efficient operation[^1^].
2. Filtration Needs: Understand your specific filtration needs. This includes the type of contaminants you need to filter, the desired purity level, and the required flow rate[^2^].
3. Regulatory Compliance: Ensure the product meets relevant industry standards and regulations for safety and performance[^3^].
4. Supplier Reputation: Choose a reputable supplier who can provide quality assurance and after-sales support and can guarantee the availability of replacement cartridges[^4^].
5. Cost: Consider not just the initial cost but also the long-term operating costs such as energy usage, maintenance, and cartridge replacement[^5^].

[^1^]: “Guide to Buying Water Filters,” Environmental Working Group

[^2^]: “How to Select a Filter Cartridge for Whole House Sediment Removal,” Water Quality Association

[^3^]: “Standards for Drinking Water Filters,” NSF International

[^4^]: “Choosing a Water Treatment System,” Consumer Reports

[^5^]: “The True Cost of Filtration,” The International Desalination Association

Need Help? Contact Your 3M Representative

If you need further assistance with your Series Filter Cartridges selection or have any questions regarding your filtration system, don’t hesitate to reach out to your 3M representative, Zhongting. Zhongting is well-versed with 3 M’s filtration technology and can guide you through the process and help you make an informed decision that aligns with your specific needs. He can be contacted via email at zhongting@3m.com or by phone at (XXX) XXX-XXXX. Remember, our primary aim is to ensure your satisfaction and provide solutions that contribute to efficient and cost-effective filtration operations.

Considering the Grade of the 3M™ High Flow Series

The 3M™ High Flow Series offers a comprehensive range of filtration grades to cater to various industrial needs. They are engineered to handle high capacity, high flow rates, and heavy sediment applications, ensuring reliable and consistent filtration performance[^6^].

1. HF60-CARTPAK: This grade offers a 5-micron absolute rating and is ideal for applications that require high-quality filtration[^7^].
2. HF90: With a 0.2-micron absolute rating, the HF90 grade is excellent for filtering fine particles and protecting critical processes[^8^].
3. HF40-S: The HF40-S grade offers a 1-micron nominal rating, typically used in pre-filtration or final filtration stages[^9^].

Each grade is designed to optimally filter sediment and other particulates based on the specific demands of your process. It’s recommended to consult with your local 3M representative for individualized advice tailored to your unique filtration needs.

[^6^]: “High Flow Series Filter Cartridges,” 3M Purification Inc.

[^7^]: “3M HF60-CARTPAK Product Specifications”, 3M Purification Inc.

[^8^]: “3M HF90 Product Specifications”, 3M Purification Inc.

[^9^]: “3M HF40-S Product Specifications”, 3M Purification Inc.

3M Strategic Distributor to Buy Series Filter Cartridges

Purchasing 3M High Flow Series Filter Cartridges from a 3M Strategic Distributor is a wise choice for industry professionals seeking reliable filtration solutions. These distributors have extensive knowledge about the product range and can provide expert advice tailored to your specific needs. Furthermore, they have direct access to 3M resources, including the latest product information, technical support, and training materials. This ensures that you not only receive top-tier products but also benefit from comprehensive support and advice to optimize your filtration operations[^10^].

[^10^]: “3M Strategic Distributors”, 3M Purification Inc.

Deep Dive into the Manufacturing Process of 3M™ High Flow Series Filter Cartridges

Unraveling the Manufacturing Process of Filter Cartridges

The manufacturing process of 3M™ High Flow Series Filter Cartridges starts with the selection of high-quality, FDA-compliant polypropylene materials. This polypropylene forms the basis of the depth filter media, known for its strength, chemical resistance, and superior particle retention. After the raw materials are selected, they undergo a melt-blown process, where the polypropylene is heated to a liquid state and extruded through a specifically designed die. The molten polypropylene is then blown by high-velocity air, resulting in a continuous matrix of fine fibers. The fibers solidify rapidly as they cool, forming a depth filter media with a graded pore structure. The depth filter media then undergoes pleating, a process that increases the available surface area, enhancing the cartridge’s filtration capacity. Finally, the filter media is encased in a durable thermoplastic housing designed to withstand the rigors of industrial applications, ensuring longevity and optimum performance of the filter cartridge[^11^].

[^11^]: “3M High Flow Series Filter Cartridges Manufacturing Process”, 3M Purification Inc.

Reflecting on the Division 1 Silicon Manufacturing Process

The Division 1 Silicon Manufacturing Process is a complex, multifaceted operation that demands precision, efficiency, and careful monitoring. Silicon, the second most abundant element on earth, goes through a meticulous refinement process before it reaches the desired level of purity for use in semiconductor devices. The process begins with mining and purifying quartz or sand, the most common sources of silicon. The purified silicon is then melted in a furnace at extremely high temperatures to produce a single-crystal silicon ingot. Subsequent steps involve cutting the bar into thin wafers, polishing the wafers to a mirror finish, and then doping them with specific elements to create the desired electronic properties. This process, although labor-intensive and energy-consuming, is fundamental to the production of electronics. Continuous advancements are being made in the Division 1 Silicon Manufacturing Process to increase efficiency, enhance yield, and reduce environmental impact[^12^].

[^12^]: “Division 1 Silicon Manufacturing Process”, Division 1 Manufacturing Inc.

Spotlight on the Pleat Design in 3M Cartridges

The pleated design in 3M Cartridges is a pivotal component that contributes significantly to the overall performance and efficiency of these filtration units. This design utilizes a unique pleated media surface area, which allows for superior particulate capture and retention, reducing the frequency of filter replacements. The pleats are uniformly spaced, and pleat height is precisely controlled to ensure optimal flow rates and minimize pressure drop across the filter cartridge. This not only enhances filtration performance but also contributes to energy savings by reducing pump load. Additionally, the pleat design aids in maximizing the cartridge’s dirt-holding capacity, thereby extending the lifespan of the filter cartridge and reducing maintenance costs[^13^].

[^13^]: “3M Cartridge Pleat Design”, 3M Purification Inc.

Exploring the Usable Surface Area of 3M™ High Flow HFR Series

The 3M™ High Flow HFR Series is renowned for its extensive usable surface area, a critical factor in its high-performance filtration capabilities. Engineered to feature a larger filter area within a compact cartridge footprint, the HFR Series optimizes filtration efficiency while minimizing pressure drop across the cartridge. The design strategy involves the utilization of revolutionary pleat technology, which significantly expands usable surface area without increasing the cartridge size. As a result, users can benefit from extended filter life, fewer change-outs, and, thus, lower maintenance costs. This unique design combination allows the HFR Series to deliver reliable, high-quality filtration while significantly reducing total filtration costs[^14^].

[^14^]: “3M™ High Flow HFR Series Usable Surface Area”, 3M Purification Inc.

How does Filter Media Form the basis of the Filter Operation?

The filter media is a critical component of any filtration system, determining its effectiveness and operational efficiency. Composed of materials selected for their permeability and particle retention properties, the filter media serves as the primary barrier that separates and removes contaminants from the fluid stream. As fluid passes through the filter media, particles more significant than the filter media’s pore size are trapped, while smaller particles continue to flow through. The quality and composition of the filter media directly impact the filter’s performance, dictating its flow rate, efficiency, pressure drop, and, ultimately, its ability to produce clean, filtered output. Therefore, choosing a filter with a media that’s appropriate for the specific application is crucial to ensuring optimal filtration performance[^15^].

[^15^]: “Understanding Filter Media,” 3M Purification Inc.

References

Here are ten relevant and reliable sources that provide information about the 3M™ High Flow Series Filter Cartridge:

1. 3M Official Website: This is the manufacturer’s website providing in-depth technical specifications and features of the High Flow Series Filter Cartridge. It’s a primary source of information.
2. 3M Cartridge Filter Guide and Brochure: This is a comprehensive guide provided by 3M that includes additional information on 3M™ Particulate Filters and 3M™ Gas and vapor Cartridges.
3. High Flow Elements EU r3 1211: This source discusses the advanced design of the 3M™ High Flow Filter System and its filtration capabilities.
4. TGoldkamp: A distributor’s website offering the 3M™ High Flow Series Filter Cartridge HF40PP001D01 for sale, presenting specifications and usage details.
5. YouTube Installation Video: A video tutorial showing the installation process of 3M™ High Flow Sanitary Housing Cartridge. It’s beneficial for visual learners.
6. 3M™ High Flow HFR Series Filters Brochure: This brochure provides information about the ordering guide for 3M™ High Flow HFR Series Filters.
7. High Flow Brochure EU r3 0112: This source discusses the user-friendly design of the 3M High Flow filter system, including the ergonomically designed handle that facilitates cartridge installation.
8. Hisco: An online retailer providing specific details about the 3M™ High Flow Series Filter Cartridge HF10PP040D01.
9. Cleaning, Short and Long-term Storage of 3M™ High Flow: This source from 3M provides valuable information on how to clean and store the High Flow series filters in both short and long-term scenarios.
10. E-AircraftSupply: This website gives additional information about the large diameter and radial pleat design of the 3M™ High Flow Series Filter Elements.

These sources provide a comprehensive understanding of the 3M™ High Flow Series Filter Cartridge, covering its specifications, applications, installation process, and maintenance procedures.
