The Pall High Flow Filter Cartridge stands as a testament to the advances in filtration technology. With a unique design that allows for a high flow rate and excellent particulate holding capacity, this cartridge is engineered for efficiency and effectiveness. Manufactured by Pall Corporation, a global leader in Filtration, separation, and purification, the High Flow Filter Cartridge is widely used in a range of industries due to its robust performance and longevity. This guide aims to delve into the technical aspects of the Pall High Flow Filter Cartridge, illustrating its operational principles, benefits, and critical applications.

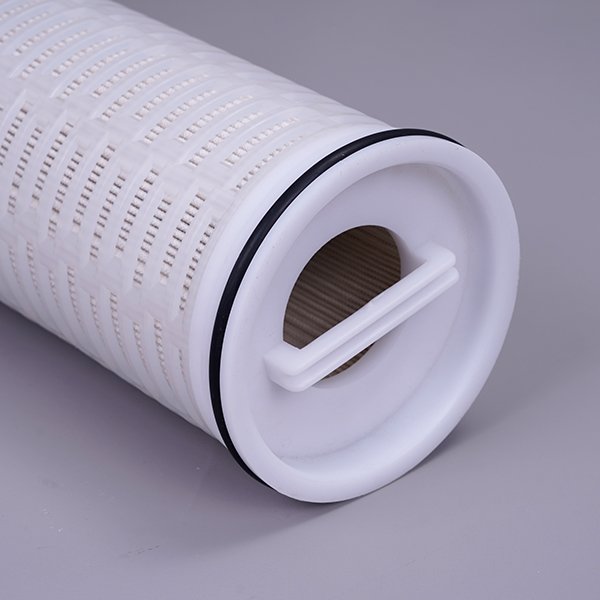

Understanding High-Flow Filter Cartridges
What are high-flow filter cartridges?
High-flow filter cartridges are advanced filtration devices designed to handle large volumes of fluid while maintaining optimal filtration efficiency. They feature a pleated design, which significantly increases the surface area for Filtration, allowing for the removal of a more significant amount of contaminants and particles. High-flow filter cartridges are recognized for their ability to maintain high flow rates, often surpassing those of traditional filter cartridges. This is accomplished without sacrificing the quality of Filtration, making them an ideal choice for applications requiring both high throughput and stringent filtration standards. Industries such as power generation, petrochemicals, and water treatment frequently utilize these cartridges due to their reliable performance and cost-effectiveness.
Role of high-flow filters in high-flow applications
High-flow filters play a pivotal role in high-flow applications, offering several key advantages:
- Enhanced Efficiency: Thanks to their increased surface area and pleated design, high-flow filters can process large volumes of fluid at high speed without compromising filtration quality. This efficiency proves instrumental in applications where quick Filtration is paramount.
- Cost-Effective: High-flow filters require fewer filter change-outs due to their greater particulate holding capacity. This results in lower operational costs, making them a cost-effective solution for industries.
- Versatility: High-flow filters are compatible with a variety of fluid types, making them adaptable to a wide range of industrial applications, from oil and gas processing to water treatment.
- Robust Performance: The robust construction of high-flow filters guarantees reliable performance, even under strenuous conditions, contributing to their longevity and reducing the need for frequent replacements.
- Improved Safety: By reducing the number of filters required, high-flow filters minimize workers’ exposure to potentially hazardous substances during filter change-outs, contributing to a safer work environment.
High-flow filters’ unique combination of efficiency, cost-effectiveness, robustness, and safety make them an optimal choice for high-flow applications in various industries.
The importance of the large format filters
Large format filters are fundamental in high-flow applications, primarily because of their ability to manage substantial fluid volumes with greater efficiency. Their size facilitates a larger filtration area, which significantly enhances the filter’s dirt-holding capacity. As a result, these filters have extended service life, reducing the frequency of change-outs and maintenance costs. The large format design also ensures superior mechanical strength and durability, enabling these filters to withstand high-pressure differentials and demanding operational conditions. This robust performance sets the stage for consistent, high-quality Filtration, which is crucial in industries where even slight variations in fluid purity can impact product quality or equipment performance. Thus, the importance of large format filters in high-flow applications cannot be overstated.
How does the pleated polypropylene depth structure work?
The pleated polypropylene depth filter operates on the principles of depth filtration, utilizing a complex matrix structure to remove particles and impurities from fluids. The polypropylene material is thermally bonded into a pleated design, which maximizes the surface area available for Filtration. As fluid flows through the filter, particles are trapped within the depth of the filter matrix, not just on the surface. This trapping mechanism allows for more excellent dirt-holding capacity and longer filter life. The pleated design further enhances the filter’s efficiency by providing a higher flow rate and lower pressure drop compared to traditional depth filters. As a result, pleated polypropylene depth filters offer superior filtration performance, proving beneficial in various high-flow applications where high purity and efficiency are required.
Understanding the inside-to-outside flow pattern
The inside-to-outside flow pattern in a filter refers to the direction of fluid movement during the filtration process. The fluid enters the filter from the inside, flows through the filter media, and exits from the outside. This flow configuration is particularly beneficial for pleated polypropylene depth filters as it optimizes the use of the filtration surface area, leading to enhanced dirt-holding capacity and longer filter life. Moreover, it supports efficient particle capture and retention, as particles are trapped within the depth of the filter matrix. Consequently, this flow pattern is instrumental in ensuring high filtration efficiency, especially in high-flow applications demanding high purity levels.
Exploring the Key Features of Pall High-Flow Filter Cartridges
Multipleat® High Flow Series: An Overview
The Multipleat® High Flow Series, developed by Pall Corporation, is a sought-after solution for high-flow filtration applications. Engineered with advanced pleated polypropylene media, these filters demonstrate exceptional dirt-holding capacity and efficient particle capture. They are designed to operate in an inside-to-outside flow pattern, capitalizing on the full use of the filter’s surface area and lengthening filter life. Noteworthy features include a high flow rate, low-pressure drop, and consistent flow performance, even at high differential pressures. Available in a wide range of lengths and retention ratings, the Multipleat® High Flow Series caters to various industrial applications, from the food and beverage industry to power generation and electronics, delivering high purity levels and operational efficiency.
The Significance of Vector™ High Flow Elements
Another remarkable product in the lineup of high-flow filtration solutions is the Vector™ High Flow Element series. These elements, also developed by Pall Corporation, are renowned for their robust and reliable performance, ensuring high productivity and minimized downtime in industrial processes. Characterized by their innovative design, these elements feature a high-flow filtration system that effectively manages large volumes of liquids. The Vector™ series is distinguished by its commendable dirt-holding capacity and excellent particle retention, contributing to enhanced process efficiency and product quality. A pivotal factor in their popularity is the ability to operate under varying pressure conditions while maintaining consistent performance. This makes them a versatile solution for diverse industries ranging from food and beverage production to the pharmaceutical sector, thereby underscoring the profound significance of Vector™ High Flow Elements in the realm of high-flow applications.
The Unique Design of the Pleat and O-ring
The Pleat and O-ring design is a distinctive feature of advanced filtration systems. The pleated design maximizes the filter surface area, allowing for greater dirt-holding capacity and prolonging the filter’s lifespan. It ensures efficient particle retention and optimal flow rates, contributing to the overall operational efficiency of the system. The O-ring, on the other hand, provides a secure seal to prevent bypass and leakage, ensuring that all fluid passes through the filter medium for consistent, high-quality Filtration. Constructed from resilient materials, the O-ring can withstand varying pressure conditions, further enhancing the performance and reliability of the filtration system. The combination of a pleated design and an O-ring seal contributes to the high performance and versatility of Pall Corporation’s filtration solutions, catering to the demanding needs of diverse industrial applications.

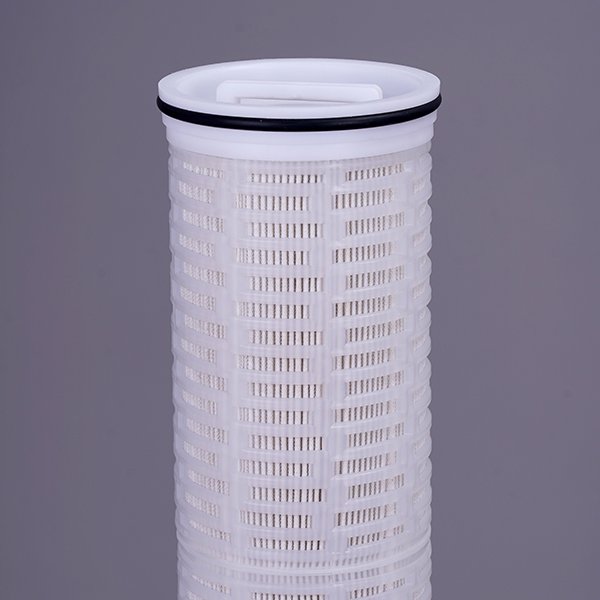

Filtration Grades and their Impact on Performance
Filtration grades significantly influence the performance of filter systems, determining their efficiency, durability, and suitability for specific applications. The following is an overview of common filtration grades and their impact on performance:
- Coarse Filtration (10 – 1000 micrometers): Generally used to remove large particles and impurities, coarse Filtration is ideal for preliminary filtration stages, protecting finer filters downstream. However, it is not suitable for applications requiring high purity levels.
- Medium Filtration (1 – 10 micrometers): Balancing efficiency and flow, medium Filtration is commonly used in applications such as water treatment and food and beverage processing. It effectively removes smaller particles but might not be adequate for applications demanding ultra-pure fluids.
- Fine Filtration (0.1 – 1 micrometers): Fine Filtration provides a higher level of purity by eliminating microscopic particles. It is often employed in pharmaceutical and laboratory applications. However, this grade might result in lower flow rates due to its tighter filtration medium.
- Ultra-Fine Filtration (<0.1 micrometers): Used in critical applications such as semiconductor manufacturing and sterile Filtration, ultra-fine Filtration delivers the highest purity levels. The trade-off is typically slower flow rates and more frequent filter changes due to the small pore size.
These filtration grades must be carefully selected based on the specific requirements of the application to ensure optimal performance and efficiency.
Features of Filter Housing in High-Flow Cartridges
- Material Durability: High-flow cartridges often utilize filter housings made from robust materials, such as stainless steel or reinforced plastics, which stand up to high pressures and extreme temperatures.
- Large Diameter Design: The larger diameter of high-flow filter housings allows for higher flow rates and longer service life.
- Ease of Installation and Replacement: Many high-flow cartridge housings are designed for quick and easy installation and replacement, contributing to operational efficiency.
- Secure Sealing Mechanism: To prevent leakage and ensure that all fluid passes through the filter, specific sealing mechanisms like O-rings or gaskets are essential in high-flow cartridge housings.
- Configurable Inlet/Outlet Positions: Some filter housings offer configurable inlet and outlet positions for flexibility in system design.
- Compatibility with Various Cartridges: The housings are designed to accommodate a wide range of cartridge types and sizes, enabling their use in a variety of applications.
- Provision for Differential Pressure Gauges: Filter housings may include ports for the installation of differential pressure gauges to monitor filter performance and indicate when replacement is necessary.
Specification Details of High-Flow Filter Cartridges
Interpreting filter grade and µm specifications
Filter grade and micron (µm) specifications are crucial parameters in the design and selection of high-flow filter cartridges. Here is a brief explanation of these key terms:
- Filter Grade: This refers to the classification of filters based on their efficiency in capturing particles of specific sizes. Filter grades are usually denoted as nominal or absolute. A slight filter grade signifies that the filter can capture a certain percentage (usually 85% or more) of particles of a stated size. On the other hand, an absolute filter grade denotes that the filter can remove virtually all (99.9%) particles of a specified size.
- Micron (µm) Specifications: Micron specifications provide a measure of the pore size of the filter media. A micron (µm) is one-millionth of a meter. The smaller the µm specification, the finer the Filtration. For instance, a 0.2 µm filter is capable of trapping smaller particles than a 10 µm filter. Careful consideration of the µm specification is essential to ensure the filter effectively removes the target contaminants without impeding the flow rate.
Understanding the cartridge length and large diameter
- Cartridge Length: The length of a filter cartridge impacts the filter’s capacity and the differential pressure. Longer cartridges offer more surface area for Filtration, which generally translates to a higher holding capacity for contaminants and longer service life. However, it also increases the pressure drop across the filter, which can affect system performance. Cartridges are available in various lengths to accommodate different system requirements.
- Large Diameter: A cartridge’s diameter also plays a crucial role in determining its performance. Larger diameters can support higher flow rates due to the increased surface area for Filtration. However, they may also require more robust housing and support structures to handle the increased weight and flow forces. In addition, larger filters might result in higher initial costs but could potentially offer savings in terms of reduced filter changes and maintenance.
About the Absolute-rated Filters
Absolute-rated filters have a defined micron size at which they can trap a certain percentage of particles. They are often used in critical applications where a specific degree of Filtration is required. For instance, a filter with an absolute rating of 0.2 µm will catch 99.9% of particles that are 0.2 µm or more significant. This ensures a consistent level of Filtration throughout the filter’s service life. Keep in mind that while absolute-rated filters offer precise Filtration, they may also have a higher initial cost and can cause a more significant pressure drop due to their intense particle capture ability. Remember to carefully assess your filtration needs and system capabilities before opting for an absolute-rated filter.
The Role of Polypropylene in High-Flow Filters
Polypropylene, a versatile polymer, is extensively utilized in the manufacture of high-flow filters due to its inherent properties. Not only is it chemically resistant to most acids, bases, and solvents, making it ideal for a broad range of applications, but it also exhibits excellent thermal stability, ensuring a robust performance even at elevated temperatures. Furthermore, polypropylene’s low density grants the filters a lightweight, contributing to ease of installation and replacement. Ultimately, the use of polypropylene in high-flow filters enhances their efficiency, durability, and overall performance, making them a cost-effective solution in various industrial filtering processes.
The importance of Ethylene Propylene O-ring
Ethylene Propylene O-rings, often referred to as EPDM O-rings, are integral components in various industrial applications due to their exceptional heat, ozone, and weather resistance. Empowered by their durable elastomeric structure, these O-rings withstand significant temperature fluctuations, making them suitable for outdoor applications with wide temperature ranges. Moreover, their robust chemical resistance to a wide variety of substances, including water, steam, dilute acids, alkalies, and silicone oils and greases, extends their applicability to challenging environments. However, it is crucial to note that they are not recommended for use with petroleum oils, fuels, or certain hydraulic fluids owing to their incompatibility with these substances. In summary, the inclusion of Ethylene Propylene O-rings in industrial equipment can significantly enhance the equipment’s longevity and operational efficiency, provided they are utilized in appropriate environments.

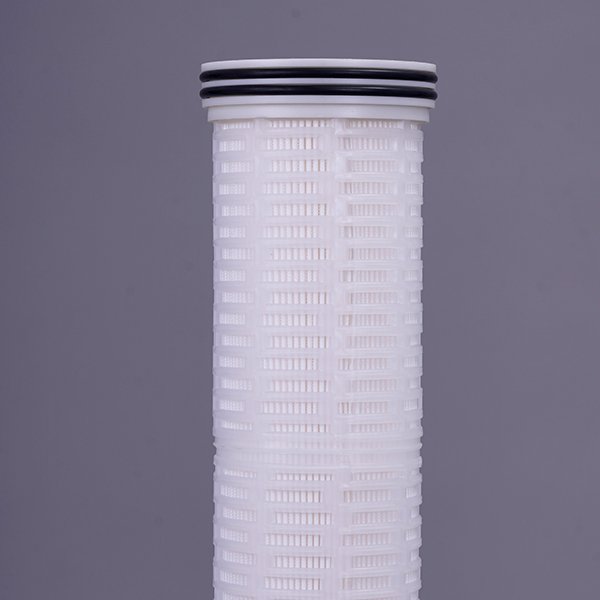

Guide to Ordering Pall High-Flow Filter Cartridges
How do you order Pall High Flow Filter Cartridges?
To order Pall High Flow Filter Cartridges, please get in touch with us at Zhongting. Our dedicated team of experts is at your service, ready to guide you through the selection process, ensuring you choose the correct cartridge that aligns with your specific industrial filtering needs. You can reach us through our official email, our customer service hotline, or by submitting an inquiry via our website’s contact form. Upon receiving your request, we will promptly respond with detailed product information, pricing, and delivery options. At Zhongting, we prioritize customer satisfaction and strive to provide high-quality products with efficient and professional service.
Cartridge Selection Based on Filtration Requirement
In selecting the appropriate Pall High Flow Filter Cartridge, you must consider the specific filtration requirements of your application. Here is a guideline on how to make the proper selection:
- Particle Size: Determine the size of the particles that need to be filtered out. This will help in deciding the micron rating of the filter cartridge.
- Flow Rate: Evaluate the flow rate of your process fluid. High flow rates may require more extensive or multiple filter cartridges.
- Chemical Compatibility: Ensure the materials of the cartridge are compatible with the process fluid. Certain chemicals can degrade certain cartridge materials.
- Differential Pressure: Check the maximum differential pressure the filter cartridge can withstand. This relates to the pressure difference across the filter during operation.
- Temperature Range: Consider the operating temperature of your process. Some cartridge materials may not perform adequately at extreme temperatures.
- Regulatory Compliance: Make sure the filter cartridge meets relevant industry standards and regulations, particularly if operating in sectors like food and beverage or pharmaceuticals.
By carefully considering these factors, you can make an informed selection that maximizes the efficacy and lifespan of your Pall High Flow Filter Cartridge.

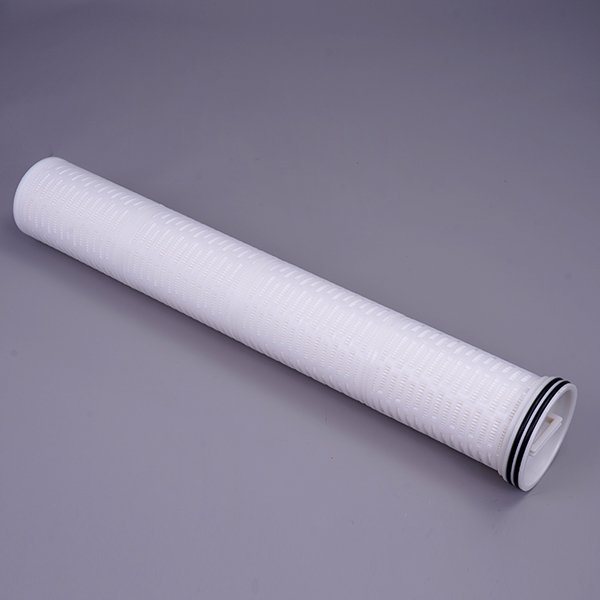

Understanding the Ordering Information for High Flow Filters
When ordering your High Flow Filter, it’s essential to understand the associated ordering information to ensure you’re choosing the best fit for your application. The ordering code typically comprises several sections, each corresponding to a specific feature of the filter:
- Product Series: This represents the type of cartridge you’re selecting. For example, it might denote whether the filter is designed for high efficiency or high dirt-holding capacity.
- Cartridge Length: The length of the cartridge impacts its area for Filtration, and it must be compatible with your filter housing. Typical sizes include 10″, 20″, 30″, or 40″.
- End Cap Style: The end cap style must match your filter housing to ensure a proper seal. There are several types, including DOE (Double-Open-End), SOE (Single-Open-End), and others.
- Micron Rating: This specifies the size of the particles that the filter can remove, as determined by your filtration requirements.
- Material: The code will also denote the fabric of the filter cartridge, which must be chemically compatible with your process fluid.
- Gasket/O-ring Material: The gasket material should also be compatible with your process fluid to ensure a good seal and long lifespan.
By understanding each section of the ordering code, you can ensure that the High Flow Filter you select is fully tailored to the needs of your application.
Finding a reliable Pall Distributor
When seeking a reliable Pall distributor, it is crucial to consider several key factors to ensure you receive quality products and services. Firstly, verify the distributor’s authenticity by confirming their official partnership with Pall Corporation. This information is often displayed on their website or can be confirmed by contacting Pall directly. Next, check the distributor’s industry experience and track record. A distributor with a strong history in your specific industry will better understand your needs and offer appropriate filter solutions.
Additionally, evaluate their customer service quality. A good distributor will offer prompt and knowledgeable responses, guiding you through the selection and purchasing process. Finally, consider their logistical capabilities. A distributor with a robust supply chain will ensure timely delivery, minimizing any potential disruption to your operations. By thoroughly evaluating these factors, you can partner with a Pall distributor that not only meets but exceeds your expectations.
Steps to Contact Your Pall for Queries
- Visit the Official Website: Navigate to the official Pall Corporation website. This should be your first point of contact for reliable and accurate information.
- Find the ‘Contact Us’ Page: Look for the ‘Contact Us’ link, usually located at the top or bottom of the homepage. Click on this link to access the contact page.
- Choose the Appropriate Contact Method: Pall Corporation has several contact methods available, including phone, email, and an online inquiry form. Choose the way that best suits your needs.
- Provide Clear Information: When contacting Pall, ensure you provide clear and concise information about your query. Include relevant details such as product type, application, and any specific issues you’re experiencing.
- Submit Your Query: Once you’ve filled out the necessary information, submit your query. A representative from Pall Corporation should respond within a reasonable timeframe.
- Follow-up: If you don’t receive a response within the expected timeframe, don’t hesitate to follow up. Persistence can often be vital in resolving your query.
Maintenance Practices for High-Flow Filter Cartridges
Tips for cleaning and maintaining filter cartridges
- Routine Inspection: Regular visual checks of the filter cartridges are essential. Look for any signs of wear or damage, such as cracks or deformities.
- Proper Cleaning: Use a soft, non-abrasive cloth and a mild cleaning solution to clean the external surface of the cartridges. Avoid using harsh chemicals that could damage the filter media.
- Avoid High-Pressure Washing: High-pressure washing can damage the delicate filter media and the structural integrity of the cartridges. Instead, use low-pressure or manual cleaning methods.
- Monitor Pressure Drop: Keep an eye on the pressure drop across the filter. A significant increase may indicate that the cartridge is clogged and needs cleaning or replacement.
- Scheduled Replacement: Even with regular cleaning, filter cartridges will eventually wear out and need to be replaced. Follow the manufacturer’s recommendations for replacement intervals.
- Proper Disposal: Dispose of used filter cartridges responsibly. Some materials may be recyclable, while others need to be disposed of as industrial waste. Check local regulations for proper disposal methods.
- Storage: Store unused cartridges in a clean, dry place to prevent contamination. Ensure they are sealed in their original packaging until ready for use.
Replacing the Pleated Cartridge with an Inside-to-Outside Flow
To replace a pleated cartridge with an inside-to-outside flow pattern, start by turning off the system and depressurizing the filter housing. Remove the housing cap and extract the old cartridge. Before installing the new cartridge, verify the cleanliness of the accommodation and the integrity of the sealing surfaces. Insert the new pleated cartridge, ensuring the inside-to-outside flow pattern aligns correctly. Replace the housing cap and re-pressurize the system. After installation, it’s essential to monitor the system for any changes in pressure drop or flow rate. These parameters indicate the effectiveness of the cartridge and can signal if the new cartridge is functioning as expected.
Adhering to Housing Guidelines when Handling Filters
When handling filters, adherence to the housing guidelines is crucial to ensure optimal operation and longevity of the filter system. These guidelines typically encompass the following:
- Preparation: Before touching the filter, make sure your hands are clean and free of any substances that might contaminate the filter. Utilize appropriate personal protective equipment (PPE) as specified by your organization’s safety protocols and the housing manufacturer’s guidelines.
- Installation: Always handle the filters by the ends and avoid touching the pleated surface to prevent possible damage or contamination. Ensure the filter is correctly oriented within the housing following the arrow markers indicating the flow direction.
- Sealing: Check the O-rings and gaskets for any signs of wear, tear, or deformation. Replace them if necessary to ensure a tight seal and prevent leakage. Lubricate the O-rings with a thin layer of food-grade silicone lubricant before inserting them into the housing.
- Closing the Housing: Tighten the housing cap by hand or using a suitable tool, if necessary. However, avoid overtightening as it could cause damage to the housing or the filter.
- Post-Installation Check: After installation, slowly start the system and check for leaks. Monitor the pressure gauges to ascertain the system is functioning within the recommended operating range.
By strictly adhering to these guidelines, you can ensure optimal filter performance, extend the life span of the filter system, and maintain safe operation conditions.
Checking the o-ring material for signs of wear
Inspecting the O-ring material for signs of wear is a critical step in maintaining the integrity of the filtration system. Wear and tear of O-rings can be a result of prolonged use, exposure to harsh chemicals, or operating under extreme temperature conditions. Physical signs of wear may include cracking, flattening, or deformation of the O-ring shape.
To check for wear, perform a detailed visual inspection of the O-ring. If it retains its original, round shape with a smooth surface, it is likely in good condition. However, if you observe any signs of brittleness, discoloration, cuts, or abrasions, it is a clear indication that the O-ring needs replacement. Apart from visual inspection, it is also recommended to feel the O-ring with clean hands. If it feels too hard, too soft, or sticky, these could also be signs of degradation.
Remember, using a worn-out O-ring can lead to leaks, reduced filtration efficiency, and potential system failure. Therefore, the importance of regular O-ring inspection and timely replacement cannot be overstated.
Ensuring a high flow rate by timely replacement of filters
Maintaining a high flow rate in your filtration system is directly linked to the timely replacement of filters. Over time, filters become clogged with particulates, which not only impacts the flow rate but also reduces the system’s overall efficiency. The recommended replacement frequency will depend on the type of filter and the conditions of operation. Still, as a rule of thumb, filters should generally be replaced every three to six months.
Using pressure gauges can provide an early indication of a clogged filter. A significant drop in downstream pressure or an increase in upstream pressure usually signifies a filter that needs replacing. Prioritize this process to avoid unnecessary strain on the system, which can lead to more severe damage. Remember, proactive filter replacement is not only about sustaining a high flow rate but also about prolonging the lifespan of the entire system.
