High Efficiency PTFE Pleated Filter Cartridge for Global Use

What is a PTFE Pleated Filter Cartridge?

What is a PTFE Pleated Filter Cartridge?

A Polytetrafluoroethylene (PTFE) Pleated Filter Cartridge is a specialized filtration device designed for critical applications with stringent purity requirements. Made from hydrophobic PTFE membrane media, these cartridges offer superior performance with high flow rates and low-pressure drops. They are widely used in industries such as pharmaceuticals, food and beverages, and electronics due to their ability to remove particles, microorganisms, and pyrogens from liquids and gasses. The pleated design increases the surface area of the filter, thereby amplifying its capacity and extending its lifespan. These cartridges are known for their chemical resistance, thermal stability, and ability to withstand extreme pH conditions.

Overview of PTFE membrane and pleated filter technology

The PTFE membrane is highly valued for its unique properties, including hydrophobicity and chemical resistance. It offers reliable performance in harsh conditions and is suitable for high-temperature applications. Pleated filter technology maximizes filtration efficiency and extends cartridge life by increasing surface area and contaminant holding capacity. This design ensures a consistent flow rate and energy efficiency. Together, PTFE membrane and pleated filter design create high-performance filtration solutions for critical applications.

Benefits and applications of PTFE pleated filter cartridges

Advantages of PTFE Pleated Filter Cartridges

  1. High Efficiency: The pleated design increases the filter’s surface area, leading to highly efficient filtration.
  2. Long Lifespan: Due to their high contaminant holding capacity, these cartridges exhibit prolonged service life, reducing replacement costs.
  3. Chemical Resistance: PTFE is resistant to a wide range of chemicals, making these filters suitable for diverse applications.
  4. Thermal Stability: PTFE filters can endure extreme temperatures without compromising their performance.
  5. Consistent Flow Rates: The pleated design ensures steady flow rates, contributing to process consistency and energy efficiency.

Applications of PTFE Pleated Filter Cartridges

  1. Pharmaceutical Industry: Used in the filtration of process fluids, solvents, and gases to ensure product purity.
  2. Food and Beverage Industry: Employed in the filtration of water, beverages, and edible oils to remove contaminants.
  3. Electronics Industry: Utilized in the purification of chemicals used in wafer fabrication processes.
  4. Chemical Industry: Used in the filtration of acids, bases, and solvents.
  5. Aerospace and Defense: Ideal for air and gas filtration in demanding environments.

Comparison with other filter cartridge types

When compared to other filter cartridges, such as Polypropylene (PP) and Glass Fiber (GF), PTFE pleated filter cartridges stand out in both efficiency and versatility.

  1. PTFE vs. PP Filter Cartridges: PP filter cartridges are widely used due to their economic feasibility and broad chemical compatibility. However, PTFE cartridges surpass them in terms of temperature endurance and filtration efficiency. While PP filters can handle temperatures up to 80°C, PTFE can withstand up to 260°C. Furthermore, the pleated design of the PTFE cartridge facilitates higher surface area, ensuring superior retention of particles.
  2. PTFE vs. GF Filter Cartridges: GF cartridges are known for their high dirt-holding capacity and low pressure drop. Despite this, PTFE pleated cartridges outperform them in terms of chemical resistance and thermal stability. GF filters have limited chemical compatibility and can tolerate temperatures only up to 170°C, whereas PTFE exhibits broad chemical resistance and can function effectively in extreme temperatures.

Overall, while PP and GF filters have their own merits, PTFE pleated filter cartridges provide enhanced performance and versatility, making them suitable for a broader range of applications.

Considerations for selecting PTFE pleated filter cartridges

When selecting PTFE pleated filter cartridges, several factors should be taken into account to ensure optimal performance and longevity.

  1. Compatibility with Fluid: The cartridge should be compatible with the fluid it will be filtering. PTFE is typically resistant to a wide range of chemicals, but it’s essential to confirm this based on the specific fluid in your process.
  2. Flow Rate: The flow rate of your process can affect the cartridge’s performance. A high flow rate may require a larger filter surface area or multiple filter cartridges to maintain filtration efficiency.
  3. Operating Temperature: As PTFE can withstand extremely high temperatures, ensure that the operating temperature of your process is within the filter’s acceptable range.
  4. Particle Size: The size of the particles to be filtered also plays a significant role. PTFE pleated filter cartridges come in various pore sizes, so it’s vital to choose one that effectively removes the contaminants from your fluid.
  5. Cost: While PTFE cartridges may be more costly initially, their superior performance and durability often lead to long-term cost savings. Consider the total cost of ownership, including replacement and maintenance costs, rather than just the initial purchase price.

By considering these factors, you can select a PTFE pleated filter cartridge that best meets your filtration needs.

Installation and maintenance best practices

To ensure the longevity and optimal performance of your PTFE pleated filter cartridges, adhering to the best practices for installation and maintenance is paramount.

Installation: The cartridge should be installed with care, ensuring a proper fit within the housing to eliminate any potential bypass of unfiltered fluid. Prior to installation, inspect the cartridge for any visible damage. Once installed, it is advisable to flush the system initially to remove any possible residual manufacturing debris.

Maintenance: Regular maintenance is critical to the performance of your filter cartridge. Monitor your system’s pressure differential to determine when a cartridge change-out is necessary. If an unexpected increase in differential pressure or decrease in flow rate is observed, it might indicate that the cartridge is clogged and needs to be replaced.

Cleaning and Sanitization: Some PTFE pleated filter cartridges can be cleaned and reused. Cleaning procedures vary based on the specific contaminants; commonly used methods include backwashing, ultrasonic cleaning, or chemical cleaning. Always refer to the manufacturer’s instructions for appropriate cleaning procedures.

Storage: If cartridges are to be stored for prolonged periods, they should be kept in their original packaging in a clean, dry place away from direct sunlight and extreme temperatures.

Remember, a well-maintained filtration system not only provides superior filtration performance but also contributes to the overall operational efficiency of your process.

How Does a PTFE Pleated Filter Cartridge Work?

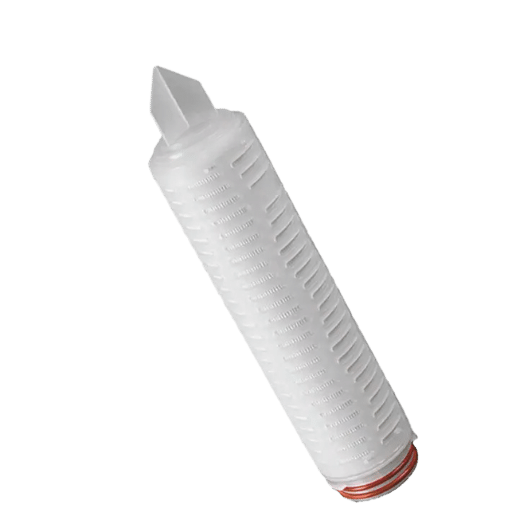

How Does a PTFE Pleated Filter Cartridge Work?

Understanding the filtration process with PTFE membrane

PTFE, or PolyTetraFluoroEthylene, is a membrane used in pleated filter cartridges for its exceptional characteristics: high thermal stability, chemical resistance, and low friction coefficient. It operates on the principle of surface filtration, effectively removing contaminants while maintaining a high flow rate. The pleated design increases surface area and dirt-holding capacity, making PTFE pleated filter cartridges ideal for demanding filtration applications.

Role of pleating in enhancing filtration efficiency

The pleated design serves a critical role in enhancing the filtration efficiency of a PTFE pleated filter cartridge. Pleating increases the effective surface area of the filter, offering a larger contact area for the fluid stream. As a result, more contaminants are captured as the fluid passes through the filter, improving the overall filtration efficiency. Additionally, the pleated structure provides an increased dirt-holding capacity, allowing the filter to operate at peak performance for more extended periods between cartridge changes. This design not only ensures superior filtration but also contributes to the operational efficiency and economy of the filtration process.

Factors influencing liquid and gas filtration with PTFE pleated cartridges

Several factors influence the filtration efficiency of liquid and gas with PTFE pleated cartridges:

  1. Particle Size: The efficiency of filtration largely depends on the size of the particles or contaminants present in the fluid stream. The PTFE membrane can filter out particles of a specific extent, depending on the pore size of the membrane.
  2. Flow Rate: The rate at which the fluid is passing through the filter can also impact the filtration efficiency. A slower flow rate allows for more contact time between the liquid and the filter, potentially capturing more contaminants.
  3. Pressure: The pressure of the fluid stream can impact the performance of the filter. Higher pressures can force smaller particles through the filter, decreasing its efficiency.
  4. Temperature: Higher temperatures may affect the physical properties and chemical resistance of the PTFE membrane, potentially impacting its filtration performance.
  5. Chemical Composition: The chemical properties of the fluid, including its pH and the type of contaminants present, can also influence the performance of the PTFE pleated filter cartridges.

Chemical compatibility and solvent resistance

PTFE pleated cartridges are a versatile choice for filtration applications due to their exceptional compatibility with a wide range of chemicals. These cartridges, made of polytetrafluoroethylene (PTFE), are resistant to solvents, acids, and bases, ensuring the integrity of the filtration process. They also offer longevity, reducing operational costs by minimizing the need for frequent replacements. However, it’s essential to consider the specific chemical composition of the fluid to optimize the filtration process and ensure the cartridges’ longevity.

Flow rate and pressure drop considerations

When choosing a PTFE pleated filter cartridge, it is essential to consider the flow rate and pressure drop. Flow rate refers to the speed at which fluid moves through the filter, with higher rates potentially affecting filtration efficiency. Pressure drop, on the other hand, indicates potential clogging or inefficiency. Balancing these factors is crucial for optimal filtration. It’s worth noting that as the filter catches more contaminants, the flow rate may decrease, and the pressure drop may increase, requiring a filter change.

What Are the Advantages of Using PTFE Pleated Filter Cartridges?

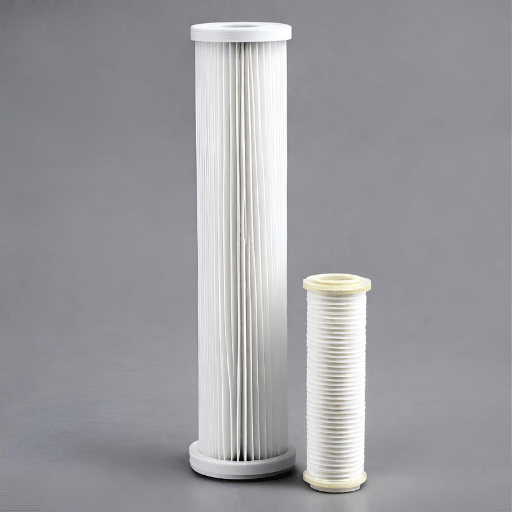

What Are the Advantages of Using PTFE Pleated Filter Cartridges?

Exceptional hydrophobic and hydrophilic properties of PTFE membrane

The PTFE membrane exhibits exceptional hydrophobic and hydrophilic properties, making it advantageous for various industrial filtration processes. Its hydrophobic characteristics allow it to repel water and other non-polar liquids efficiently efficiently, making it ideal for applications involving oil, gas, and other hydrocarbon-based fluids. Conversely, its hydrophilic properties enable it to attract and absorb water-based fluids, which is beneficial for processes that require the removal of water-soluble contaminants. These dual characteristics of the PTFE membrane increase the versatility of PTFE pleated filter cartridges, allowing them to meet a wide array of filtration requirements in diverse industries.

Superior chemical compatibility for diverse applications

PTFE pleated filter cartridges are highly compatible with a wide range of chemicals, making them ideal for various applications. Their inert nature allows them to withstand exposure to strong acids, alkalis, and organic solvents without compromising performance. With exceptional chemical resistance and the added benefits of hydrophobic and hydrophilic properties, these filter cartridges offer reliable and consistent filtration efficiency in demanding industrial settings.

High flow rates and extended service life

PTFE pleated filter cartridges are known for their high flow rates and extended service life. The pleated design of these cartridges allows for a larger surface area, facilitating higher quantities of fluid to be processed in a shorter amount of time compared to traditional filter cartridges. This high flow rate does not compromise the effectiveness of the filtration process, as the unique properties of the PTFE membrane ensure a high level of contaminant removal. In addition, PTFE pleated filter cartridges are highly durable, resulting in an extended service life. This longevity reduces the frequency of filter changes, leading to significant cost savings and a more efficient operation over the long run.

Applications in food and beverage, pharmaceutical, and industrial settings

In the food and beverage industry, PTFE pleated filter cartridges are employed in the filtration of water, wine, beer, spirits, and edible oils, ensuring the removal of contaminants and the assurance of product taste and clarity.

In pharmaceutical applications, these filters play a pivotal role in ensuring the purity of water for injection (WFI), sterile filtration of air and gases, venting, and the filtration of process chemicals. Their excellent chemical compatibility allows for safe and effective filtration despite the presence of strong chemicals.

In industrial settings, PTFE pleated filter cartridges are used across a broad spectrum, including the filtration of chemicals in petrochemical plants, the production of electronics where ultra-pure water is required, and in paint and ink production where suspended particles need to be removed to ensure product quality.

Overall, the versatility of PTFE pleated filter cartridges makes them an asset in a broad range of applications across different industries.

Comparison with other filter media in terms of performance and longevity

When compared to other filter media, such as Polypropylene (PP) and Glass Fiber, PTFE pleated filter cartridges have a distinct edge in both performance and longevity.

  • PP Pleated Filter Cartridges: While PP filters are known for their high dirt-holding capacity and broad chemical compatibility, they often fall short in terms of temperature resistance. PTFE filters, on the other hand, can handle higher temperatures, making them suitable for more rigorous applications.
  • Glass Fiber Pleated Filter Cartridges: Glass Fiber filters are lauded for their high flow rates and excellent retention ratings. However, they do not offer the same level of chemical resistance as PTFE filters, limiting their applications in environments with harsh chemicals.

In terms of longevity, PTFE pleated filter cartridges outperform both PP and Glass Fiber filters. Thanks to their robust build and chemical resistance, PTFE filters require less frequent replacements, leading to lower long-term operational costs. This makes PTFE pleated filter cartridges a cost-effective solution in industries requiring high-performance filtration.

How do you choose the suitable PTFE Pleated Filter Cartridge?

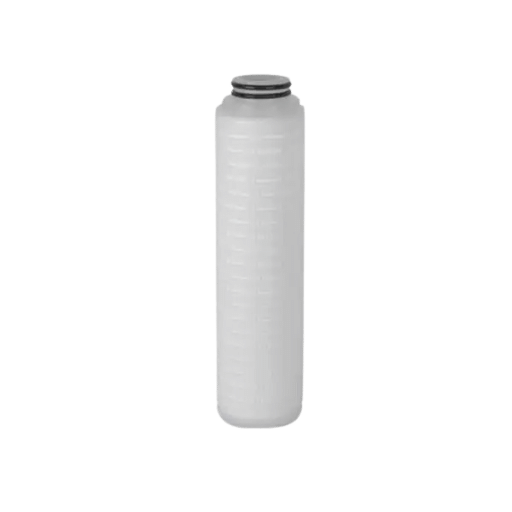

How do you choose the suitable PTFE Pleated Filter Cartridge?

Understanding micron ratings and filtration requirements

Micron ratings are crucial for selecting the correct PTFE pleated filter cartridge. They determine the filter’s ability to capture particles of specific sizes. Understanding the contamination level and particle size in your fluid is crucial in choosing the appropriate micron rating. Additionally, filtration requirements, such as flow rate and chemical compatibility, should be considered. By considering both micron rating and specific filtration needs, you can ensure an efficient and cost-effective filtering process.

Comparing different end cap and core materials

When choosing a PTFE pleated filter cartridge, the materials used for end caps and cores significantly impact the filter’s overall performance and compatibility with specific applications.

  • Polypropylene End Caps and Cores: Offering excellent chemical resistance and durability, polypropylene is a common material used for end caps and cores in PTFE pleated filter cartridges. It’s suitable for a wide range of applications, including food and beverage, pharmaceutical, and chemical processing.
  • Stainless Steel End Caps and Cores: For applications requiring high-temperature resistance and robustness, stainless steel end caps and cores are an ideal choice. They are typically used in applications involving hot water, steam, or aggressive chemicals.
  • Plastic End Caps and Cores: Plastic materials are a cost-effective choice for applications with less demanding requirements. However, they may not offer the same level of chemical resistance or durability as polypropylene or stainless steel.

In conclusion, understanding the specific requirements of your application, including chemical compatibility and temperature resistance, is crucial when comparing different end caps and core materials for PTFE pleated filter cartridges.

Considerations for liquid and gas filtration applications

When it comes to liquid and gas filtration applications, certain factors play a vital role in determining the correct PTFE pleated filter cartridge.

  • Flow Rate: For liquid filtration, the flow rate is determined by viscosity and pressure drop across the filter. In gas filtration, the rate is influenced by the porosity and thickness of the filter medium. Understanding these parameters helps in selecting a filter with the optimal flow rate.
  • Particle Size: The size of the particles to be removed is instrumental in deciding the micron rating of your filter. Liquid filtration often deals with larger particulates than gas filtration, which may require a filter with a smaller micron rating.
  • Chemical Compatibility: The nature of the liquid or gas being filtered can influence the materials chosen for the filter cartridge. Certain chemicals may react adversely with specific materials, impacting the filter’s effectiveness and lifespan.
  • Temperature: High-temperature applications may warrant the use of robust materials like stainless steel for the filter’s end caps and cores.

By considering these factors, you can ensure an efficient and cost-effective filtration process tailored to your specific application.

Examining various sizes and configurations of PTFE pleated filter cartridges

PTFE pleated filter cartridges are available in various sizes and configurations to meet different filtration requirements. The size choice depends on the volume and space availability, with standard diameters ranging from 2.5 to 4.5 inches and lengths from 9.75 to 40 inches. Configurations include single open-ended (SOE) and double open-ended (DOE) cartridges, each with different sealing mechanisms. Pleat density and geometry can be adjusted to achieve the desired flow rate and filtration efficiency. Higher pleat density offers increased surface area, enhancing dirt-holding capacity and prolonging service life. Evaluate these factors for optimal filtration performance.

Factors influencing the selection of membrane cartridges for specific industries

In selecting membrane cartridges for specific industries, several factors come into play:

  • Industry Regulations: Different industries have varying filtration standards and regulations. For example, the pharmaceutical and food and beverage industries require high levels of filtration efficiency due to stringent health and safety regulations.
  • Type of Contaminants: The nature of contaminants present in the industry’s process stream is a critical factor. Particulate sizes, types, and quantities differ from one sector to another and influence the selection of membrane cartridges.
  • Process Parameters: Process parameters such as pressure, temperature, and flow rate also affect the selection. Specific membranes perform better under high pressures, while others are more suited to high temperatures or typical flow rates.
  • Cost-effectiveness: The operational cost and lifespan of the cartridge are also considered. While initial purchase cost is a factor, the total cost of ownership, including maintenance, replacement, and disposal costs, is often more significant.

Understanding these factors helps industries make an informed choice, ensuring effective and efficient filtration according to their unique demands.

Where can you find quality PTFE-pleated filter cartridges?

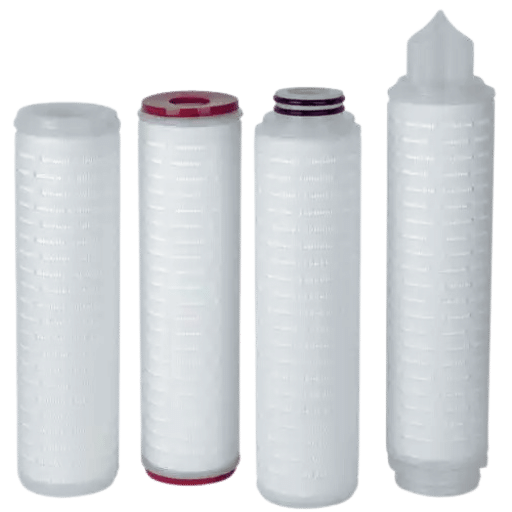

Where can you find quality PTFE-pleated filter cartridges?

When seeking quality PTFE pleated filter cartridges, it is essential to consider the following steps:

  • Exploring reputable suppliers and manufacturers: Begin the search by identifying well-known suppliers and manufacturers in the industry. Look for those who have established a reputation for delivering high-quality products consistently.
  • Requesting quotes and evaluating cost-effectiveness: After shortlisting potential suppliers, request quotes to assess the cost-effectiveness of their cartridges. Remember to consider the total cost of ownership, including maintenance and replacement costs, not just the initial purchase price.
  • Checking for certifications and compliance with industry standards: Ensure the supplier’s products are certified and comply with relevant industry standards. This not only guarantees product quality but also ensures operational safety and efficiency.
  • Choosing customized solutions for unique filtration requirements: If your industry has special filtration requirements, opt for suppliers that offer customized solutions. This ensures that the filter cartridges will meet your specific needs effectively.
  • Customer support and technical assistance: Lastly, excellent customer service and technical support are crucial. This ensures you get the necessary assistance when selecting and using PTFE filter cartridges. Choose suppliers who offer comprehensive customer support, including pre-sales consultation and after-sales service.

References

  1. Global Filter – PTFE Membrane Filter Cartridges: This manufacturer’s website provides detailed information on their high-purity PTFE membrane filter media, which offers superior chemical resistance for various industrial applications.

  2. Pleated Membrane Cartridges: Another page from Global Filter details their pleated membrane cartridges, which offer extremely high removal efficiencies.

  3. PPTFE Series – Pharmaceutical Grade PTFE: This product listing provides information on a specific pharmaceutical-grade PTFE filter cartridge manufactured in a clean-room environment to maintain high purity standards.

  4. Emflon® PFRW Hydrophobic PTFE Membrane Filter Cartridges: This product page describes a hydrophobic PTFE membrane filter cartridge that prevents wetting out in humid conditions, making it ideal for gas filtration.

  5. Pleated Filter Cartridges: This online shop offers a range of pleated filter cartridges, explaining how the pleated design increases filtration surface area and capacity.

  6. High-performance hydrophobic PTFE-pleated cartridge filter: This source provides information on a high-performance hydrophobic PTFE-pleated cartridge filter with a 0.22-micron rating, ideal for gas/air sterile filtration.

  7. 0.2 Micron, Emflon® PFAW (Hydrophobic PTFE) Filter: This product page details a specific 0.2 micron PTFE filter, highlighting its high area in single open-end cartridges.

  8. Pleated Polypropylene Liquid Filter Cartridges: While not specifically about PTFE, this source provides context on pleated synthetic filter cartridges in general, offering comparison and a broader understanding of the topic.

  9. Global Filter Company Profile: This company profile provides background information on Global Filter, a manufacturer of high-purity pleated filter cartridges.

  10. Filtration Technology: PTFE Membrane Filters: This academic article from ScienceDirect gives an in-depth look at PTFE membrane filters, their applications, and their performance in various industrial sectors.
