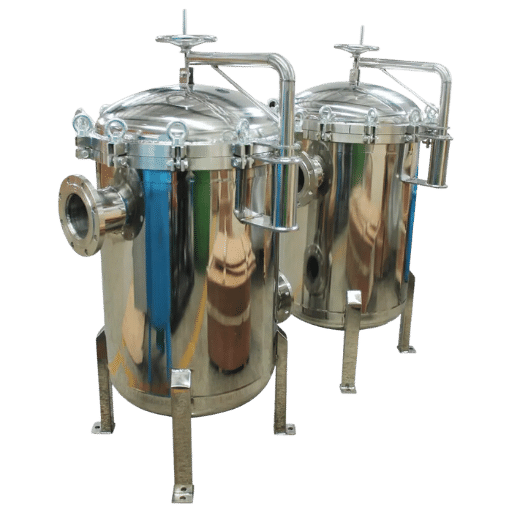

Top Strategies for Selecting the Right Basket Filter Housing in 2024

Selecting the proper basket filter housing is essential for efficient and effective filtration in various industrial processes. It is a crucial component that significantly impacts the performance, maintenance, and longevity of your filtration system. This selection, however, can be complex due to the diversity of options available regarding material, size, design, and manufacturer specifications. In this document, we will guide you through the key considerations and strategies to ensure you choose the most suitable basket filter housing for your specific needs.

What are the key features to consider when choosing a basket filter housing?

What are the key features to consider when choosing a basket filter housing?

Material

The material of a basket filter housing dramatically influences its performance and lifespan. Common materials used in the manufacturing of these housings include stainless steel, carbon steel, and sometimes plastic. Stainless steel housings are renowned for their corrosion resistance, making them ideal for processes involving corrosive substances or high temperatures. Carbon steel, on the other hand, provides excellent strength and durability but may require additional treatment to prevent corrosion. Plastic housings may be suitable for less demanding or corrosive applications due to their lower cost and ease of installation. However, they may not withstand high pressure or temperature conditions as effectively as their metal counterparts. Therefore, understanding the nature of your filtration process, including the substances involved and the operating conditions, is paramount in choosing the appropriate material for your basket filter housing.

Filter Size

The size of the basket filter housing is another crucial factor to consider, as it directly impacts the effectiveness of the filtration process. The size should be optimally chosen to balance the need for efficient filtration with the constraints of space and flow rate requirements. A larger housing allows for a more prominent filter element, which can filter a greater volume of fluid and collect more contaminants before needing replacement. However, it also requires more space and may be harder to install and maintain. On the other hand, a smaller housing is more compact and easy to manage but may need more frequent filter changes due to its lower capacity. Thus, determining the appropriate filter size involves understanding your specific filtration needs, available space, and maintenance capabilities.

Pressure Rating

The pressure rating of a basket filter housing is a vital feature to consider in your selection process. It refers to the maximum pressure that the housing can withstand without risking leakage or structural failure. The pressure rating is directly related to the strength and durability of the material used in the construction of the housing. A higher pressure rating indicates that the housing is capable of handling high-pressure operations, which is beneficial in industrial or heavy-duty applications. Conversely, a lower pressure rating might suffice for less demanding scenarios. Always ensure that the chosen filter housing’s pressure rating aligns with the operating pressure of your system to prevent potential damage, inefficiency, or safety hazards.

Filtration Efficiency

Filtration efficiency is a paramount factor in the selection of a basket filter housing. It refers to the proportion of contaminants that the filtration system is capable of removing from the fluid. The filter material and the size of the pores in the filter greatly influence the efficiency. A filter with smaller pores can trap finer particles, leading to a higher filtration efficiency. However, it may also result in a decreased flow rate, as fluid takes longer to pass through smaller pores.

Conversely, a filter with larger pores allows a higher flow rate but may not remove smaller particles as effectively. Therefore, the choice of a filter depends mainly on the balance between the desired cleanliness of the fluid and the acceptable flow rate. It’s crucial to select a basket filter housing with a filtration efficiency that aligns with the specific requirements of your application to ensure optimal performance.

Replacement Parts Availability

The availability of replacement parts is an essential consideration in the selection of a basket filter housing. Regular maintenance and part replacement are crucial to ensure the continued efficiency and longevity of the filtration system. Look for manufacturers who readily provide parts such as replacement baskets, seal kits, or differential pressure gauges. Keep in mind the cost, lead times, and accessibility of these replacement parts, as these factors will have an impact on the overall operation costs and downtime of the filtration system. It is recommended to choose a basket filter housing from a reputable manufacturer that offers comprehensive after-sales support, including readily available, high-quality replacement parts. This will ensure that your filtration system continues to operate effectively and can be quickly repaired or maintained when necessary.

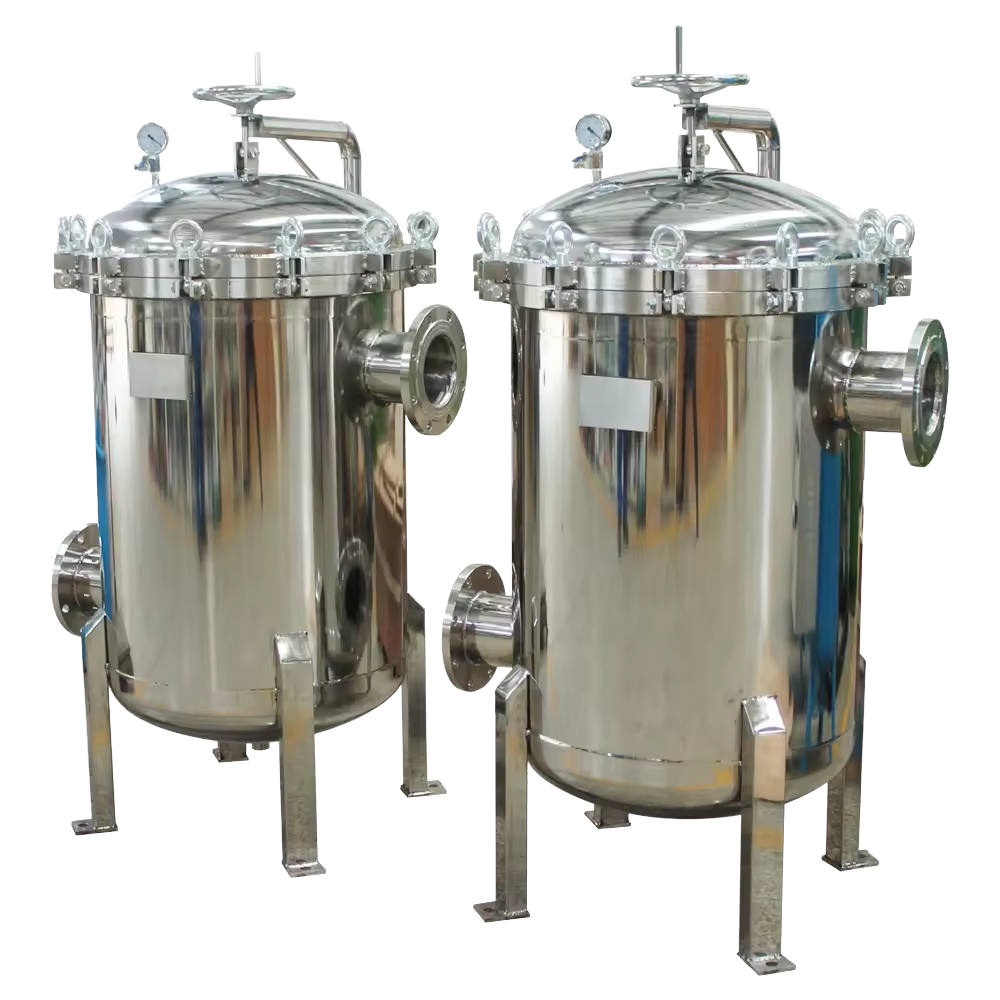

How does the material of the basket filter housing impact its performance?

How does the material of the basket filter housing impact its performance?

Stainless Steel vs. Carbon Steel

When it comes to the choice between Stainless Steel and Carbon Steel for your basket filter housing, each material offers distinct advantages. Stainless Steel, known for its remarkable resistance to corrosion and staining, is ideal for applications involving corrosive substances or operating in harsh environmental conditions. Its durable nature ensures the longevity of the housing, thereby reducing maintenance and replacement costs over time.

On the other hand, Carbon Steel is renowned for its high tensile strength and durability under extreme pressure. This makes it an excellent choice for high-pressure filtration systems. However, it’s worth noting that Carbon Steel is susceptible to corrosion if not properly maintained or if used in corrosive environments, which can impact the lifespan and effectiveness of the filter housing.

In conclusion, the choice between Stainless Steel and Carbon Steel for a basket filter housing depends on the specific requirements of your filtration system and the environment in which it will be operating. It’s always advisable to consult with a filtration expert or the housing manufacturer to make an informed decision.

Corrosion Resistance

Corrosion resistance is a crucial property to consider when selecting the material for your basket filter housing. In environments where the filtration system may be exposed to chemicals or other corrosive elements, the housing material needs to withstand these harsh conditions to prevent structural weakening or failure. Stainless Steel, with its inherent resistance to corrosion, is often the material of choice for these situations. It can resist the damaging effects of a wide array of corrosive substances, which extends the lifespan and maintains the performance of the filtration system. However, to enhance the corrosion resistance of Carbon Steel, protective coatings or treatments can be applied. These measures can extend its usability in specific corrosive environments but require regular inspections and maintenance to ensure their ongoing effectiveness. As always, precise material selection should be tailored to the individual circumstances of your filtration system and operating environment.

Temperature and Pressure Limits

The operational temperature and pressure limits are another critical factor to consider in the selection of a basket filter housing. Both Stainless Steel and Carbon Steel vary in their ability to withstand different levels of temperature and pressure. Generally, Stainless Steel can endure higher temperatures and pressures compared to Carbon Steel, making it suitable for more extreme operating environments. It is also important to note that these limits are often dependent on the specific grade or type of steel used. For instance, some high-grade stainless steel types can tolerate temperatures up to 870°C (1598°F) and pressures up to 20,000 psi.

On the other hand, typical carbon steel might only withstand temperatures up to 500°C (932°F) and pressures up to 10,000 psi. However, these are general guidelines, and the exact temperature and pressure limits should be verified with the manufacturer for each specific basket filter housing. Always ensure that the housing you select can comfortably handle the maximum operating temperature and pressure anticipated in your filtration system to avoid failure or damage.

Maintenance Requirements

Routine maintenance is a fundamental aspect of ensuring the longevity of your basket filter housing. Both Stainless Steel and Carbon Steel housings demand regular care, albeit varying in nature due to the different material characteristics.

Stainless Steel housings are more resistant to rust and corrosion but should nevertheless be regularly inspected for signs of wear and tear or biochemical reactions that could compromise the integrity of the housing. Carbon Steel housings, while robust, are susceptible to rust and should thus be painted or coated to protect against corrosion, requiring consistent inspection and potential reapplication of protective measures.

Maintenance tasks also include regular cleaning of the filter element to prevent clogging and ensure optimal filtration performance. Depending on the nature of the filtering process, this could involve simple rinsing or more in-depth cleaning procedures. Always consult the manufacturer’s guidelines for recommended cleaning procedures and frequencies.

Remember, failure to properly maintain your basket filter housing could result in deterioration of performance, unexpected shutdowns, or even system damage. Therefore, developing and adhering to a thorough preventive maintenance schedule is crucial to maximizing the service life of your basket filter housing.

Cost Considerations

When considering the costs associated with basket filter housing, several vital elements should be taken into account:

  1. Purchase Price: The initial purchase price of the filter housing will depend on its type, size, material, and any additional features. Stainless steel housings, for example, are usually more expensive than their carbon steel counterparts due to their superior durability and resistance to corrosion.
  2. Installation Costs: Professional installation of a basket filter housing can incur additional costs, which may vary depending on the complexity of your filtration system.
  3. Maintenance Costs: Regular maintenance of the filter housing, including cleaning, inspection, and any necessary repairs or replacements, also adds to the overall lifetime cost.
  4. Replacement Filter Costs: Depending on the type and size of the particles filtered, the filter elements may need to be replaced routinely. The frequency of replacement, as well as the cost of the replacement filters, should be factored into your budget.
  5. Operational Costs: The operational efficiency of the filter housing can impact the energy consumption of your filtration system, thereby affecting its running costs. Energy-efficient models, while potentially more expensive upfront, could save money in the long term.
  6. Disposal Costs: Finally, the end-of-life disposal of the filter housing and any used filters must be considered. This includes any related environmental or waste disposal fees.

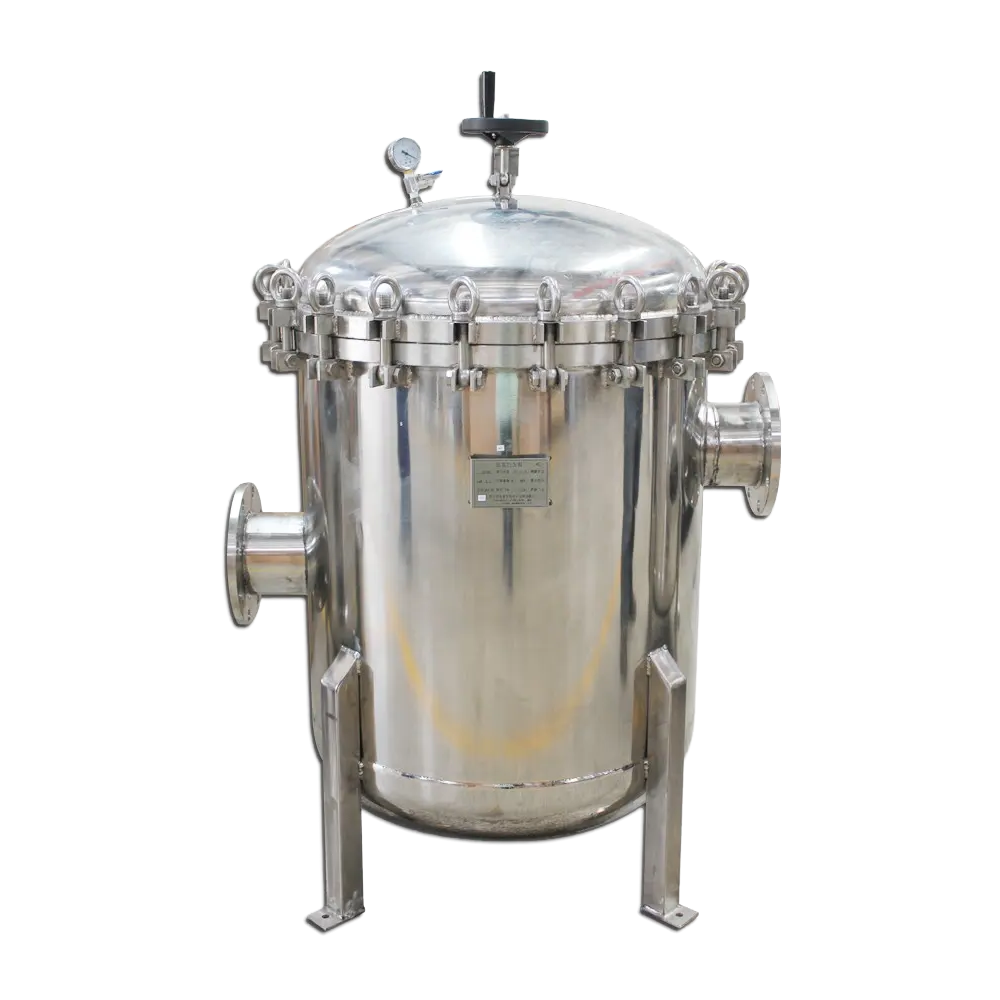

What are the different types of basket filter housings available in the market?

What are the different types of basket filter housings available in the market?

Single Bag vs. Multi-Bag Housings

Single-bag filter housings are designed to accommodate one filter bag, making them suitable for processing smaller volumes of fluid. They offer a cost-effective solution for low-flow rate applications and are relatively simple to operate and maintain. The bags can be changed quickly and easily, minimizing downtime.

On the other hand, multi-bag filter housings can hold multiple filter bags simultaneously, making them ideal for high-flow rate applications. These systems can handle larger volumes of fluid without requiring frequent bag changes, leading to lower operational costs and less maintenance time. However, multi-bag housings are generally more expensive and may require a more significant initial investment.

Perforated Baskets vs. Mesh Baskets

Perforated basket filters have holes drilled into them, providing a simple yet effective filtration method. The holes are typically uniform in size, ensuring consistent filtration. These are ideal for larger particulates or when a high flow rate is required. However, they might not be suitable for applications requiring the filtration of fine particles.

In contrast, mesh basket filters are made from a wire mesh material. The mesh can be woven more tightly or loosely depending on the filtration needs, thus offering more flexibility in terms of the particulate size it can filter. They are ideal for applications that require the filtration of smaller particles. However, they may not be able to handle the same flow rates as perforated baskets without a reduction in efficiency. Deciding between a perforated and a mesh basket filter housing will depend on your specific operational needs, including the nature of the fluid being filtered, the required flow rate, and the size of the particulates.

Standard vs. Customized Designs

Standard basket filter housing designs are typically manufactured to meet everyday industry needs. They tend to be readily available and often have a lower cost than customized designs. These standard options often have a range of sizes and specifications that can accommodate a variety of applications, making them an efficient and cost-effective solution for many operations.

Customized basket filter housing designs, however, are tailored to meet specific operational requirements that standard designs can’t accommodate. Custom designs can be tailored to handle unique fluid characteristics, extreme pressure or temperature conditions, or specific particulate sizes. These housings may come with custom coatings, special inlet or outlet orientations, or unique basket designs to fit particular operational needs. Although customized designs may require a higher initial investment, they can provide improved performance and efficiency, leading to long-term cost savings in many situations. The decision between standard and customized basket filter housing should be made considering the specific operational requirements and budget constraints.

Lined Baskets for Corrosive Fluids

In situations where the fluid to be filtered is corrosive, lined baskets for the basket filter housing are an excellent choice. These baskets come with an additional protective layer that prevents direct contact of the corrosive fluid with the basket material, thus preventing deterioration. Lining materials can vary based on the nature of the corrosive fluid and may include options such as PVC, Teflon, or rubber. The selection of the lining material is crucial to ensure it withstands the specific corrosive fluid without compromising the integrity or efficiency of the filtration process. With lined baskets, the lifespan of your basket filter housing can be significantly extended, providing a cost-effective solution for managing corrosive fluids.

Specialized Housings for the Beverage Industry

Specialized housing for the beverage industry represents a crucial component in the production process. These housings are designed to endure specific pressure conditions and temperatures associated with beverage processing. The incorporation of stainless steel in construction offers excellent corrosion resistance, making these housings durable for long-term usage. These specialized housings often feature fine micron rating filters, ensuring the removal of even the smallest particulates, which is essential for maintaining the clarity and quality of beverages. Moreover, some variants come with sanitary fittings and designs, ensuring compliance with the stringent hygiene standards of the beverage industry. Therefore, specialized housings in the beverage industry not only uphold product quality but also enhance operational efficiency and safety.

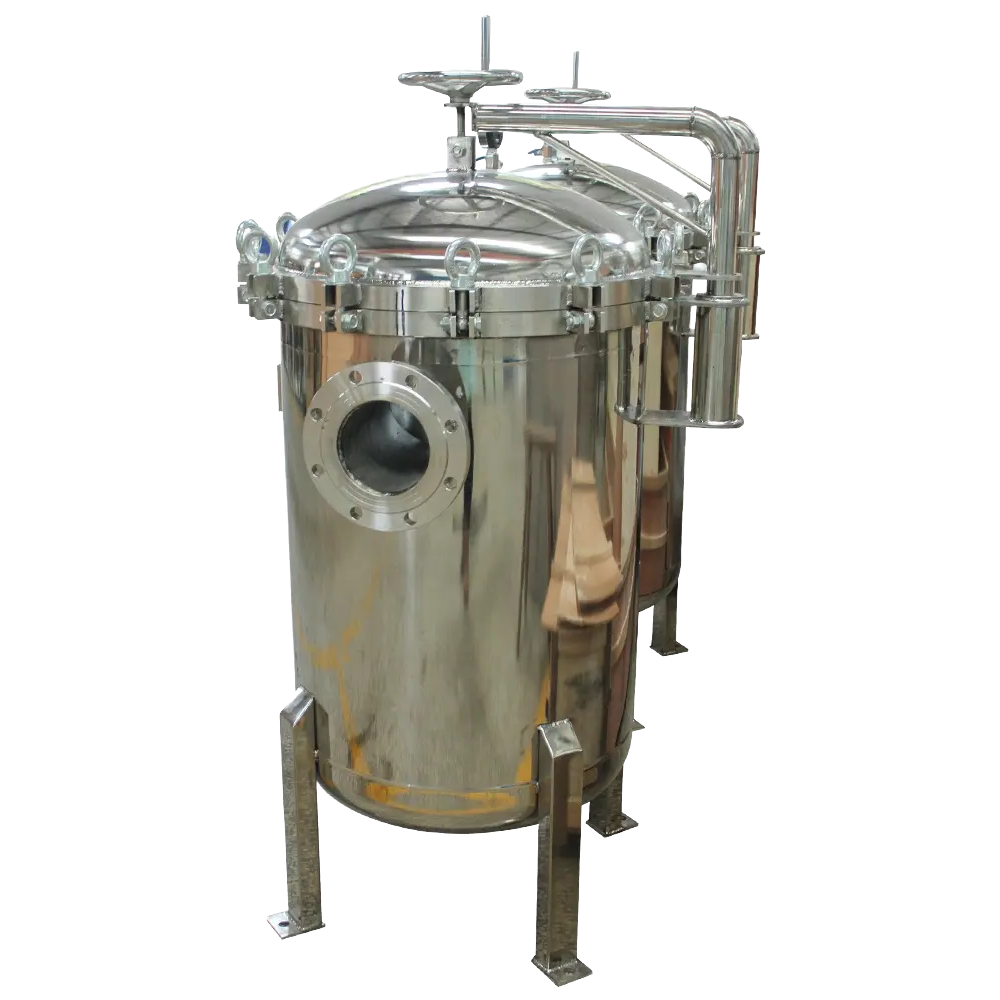

How does the size and flow rate impact the selection of a basket filter housing?

How does the size and flow rate impact the selection of a basket filter housing?

Matching Filter Size to Process Requirements

Selecting the appropriate size for your basket filter housing is paramount to the successful optimization of your filtration process. The length must be adequate to handle the process flow rate, which is measured in gallons per minute (GPM). Filter housings with smaller diameters are suitable for lower flow rates, while larger housings can accommodate higher flow rates. For instance, a 2-inch diameter housing can generally handle a flow rate of up to 200 GPM, while a 12-inch diameter housing can handle up to 1,200 GPM. Furthermore, the size also influences the housing’s dirt-holding capacity and the frequency of filter changes. Larger housings with larger filter baskets have higher dirt-holding capacities, thus requiring fewer filter changes, which can improve operational efficiency. However, it’s essential to carefully evaluate your process requirements and not over-size or under-size the filter housing, as it can lead to higher operating costs or reduced filtration efficiency, respectively.

Optimizing Flow Rate and Pressure Drop

Optimizing the flow rate and pressure drop across a basket filter housing is crucial for maximizing its filtration performance. The flow rate can be optimized by selecting a filter housing size that aligns with the process fluid’s volume flow rate. This ensures smooth and efficient operation without any unwanted overpressure or underpressure situations. The pressure drop, on the other hand, is influenced by factors such as filter housing design, filter media, and fluid viscosity. A well-designed basket filter housing can minimize pressure drop, thereby reducing energy consumption and enhancing system efficiency. For example, features like a cone-shaped inlet and an oversized housing body can help distribute the flow evenly across the filter media, reducing the pressure drop. It’s also important to regularly monitor and maintain the pressure differential across the filter housing. A significant increase in pressure differential indicates filter clogging, which necessitates filter changeout to prevent damage or system downtime. Therefore, optimizing both the flow rate and pressure drop is critical to achieving the best filtration results and maintaining the longevity of your basket filter housing.

Accommodating Future Expansion or Modification

When selecting a basket filter housing, it’s essential to anticipate future process modifications or expansions. This foresight can save significant costs and effort in retrofitting or replacing the filter housing down the line. Consider factors such as potential increases in process volume, changes in fluid viscosity, or the introduction of new contaminants. An oversized filter housing may be a prudent choice, as it can accommodate higher flow rates and larger dirt loads without compromising filtration efficiency. Moreover, choose a filter housing design that is flexible and can adapt to potential process changes. Modular designs or those with easy access to filter changeouts can prove beneficial in the long run. Therefore, planning for future expansion or modification is a strategic step in optimizing the performance and lifespan of your basket filter housing.

Impact of Particle Loading on Filtration Efficiency

Particle loading significantly influences the filtration efficiency of a basket filter housing. High particle loading accelerates the clogging of the filter media, leading to an increase in the pressure differential and potentially harming system performance. The extent of this impact depends on particle size, shape, and concentration. Large, irregular particles tend to cause rapid clogging, whereas small, spherical particles have a less pronounced effect. High particle concentrations can also lead to swift media clogging, reducing filtration efficiency considerably. Regular monitoring and timely replacement of the filter media can mitigate these effects, ensuring that the system maintains optimal performance despite changes in particle loading. Thus, understanding the impact of particle loading is critical to managing your basket filter housing effectively.

Compatibility with Existing Piping Systems

Choosing a basket filter housing that is compatible with your existing piping system is of paramount importance. Incompatibility can lead to several issues like leaks, pressure drops, and even total system failure. The filter housing must be of the right size and have the correct connections to fit snugly into your system. Material compatibility is another crucial factor. The housing material should resist the chemicals present in your fluid to prevent corrosion and degradation. Stainless steel housings, for example, work well with a broad range of substances. For highly corrosive environments, plastic housings may be a better choice. The operating conditions of your system, such as temperature and pressure, also dictate the type of filter housing you should use. Therefore, careful attention to system compatibility can enhance the longevity and efficiency of your basket filter housing.

What are the maintenance and operational considerations for basket filter housings?

What are the maintenance and operational considerations for basket filter housings?

Routine Cleaning and Inspection Procedures

Routine cleaning and inspection of basket filter housings are integral to maintaining their performance and longevity. Regular cleaning helps prevent the buildup of particles that can compromise the filtration efficiency, while routine inspections can identify and address potential issues before they escalate into severe problems.

To clean the basket filter housing, first, disassemble it and remove the filter media. Rinely clean each part carefully using a suitable cleaning agent, ensuring that all particles are removed. After cleaning, thoroughly rinse the parts and allow them to dry before reassembling the filter housing.

Inspecting the housing involves checking for signs of wear and tear, such as cracks or corrosion. Also, pay attention to the seals and gaskets, as any damage or wear can lead to leaks. It’s also crucial to monitor the pressure drop across the filter housing, as a significant increase could indicate a clogged filter media that needs replacement. In summary, establishing a regular cleaning and inspection routine can significantly enhance the effectiveness and lifespan of your basket filter housing.

Replacing Filter Bags and Cartridges

The replacement of filter bags and cartridges is another crucial aspect of maintaining the efficiency of basket filter housings. Filter bags and cartridges serve as the primary filtration medium, and over time, they can become clogged or worn, necessitating replacement. The frequency of replacement largely depends on the type of media used and the volume and nature of the particles being filtered.

To replace a filter bag or cartridge, first, ensure that the system is safely shut down and depressurized. Remove the housing cover and carefully take out the used filter bag or cartridge, taking care to avoid any spillage of trapped particles. Once removed, inspect the housing interior for any residual particles and clean if necessary.

Next, please insert the new filter bag or cartridge, ensuring it fits neatly within the housing. Check the seals and gaskets are in good condition and replace them if needed. Once the new filter is in place and the housing reassembled, gradually re-pressurize the system, checking for leaks. After confirming the system is operating correctly, log the replacement date for future reference.

Remember, regular replacement of filter bags and cartridges, along with routine cleaning and inspection, can significantly improve the performance and lifespan of your basket filter housing.

Pressure Relief Mechanisms and Safety Features

Basket filter housings are equipped with pressure relief mechanisms and safety features designed to ensure secure operation and prevent potential damage due to overpressure. Pressure relief valves, a standard feature in these systems, automatically release excess pressure when it exceeds the housing’s maximum limit, preventing potential equipment failure or rupture.

In addition to pressure relief valves, other safety features include differential pressure gauges and visual inspection windows. Differential pressure gauges monitor the pressure difference between the inlet and outlet of the filter housing. A significant increase in this difference can indicate a clogged filter requiring immediate attention. Visual inspection windows allow operators to observe the filter’s condition without opening the housing, thereby minimizing the risk of system contamination and operator exposure.

Ensuring these mechanisms are functional and frequently testing them is an integral part of maintaining your basket filter housing. Regular maintenance checks not only guarantee the safety and efficiency of your system but also extend its operational lifespan.

Integration with Monitoring and Control Systems

Basket filter housings can be seamlessly integrated with advanced monitoring and control systems to manage their operation more efficiently. These systems offer real-time data on filter performance, alerting operators to potential issues before they escalate. By continuously monitoring the differential pressure, flow rate, and even the temperature within the filter housing, operators can optimize the filtration process and schedule maintenance tasks predictably. Furthermore, integration with control systems allows for the automation of specific tasks. For instance, automatic backwashing can be initiated when the differential pressure reaches a predefined threshold. This not only reduces manual intervention but also ensures peak performance of the filter housing at all times. By harnessing the power of modern technology, operators can significantly enhance the reliability, safety, and longevity of their basket filter housing systems.

Handling Compatibility with Various Fluids and Contaminants

Basket filter housings are designed to handle a wide range of fluids and contaminants. They are compatible with both low and high-viscosity fluids, including water, oils, and chemicals. Their robust construction allows them to effectively capture and retain various forms of contaminants, such as particulates, sediments, and even microorganisms. The compatibility of basket filter housings with different types of filter media further enhances their versatility. Whether it’s a stainless-steel wire mesh for coarse filtration or a pleated synthetic element for fine filtration, the basket filter housing can accommodate it. The choice of filter medium directly influences the contaminant capture efficiency, thus allowing operators to customize their filtration system based on the specific requirements of their application. Moreover, materials used in the construction of the housing, such as stainless steel or polypropylene, provide excellent chemical resistance, ensuring reliable performance even in corrosive environments. Hence, understanding the compatibility of your basket filter housing with various fluids and contaminants is critical to achieving optimal filtration performance.

References

  1. Choosing the Right Basket Strainer for Your Manufacturing Process – This source emphasizes the importance of selecting a suitable basket strainer for manufacturing processes and how a well-chosen strainer can optimize these processes.
  2. Tips and Tricks for Choosing the Right Strainers in Fluid Industry – This article provides factors to consider when choosing a filter, focusing on flow rate and pressure drop.
  3. Industrial Basket Strainer 101 – A comprehensive guide about industrial basket strainers, including their usage in food processing and tips to avoid clogging.
  4. Top 12 Attributes of Industrial Filter Baskets – An informative post outlining the chief attributes of industrial filter baskets crucial for effective filtration.
  5. Ten tips to choose the best filters – This article provides ten tips to help select the best filter elements and filter housings.
  6. Cartridge Filter Housings Selection Guide: Material, Size, Features, Price, Suppliers, Design Drawing – A detailed selection guide for cartridge filter housings, discussing aspects like filter material, size, features, price, suppliers, and design drawing.
  7. Basket Strainer Maintenance Tips – This source offers maintenance tips for basket strainers, emphasizing the importance of regular checks on the pressure distinction across the basket.
  8. Precision Basket Size – Tips and Techniques – A forum discussion providing insights into the importance of precision in basket sizing, especially in relation to the type of coffee being brewed.
  9. How Do You Choose The Best Water Filter Housing? – This blog post discusses the types of filter housings best suited for specific purposes and includes information about cartridge filter housing and fabricated strainers.
  10. How To: Espresso Filter Baskets and Portafilters – YouTube – A video guide explaining the selection and usage of espresso filter baskets and portafilters. The video provides practical tips and demonstrations for newbies.

Each of these sources provides a unique perspective on the topic, and collectively, they offer a comprehensive overview of the strategies for selecting the proper basket filter housing.
