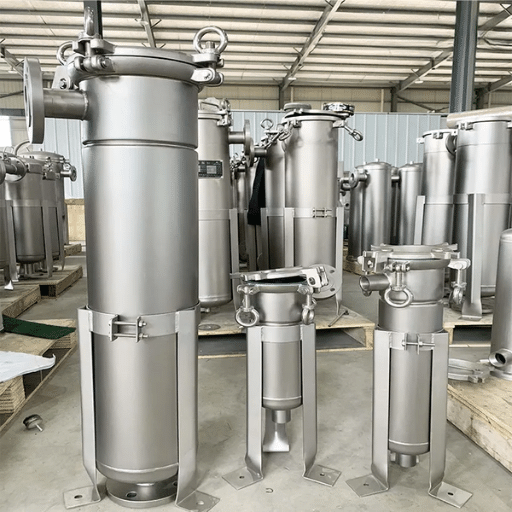

The Ultimate Guide to Single Bag Filter Housing in 2024

A Single Bag Filter Housing is a critical component in the realm of industrial filtration, designed to handle demanding filtration needs. It is an efficient and cost-effective solution for filtering large volumes of high-viscosity liquids and solids. The device consists of a filter bag housed in a container through which the fluid passes, leaving impurities behind. This guide aims to provide comprehensive insights into the functioning, selection, and maintenance of Single Bag Filter Housing, highlighting its integral role in enhancing operational efficiency in various industries.

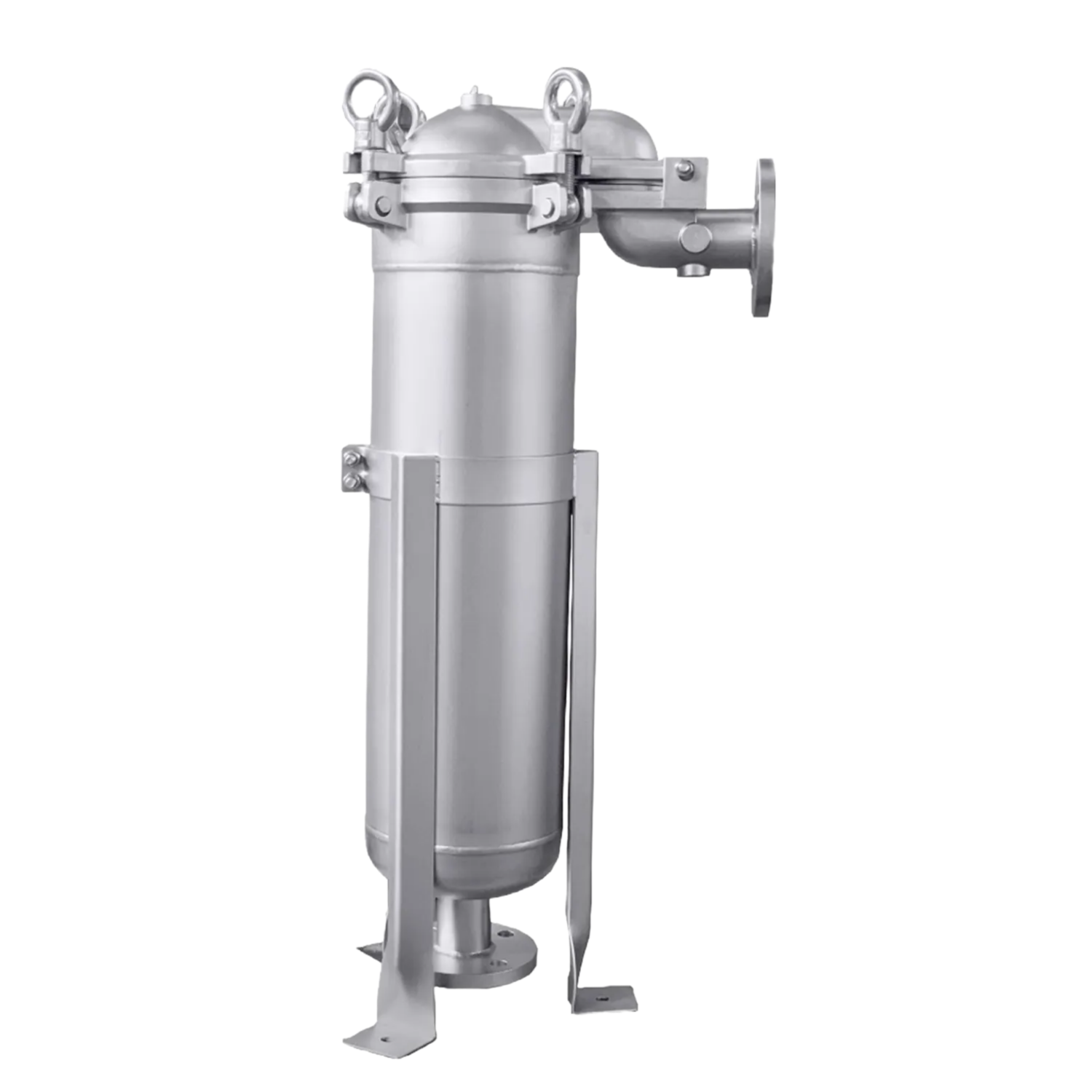

What is a Single Bag Filter Housing?

Definition of single bag filter housing

A Single Bag Filter Housing is a system designed for industrial filtration processes. It comprises a cylindrical housing, typically made of stainless steel, carbon steel, or Polypropylene, sturdy enough to withstand high pressures and temperatures. Within this housing, a replaceable filter bag is placed to capture impurities from the fluid that runs through it. The filter bags can be selected based on their micron rating, signifying the size of particles they can filter out. The system is engineered for optimal flow characteristics, promoting efficient filtration and easy bag change-outs. The housing is also equipped with an inlet and an outlet for the fluid, a cover sealing mechanism, and sometimes a pressure gauge to monitor the operation. It is a standalone unit designed for convenience, durability, and cost-effectiveness in high-volume filtration applications.

How does a single-bag filter housing work?

A single-bag filter Housing operates through a relatively straightforward yet highly effective process. Once the fluid is introduced into the housing through the inlet, it is evenly distributed by an internal baffle to reduce turbulence. The liquid then passes through the filter bag from the inside out, with the bag trapping the impurities. The filtered fluid exits the housing through the outlet. Over time, as the bag fills with particulates, the differential pressure rises, indicating the need for a bag change. The change-out process is simple and quick, thanks to the housing’s top-loading design. It involves opening the top cover, removing the contaminated bag, and replacing it with a new one. The size, type, and micron rating of the bag can be chosen depending on the specific filtration requirements, fluid type, and the nature of the impurities. This straightforward operation and easy maintenance make Single Bag Filter Housing a preferred choice for high-volume industrial filtering applications.

Advantages of using a single-bag filter housing

Single Bag Filter Housing offers numerous advantages, making it an ideal choice for many industrial filtration requirements:

1. Efficient Filtration: Single-bag filter housings provide high-grade filtration, effectively trapping a wide range of particulates. The degree of filtration can be customized based on the chosen bag’s micron rating.
2. Cost-Effective: These housings are relatively inexpensive compared to other filtering systems. Their operation and maintenance costs are also considerably low due to easy bag change-outs.
3. Versatility: Single-bag filter housings can accommodate a variety of bag filters, which can be selected based on specific fluid types and impurity characteristics.
4. Durability: Built with robust materials like stainless steel, these housings can withstand harsh industrial environments and high-pressure operations.
5. Easy Maintenance: The top-loading design simplifies the bag change-out process, reducing downtime and increasing productivity.
6. Space-Efficient: Single-bag filter housings are compact, standalone units, making them suitable for applications where space is a constraint.

The combination of these advantages makes single-bag filter housing an excellent choice for industries looking for a reliable, cost-effective, and efficient filtration solution.

Application of single-bag filter housing in industrial settings

Single-bag filter housings find widespread application across various industries due to their high efficiency and versatility. In the petrochemical industry, they are used for the filtration of fuels and lubricants, effectively removing impurities and ensuring the smooth operation of machinery. These housings also play a critical role in water treatment plants for removing particulates and suspended solids, thereby improving the water quality. In the food and beverage industry, single-bag filter housings are employed to filter edible oils, sugar syrups, and other liquids, ensuring the safety and quality of the products. Similarly, in the paints and inks industry, these housings are utilized to remove unwanted particles and prevent blockage of spray nozzles. In the pharmaceutical industry, single-bag filter housing is employed for the filtration of raw material particles, ensuring the purity and safety of the final products. These applications underscore the importance of single-bag filter housing in maintaining the quality and efficiency of industrial processes.

Product options for single-bag filter housing

There are several product options available for single-bag filter housings, each suited to specific industry needs:

• Polypropylene Bag Filter Housing: Ideal for corrosive and non-corrosive applications, this type of housing is lightweight, cost-effective, and resistant to most acids and alkalis.
• Stainless Steel Bag Filter Housing: Known for its robust build and high durability, this housing is best suited for high-temperature and high-pressure applications.
• PVC Bag Filter Housing: This option is highly resistant to corrosion, making it an excellent choice for applications involving aggressive fluids.
• Carbon Steel Bag Filter Housing: Perfect for general industrial applications, this housing offers high durability at an economical cost.
• High-Flow Bag Filter Housing: Designed for high-flow applications, this housing can filter large volumes of liquid efficiently and swiftly.

Each of these options provides unique benefits and can be selected according to the specific filtration requirements of the application.

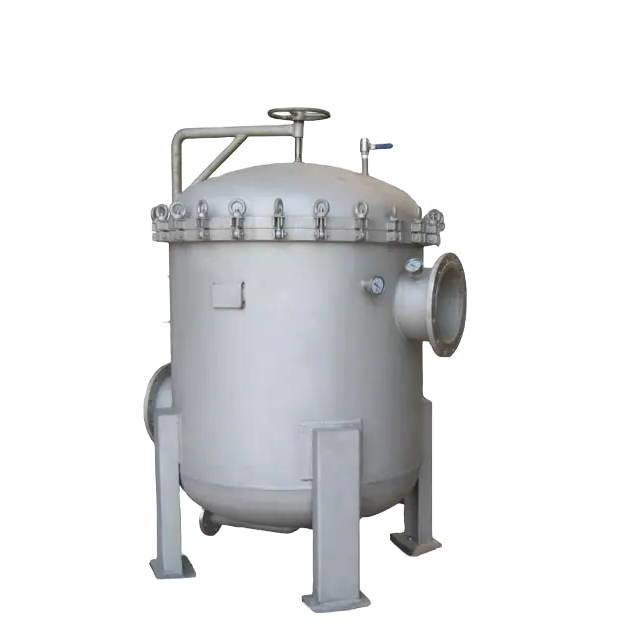

Factors to Consider When Choosing a Single Bag Filter Housing

Material options for single-bag filter housing

When selecting a single-bag filter housing, the material is a critical aspect to consider, as it directly impacts the housing’s durability, resistance to corrosion, and suitability for specific applications. Here are some common materials used in single-bag filter housing:

• Polypropylene: This is a cost-effective, lightweight material that resists most acids and alkalis, making it ideal for both corrosive and non-corrosive applications.
• Stainless Steel: Renowned for its robustness and high durability, stainless steel can withstand high temperatures and pressures, making it suitable for demanding industrial applications.
• PVC: This material is highly resistant to corrosion, rendering it an excellent choice for applications involving aggressive fluids.
• Carbon Steel: Offering high durability at an economical cost, carbon steel is perfect for general industrial applications.
• High-Density Polyethylene (HDPE): Recognized for its strength and high chemical resistance, HDPE is suitable for a wide range of applications, including wastewater treatment and chemical processing.

Size and capacity considerations

In addition to material, the size and capacity of the single-bag filter housing are crucial factors to consider. The size of the housing should correspond to the volume of fluid that it needs to process. Standard bag filter housings can handle flow rates from 1 to 1,000 gallons per minute (GPM), depending on the bag size and type. Capacity is often determined by the filter bag’s surface area and the degree of filtration required. Larger housings are typically more efficient as they can hold more extensive or multiple filter bags, reducing the need for frequent bag changes. However, for smaller-scale or less demanding applications, compact and economical bag filter housings may suffice. Remember, the key is to balance between your process requirements and the cost-efficiency of the system.

Pressure and flow rate specifications

Pressure and flow rate are vital indicators of how well a single-bag filter housing will perform in a given application. For instance, standard bag filter housings can handle pressures up to 150 psi, but high-pressure models can withstand up to 300 psi. The flow rate, on the other hand, is dictated by the housing design and size. More miniature housings may only support flow rates of up to 100 GPM, while larger models can accommodate up to 1,000 GPM or more. It is crucial to note that the actual flow rate will depend on the viscosity and specific gravity of the fluid, the filter bag used, and the desired cleanliness level. Always ensure that the chosen bag filter housing can withstand the maximum operating pressure and flow rate of your system to prevent equipment failure and maintain optimum performance.

Seal and closure options for single-bag filter housing

Single-bag filter housings come with a variety of seal and closure options that ensure a tight and secure fit, eliminating the possibility of leakage and ensuring optimal performance. The most common types of seals include Buna-N, EPDM, and Viton seals, each offering unique benefits and compatibility with different types of fluids. Buna-N seals are generally resistant to petroleum, hydraulic fluids, and aliphatic hydrocarbons, while EPDM seals work well with ketones, hot water, and steam. Viton, being highly resistant to temperature extremes and chemical reactions, is ideal for aggressive fluids.

Closure options for filter housings also vary. The most common types are clamp and swing bolt closures. Clamp closures offer a secure fit, are easy to open and close, and are ideal for low to medium-pressure applications. Swing bolt closures, on the other hand, are designed for high-pressure operations, and while they require more effort to open and close, they provide a higher level of security. When choosing a seal and closure option, consider the type of fluid, system pressure, and the operational environment to make an informed decision.

Unique features and accessories for single-bag filter housing

Single-bag filter housings often come with a variety of unique features and accessories designed to enhance performance and convenience. An important feature to consider is the design of the basket. Some housings offer a perforated basket design, which increases the total surface area for filtration, thereby improving the efficiency of the system. Additionally, specific models might provide a differential pressure gauge. This tool allows for real-time monitoring of the filter’s performance and alerting to when a bag change is necessary, thus preventing the system’s downtime.

Standard accessories for single-bag filter housings include mounting legs, which provide stability and ease of installation, and adjustable legs, which allow for variations in installation height. Filter bag hold-down rings are used to ensure a secure seal between the filter bag and the housing, preventing bypass. Some housings also come with an option for a bag lock system, which helps to secure the bag in place during operation and makes bag changing more accessible and safer. Remember, when choosing special features and accessories, it’s crucial to take into account the specific requirements of your filtration system.

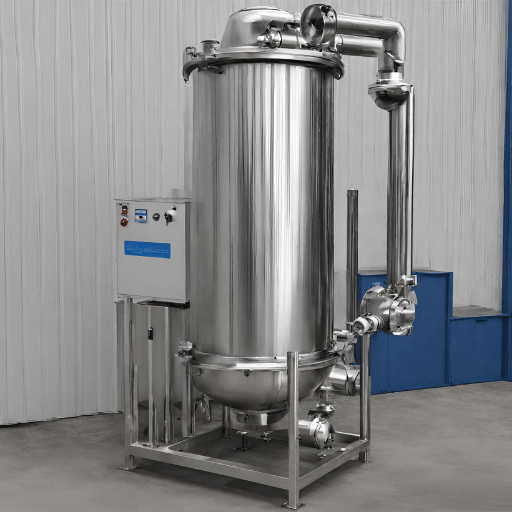

Installation and Maintenance of Single Bag Filter Housing

Instructions for installing a single-bag filter housing

Installation of a single-bag filter housing requires a careful and systematic approach. Begin with the selection of an appropriate location that ensures easy access for bag changes as well as routine inspection and maintenance. Mount the housing using the provided legs or brackets, ensuring a stable and secure fit. Once the housing is securely mounted, connect the inlet and outlet plumbing. Make sure to follow the flow direction marked on the housing. After plumbing is attached, place the filter bag inside the housing, ensuring it fits properly around the perforated basket. The filter bag should be secured using the hold-down ring to prevent bypass. Finally, slowly introduce system pressure to the filter housing. It is vital to monitor for leaks and rectify them immediately. Always make sure to follow manufacturer’s instructions and guidelines for the specific model of your single-bag filter housing to ensure the effective operation and longevity of your system.

Tips for maintaining and cleaning a single-bag filter housing

Regular inspection and maintenance of a single-bag filter housing are paramount to its performance and longevity. Here are some tips to ensure your filter system continues to operate efficiently:

1. Routine Inspection: Regularly inspect your filter housing for any visible signs of wear or damage. This includes checking the gasket, bag seals, and other components for any signs of wear or damage.
2. Cleanliness: Keep the filter bag and the housing clean. After removing the used filter bag, clean the inside of the housing thoroughly before installing a new bag. Use non-abrasive cleaning agents to prevent scratches or other damage to the housing.
3. Replacing Bags: Replace filter bags in accordance with the manufacturer’s recommended schedule or sooner if you notice a decrease in system performance. Always ensure the replacement bags are of the correct size and material for your specific filtration needs.
4. Seals and Gaskets: Check the seals and gaskets regularly and replace them as needed to prevent leaks and maintain optimal filtration performance.
5. Safety: When changing bags or performing any maintenance tasks on the housing, always follow safety protocols. This includes turning off the system and releasing pressure before beginning any work.
6. Record Keeping: Keep a log of all maintenance and inspections performed on the filter housing. This record will help identify patterns, predict potential issues, and plan preventative maintenance activities.

Always remember that the manufacturer’s instructions should be the primary guide for any installation, cleaning, and maintenance tasks related to your single-bag filter housing.

Replacing filter bags in a single-bag filter housing

Replacing the filter bags in a single-bag filter housing is a critical maintenance task that ensures optimal filtration performance. The process requires careful attention to detail to prevent any damage or leaks.

1. Shutdown and Depressurize: Begin by shutting down the system and carefully releasing any internal pressure according to the manufacturer’s instructions.
2. Open the Housing: Once the system is safe to work on, open the filter housing to access the bag.
3. Remove the Old Filter Bag: Carefully remove the used filter bag. It’s recommended to wear gloves during this process to protect from potential contaminants.
4. Clean the Housing: With the bag removed, thoroughly clean the inside of the housing using appropriate non-abrasive cleaning agents. Ensure all residual particles are removed.
5. Install the New Filter Bag: Install the new filter bag, ensuring it fits snugly and securely within the housing. Check the bag seals to ensure they are intact and properly seated.
6. Close the Housing: Re-secure the housing, ensuring all seals and gaskets are correctly positioned to prevent leaks.
7. Ramp Up the System: Gradually bring the system back online. Monitor the pressure and performance for any irregularities.

Remember to refer to the manufacturer’s specific instructions at each step to ensure proper handling and installation for your particular single-bag filter housing model.

Common issues and troubleshooting for single-bag filter housing

Here are some common problems that may arise with single-bag filter housing and their corresponding troubleshooting steps:

1. Leakage: Leakage is a common issue that may occur due to improper sealing or a worn-out gasket. To rectify this, ensure that all seals and gaskets are correctly fitted and replace any visibly worn-out parts.
2. Reduced flow rate: A decrease in the flow rate could signal a clogged filter bag. To resolve this, replace the filter bag and ensure regular maintenance checks are conducted.
3. Pressure spikes: Sudden pressure surges may indicate a blockage within the housing or system. Immediate inspection and potential filter bag replacement are advised to avoid damage to the system.
4. Contaminants in the output: If contaminants are found in the production, this could be a result of a torn filter bag or a poorly seated bag. Inspect the filter bag for any damage and ensure it is securely positioned in the housing.
5. System shutdown: In cases where the system shuts down unexpectedly, it could be due to an issue with the power supply or a significant blockage. Check the power source and inspect the filter housing for any blockages.

Always remember to follow the manufacturer’s instructions during troubleshooting and maintenance. If the issue persists, it’s advisable to consult with a professional or the manufacturer’s technical support team.

Longevity and durability of single-bag filter housing

The longevity and durability of a single-bag filter housing largely depend on the quality of the materials used and the overall construction. Stainless steel housings are commonly favored for their superior resistance to corrosion and rust, significantly extending their lifespan even in harsh environments. Furthermore, the durability of a single-bag filter housing can also be enhanced by thorough and consistent maintenance, such as regular cleaning and timely replacement of filter bags. It is equally important to ensure that the unit is not exposed to pressures beyond its capacity to avoid potential damage. By combining high-quality materials and appropriate handling, users can optimize the performance and extend the service life of their single-bag filter housing.

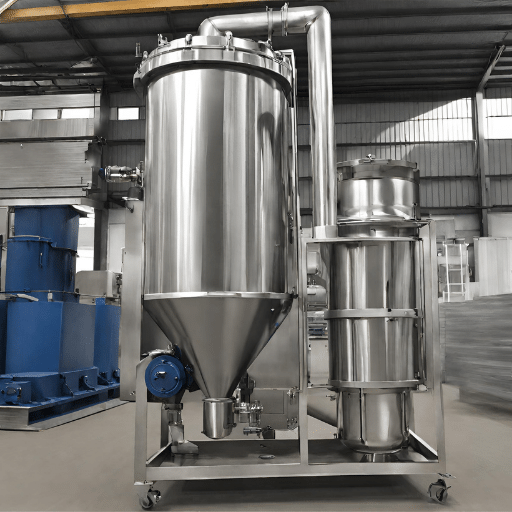

Comparison Between Single Bag and Multi Bag Filter Housings

Differences in design and construction

Single-bag filter housings and multi-bag filter housings differ substantially in design and construction. Single-bag filter housings are designed to accommodate one filter bag, making them compact and suitable for small-scale operations. They are often accessible to install and maintain, thanks to their simple construction. Conversely, multi-bag filter housings can hold multiple filter bags simultaneously. As such, they are typically more extensive and more complex, but they offer a significantly higher flow rate, making them ideal for heavy-duty or large-scale applications. The internal construction of these housings also differs, with multi-bag housings often featuring separate compartments for each filter bag to allow for individual bag replacement without needing to shut down the entire system. With their unique designs, both single and multi-bag filter housings cater to different needs and applications in various industrial sectors.

Performance variations between single and multi-bag filter housings

When it comes to performance, both single and multi-bag filter housings exhibit unique characteristics that are suitable for different operation scales and requirements. Single-bag filter housings, due to their compact size, are often associated with lower flow rates. However, they are highly efficient in handling small to medium-scale operations with consistent performance. Their simplicity of design also allows for easy maintenance and low downtime.

On the other hand, multi-bag filter housings, due to their capacity to accommodate multiple filter bags, can manage significantly higher flow rates. This makes them an ideal choice for large-scale operations or heavy-duty applications where high-volume filtration is required. While they might need more complex maintenance routines due to their multiple compartments, their design allows for individual bag replacement, potentially reducing system downtime. Thus, the choice between single and multi-bag filter housings largely depends on the specific operational needs and the scale of the filtration task at hand.

Industrial applications suited for single-bag filter housing and multi-bag filter housing

Single-bag filter housing is frequently used in applications that require smaller-scale filtration, such as cooling tower water, brewery and winery applications, automotive paint booths, and chemical processing. These industries often deal with fewer contaminants and smaller volumes of fluid that need to be processed, making the single-bag filter housing an efficient and cost-effective choice.

Multi-bag filter housing, on the other hand, is most suited for large-scale operations or heavy-duty applications that deal with high-volume filtration. Industries such as oil and gas, wastewater treatment, power generation, and pharmaceuticals often utilize multi-bag filter housings. Their capability to handle high flow rates and larger volumes of fluid makes them a necessity in these industries.

Cost considerations for single-bag filter housing and multi-bag filter housing

When it comes to cost considerations, both single and multi-bag filter housings have their respective advantages and disadvantages. Single-bag filter housings are typically more affordable upfront, making them a cost-effective solution for small to medium-sized operations. However, they may require more frequent bag replacements, which could lead to higher operational costs over time.

On the contrary, multi-bag filter housings, while more expensive initially due to their complex structure, could potentially save money in the long run with their extended bag lifespan and their capability to handle larger volumes of fluid. This reduces the frequency of bag replacements, leading to lower maintenance costs. Thus, while the initial investment might be higher, the potential savings over time make multi-bag filter housings a worthwhile consideration for more extensive operations.

Ultimately, the choice between single and multi-bag filter housings should take into account not only the initial cost but also the long-term operational costs. It’s crucial to consider the specific needs and scale of your operation to make the most cost-effective decision.

Future trends and advancements in single-bag and multi-bag filter housings

The filter housing industry is witnessing significant advancements driven by technology and innovation. For single-bag filter housing, the future holds promising trends, especially in the areas of material science and design. Manufacturers are increasingly adopting materials with exceptional chemical resistance and higher temperature tolerance, resulting in enhanced durability and operational efficiency. Furthermore, design improvements are focusing on increasing the surface area for filtration, leading to better performance and less frequent bag replacements.

As for multi-bag filter housings, the emphasis is on increasing capacity without compromising efficiency. Cutting-edge technologies are being incorporated for better flow distribution, reducing the risk of bypass and ensuring optimal filtration. Furthermore, advancements in automation are also underway, with intelligent sensors and remote monitoring systems being integrated into these housings for predictive maintenance and real-time operational insights.

Overall, both single and multi-bag filter housings are evolving to meet the dynamic demands of various industries, thereby contributing to their operational effectiveness and sustainability.

Top Manufacturers and Suppliers of Single Bag Filter Housing

Rosedale Products: Leading the industry in single-bag filter housing

Rosedale Products has earned its position as a frontrunner in the single-bag filter housing industry due to its commitment to quality, innovation, and customer satisfaction. This Michigan-based company has a vast array of robust and efficient bag filter housings in its product lineup, each thoughtfully designed to cater to various industry requirements. Their single-bag filter housings, known for their high flow rates and durability, are crafted from top-tier materials, including carbon steel, stainless steel, and various specialty alloys. A standout feature of Rosedale’s offerings is the unique sealing mechanism that minimizes fluid bypass, ensuring maximum filtration efficiency. Furthermore, they prioritize user-friendly design aspects, such as easy bag change-outs, which significantly reduce maintenance time and cost. Rosedale’s dedication to continuous improvement, coupled with their extensive industry experience, positions them as a trusted supplier in the filtration industry.

Eaton: Providing a wide range of single-bag filter housing solutions

Eaton stands as a prominent name in the filtration industry, offering a comprehensive range of single-bag filter housing solutions tailored to meet the diverse needs of various sectors. Renowned for their commitment to innovation and quality, they provide single-bag filter housing options characterized by their high performance, reliability, and ergonomic design. Eaton’s single-bag filter housings are available in numerous configurations, materials, and sizes, including stainless steel, carbon steel, and plastic versions, thus catering to a broad spectrum of filtration applications. Additionally, their housings are engineered for ease of use, featuring quick-opening closures and adjustable height legs, which dramatically simplify bag change-outs and system maintenance. Eaton’s commitment to developing innovative, efficient, and practical filtration solutions solidifies its position as a dependable supplier in the single-bag filter housing arena.

Filtra-Systems: Innovative approaches to single bag filter housing

Filtra-Systems is a pioneering figure in the realm of the single-bag filter housing, known for its innovation-forward approach. Their products are marked by a blend of advanced technology, robust design, and operational efficiency, addressing the complex filtration needs of various industries. The single-bag filter housing offerings from Filtra-Systems are distinctly characterized by their high-capacity flow rates, secure sealing mechanisms, and superior contaminant retention, ensuring optimal filtration performance. These housings are available in diverse materials, including stainless steel and high-strength plastic, and are designed for straightforward maintenance and bag replacement, making them a user-friendly choice. By continuously pushing the boundaries of design and technology, Filtra-Systems has established a strong footprint in the single-bag filter housing market.

Zhongting: A Global Power in Single Bag Filter Housing

Zhongting, hailing from China, is a leading provider of single-bag filter housing solutions. Their product line is recognized for its exceptional quality, state-of-the-art technology, and industry-specific designs. These filter housings are celebrated for their high performance, consistent output, and long-lasting durability. Zhongting’s single-bag filter housing selection is available in a variety of materials, such as stainless steel and reinforced plastic, creating solutions for a broad range of filtration applications. Known for their innovative design, these housings facilitate simple and fast bag change-outs, minimizing maintenance efforts. Zhongting’s extensive experience and deep understanding of the intricacies of filtration technology have cemented its reputation as a trusted partner in the global single-bag filter housing sector.

Quality standards and certifications for single-bag filter housing manufacturers

Single-bag filter housing manufacturers are required to adhere to stringent quality standards and certifications to ensure the safety, efficiency, and durability of their products. These standards dictate precise manufacturing processes, material specifications, and performance metrics. Key certifications include ISO 9001, which validates the implementation of a quality management system, and ASME BPVC VIII-1, which certifies pressure-containing components. Each product typically undergoes rigorous testing, such as hydrostatic pressure tests, to prove its structural integrity and reliability. Compliance with these standards and certifications assures customers of the product’s quality and dependability in diverse filtration applications.

Contact information and support for single-bag filter housing products

For further information on our single bag filter housing products or to address any queries or technical concerns, feel free to reach out to our dedicated customer service team. We are committed to providing an exceptional level of support to ensure the optimal performance of our products. You can contact us via email Monday to Friday, 9:00 AM to 5:00 PM EST. In addition, our website features a comprehensive collection of product manuals, FAQs, and technical articles to assist you in understanding and effectively utilizing our single-bag filter housing solutions.
