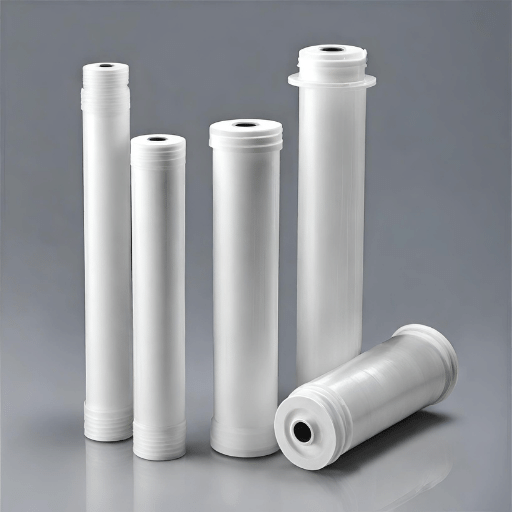

Membrane Filter Cartridge: Everything You Need to Know

What are Membrane Filter Cartridges?

Membrane filter cartridges are precision filtration devices used to remove particulate matter and microorganisms from liquids and gases. They are comprised of a semi-permeable material that allows certain substances to pass through while blocking others, thereby providing a high degree of filtration efficiency. These cartridges are commonly used in industries such as pharmaceuticals, food and beverage, water treatment, and electronics, where maintaining the purity of substances is of paramount importance.

Understanding the Composition of Membrane Filter Cartridges

The composition of membrane filter cartridges comprises various key elements tailored to specific filtration applications:

1. Membrane Material: The membrane can be made from natural or synthetic materials, depending on the required filtration efficiency and chemical compatibility. Common materials include polyethersulfone (PES), polyvinylidene fluoride (PVDF), and nylon.
2. Support Layers: These are typically made from polypropylene or polyester, and their primary role is to provide mechanical strength to the membrane, ensuring it maintains its integrity throughout the filtration process.
3. End Caps and Core: These components are often made from polypropylene. The core provides mechanical support to the membrane, while the end caps seal the cartridge, preventing any unfiltered substance from bypassing the membrane.
4. Gaskets and O-rings: These are typically made from elastomeric materials and ensure a watertight seal between the filter cartridge and the housing, preventing leaks and bypass.
5. Pore Size: The membrane’s pore size is a crucial determinant of its filtration efficiency. It can range from sub-micron levels (for applications like bacteria and virus removal) to several microns (for larger particulates).

Each of these components plays a vital role in the overall performance and efficiency of a membrane filter cartridge, underscoring the importance of careful selection and design in the manufacturing process.

Applications of Membrane Filter Cartridges

Membrane filter cartridges find wide-ranging applications across various industries, each demanding unique filtration challenges:

1. Pharmaceutical Industry: They are used in the sterile filtration of injectables, vaccines, and biologicals, as well as for purifying water used in formulations.
2. Food and Beverage Industry: They play a crucial role in ensuring the microbiological safety of products and removing bacteria and other impurities from water, wine, beer, and juice.
3. Biotechnology: In biotech applications, membrane filter cartridges are used for cell culture media filtration, protein purification, and DNA removal.
4. Electronics Manufacturing: They are employed in the semiconductor industry for ultra-pure water filtration.
5. Chemical Industry: They are used for the filtration of solvents, acids, and bases.
6. Water Treatment: They are deployed in desalination plants, wastewater treatment facilities, and in the production of drinking water to remove suspended solids, bacteria, viruses, and other contaminants.

Each of these industries relies on the specific properties of the membrane filter cartridges, such as their pore size, material, and chemical compatibility, to ensure optimal performance and product quality.

Advantages of Using Membrane Filter Cartridges

Membrane filter cartridges offer a myriad of advantages that make them an integral component in numerous industrial applications:

1. High Efficiency: These cartridges provide high filtration efficiency, especially in removing particulates, biological contaminants, and submicron-sized particles.
2. Consistent Performance: They are known for their reliable and consistent performance, offering accurate filtration down to their designated pore size.
3. Longevity: Their robust design and high-quality materials contribute to a longer service life, reducing the frequency of cartridge replacement.
4. Chemical Resistance: They exhibit high resistance to a broad spectrum of chemicals, making them suitable for use in severe chemical conditions.
5. Versatility: With a variety of materials and pore sizes available, these cartridges can be tailored to suit a wide range of applications.
6. Ease of Sterilization: Many membrane filter cartridges can withstand sterilization processes, adding an extra layer of safety, especially in sensitive industries like pharmaceuticals and food and beverages.
7. Low Energy Consumption: They operate at a low pressure, resulting in lower energy consumption compared to other filtration methods.

In summary, the use of membrane filter cartridges can improve process efficiency, enhance product quality, assure safety, and reduce operational costs.

How Membrane Filter Cartridges Differ from Traditional Filters

Membrane filter cartridges present distinct differences when compared to traditional filters:

1. Filtration Mechanism: While traditional filters operate on the principle of depth filtration, membrane filters work through surface filtration. This allows them to trap contaminants on the surface rather than within the filter media, ensuring higher efficiency and easier cleaning.
2. Pore Size: Membrane filter cartridges offer more precise control over pore sizes, allowing for more accurate and consistent filtration. Traditional filters, however, may have varied and inconsistent pore sizes.
3. Material Construction: Typically, membrane filters are constructed from polymeric materials, providing them with superior chemical resistance and longevity. Traditional filters, on the other hand, are often made of paper, fiber, or other organic materials, which may not offer the same level of resistance or longevity.
4. Sterilization: Membrane filters can usually undergo sterilization, providing an added level of safety, especially critical in industries like pharmaceuticals and food and beverage. This feature is less common in traditional filters.
5. Energy Consumption: Thanks to their design, membrane filters typically function at a lower pressure and, hence, consume less energy than traditional filters, which often require a higher operating pressure.

In conclusion, the choice between membrane filter cartridges and traditional filters depends on specific application requirements. However, membrane filter cartridges generally offer greater efficiency, longevity, chemical resistance, and safety.

Choosing the Right Membrane Filter Cartridge for Your Application

When selecting the appropriate membrane filter cartridge for your application, there are several factors to consider.

1. Contaminant Size: Understanding the size of the contaminants you are trying to filter is crucial. The pore size of the filter cartridge should be smaller than the smallest contaminant.
2. Chemical Compatibility: The filter material should be compatible with the fluids being filtered to ensure it will not degrade or react.
3. Flow Rate: The filter cartridge should accommodate the desired flow rate of your process. High flow rates may require larger filters or a multi-cartridge system.
4. Temperature and Pressure Range: The cartridge should be able to withstand the operating temperature and pressure of your process.
5. Regulatory Requirements: If the filtration process is part of a regulated industry (like food and beverage or pharmaceuticals), the filter cartridge may need to meet specific standards or certifications.

Remember, the correct filter cartridge can significantly improve the efficiency and quality of your process, while the wrong choice can cause process interruptions and potential damage to your system. Consulting with a filtration expert can help ensure you choose the correct membrane filter cartridge for your application.

How do Membrane Filter Cartridges Work?

Mechanism of Filtration

Membrane filtration involves a selective process where certain particles are separated from a liquid or gas by passing through a porous membrane. The membrane, with its specific pore size, acts as a physical barrier that blocks contaminants while allowing the filtrate to pass through. This mechanism involves three primary processes:

1. Sieving: The most straightforward process where particles more significant than the membrane’s pores are physically trapped and removed.
2. Interception: When a contaminant following a line of flow within the solution comes within one radius of a pore, it will be intercepted or captured by the pore.
3. Diffusion: Smaller particles move randomly due to Brownian motion. These particles are retained as their movement is obstructed by the tortuous path through the filter’s pores.

These processes work synergistically in the filtration mechanism, ensuring a high level of purity in the filtered solution.

Types of Membrane Filter Cartridges and Their Functions

Membrane filter cartridges come in many types, each designed for specific filtration applications:

1. Microfiltration (MF) Cartridges: These cartridges are primarily used for the removal of large particles, bacteria, and suspended solids. They are typically used in pharmaceutical and food and beverage industries for sterile filtration.
2. Ultrafiltration (UF) Cartridges: These cartridges are designed to remove smaller particles, including viruses and large proteins. Their main applications are in the medical, pharmaceutical, and biotech industries for protein concentration and virus removal.
3. Nanofiltration (NF) Cartridges: NF cartridges are used to separate and concentrate mono and divalent ions, sugars, organic acids, and other small molecules. They are commonly used in water treatment to reduce hardness or in the dairy industry to concentrate whey protein.
4. Reverse Osmosis (RO) Cartridges: The finest level of filtration, RO cartridges are primarily used in water purification and desalination processes. They function by allowing only water molecules to pass through, effectively separating salts and other dissolved solids.

Selecting the appropriate membrane filter cartridge is crucial to achieving optimal filtration performance. This selection should be based on the specific application and the contaminants that need to be removed. A technical consultation with a filtration expert can help in making an informed decision.

Key Factors Affecting the Performance of Membrane Filter Cartridges

Several factors can impact the performance of membrane filter cartridges, which are crucial to consider for achieving optimal filtration results:

• Operating Pressure: Higher operating pressures can increase filtration rates but might also lead to more rapid fouling or potential damage to the membrane.
• Temperature: The temperature of the feed solution can impact both the viscosity and the solubility of contaminants, which can affect the filtration performance.
• pH Level: The pH of the solution can affect the charge of the membrane surface and the constituents, impacting their interaction and, thus, the filtration efficiency.
• Feed Composition: The type and concentration of contaminants in the feed stream can profoundly influence the membrane fouling rate and overall filtration performance.
• Hydraulic Conditions: Conditions like crossflow velocity and turbulence can have a significant effect on fouling rates and filtration efficiency.

Remember, regular maintenance and monitoring of these factors can help prolong membrane lifespan and ensure consistent filtration performance. It’s advisable to consult with a technical expert for specific operational guidelines based on your particular application.

Benefits of Using Membrane Filter Cartridges in Liquid Filtration

Membrane filter cartridges provide substantial advantages in liquid filtration applications, contributing to improved process efficiency and product quality. Here are some key benefits:

• Superior Filtration: Membrane filter cartridges deliver precision filtration, capable of removing particulates, microorganisms, and colloidal matter down to the nanometer scale.
• Greater Flexibility: Available in a wide range of pore sizes and materials, these filters can be tailored to match specific filtration requirements for diverse industries, from food and beverage processing to pharmaceuticals.
• High Durability: Constructed from robust materials, membrane filters offer excellent resistance to a variety of chemicals, ensuring longevity even in demanding operating conditions.
• Improved Process Efficiency: With the ability to handle high flow rates without compromising filtration quality, membrane filters enhance overall process efficiency.
• Cost-Effective: Despite initial investment, the long lifespan and consistent performance of membrane filters can result in significant cost savings over the long term.

Common Challenges Associated with Membrane Filter Cartridges

While membrane filter cartridges offer numerous benefits, they are not without their challenges. Here are some commonly encountered issues:

• Fouling: This is the accumulation of particulates or pollutants on the membrane filter surface, leading to reduced filtration efficiency and shorter filter lifespan. Regular cleaning and maintenance can mitigate this issue.
• Scaling: An issue particularly prevalent in high-mineral content liquids, scaling refers to the buildup of mineral deposits on the filter surface, which can impede flow and filtration performance.
• Chemical Compatibility: While membrane filters are resistant to a variety of chemicals, certain types of corrosive or aggressive chemicals can degrade the membrane, affecting its efficiency and durability. Careful consideration of the chemical composition of the filtrate is crucial.
• Pressure Management: Excessive pressure can cause damage to the membrane filter, leading to compromised filtration quality. Appropriate pressure control safeguards the lifespan and performance of the filter.
• Cost of Ownership: Although membrane filters provide cost savings over the long term, the initial investment can be substantial. Careful budgeting and return on investment calculations are necessary.

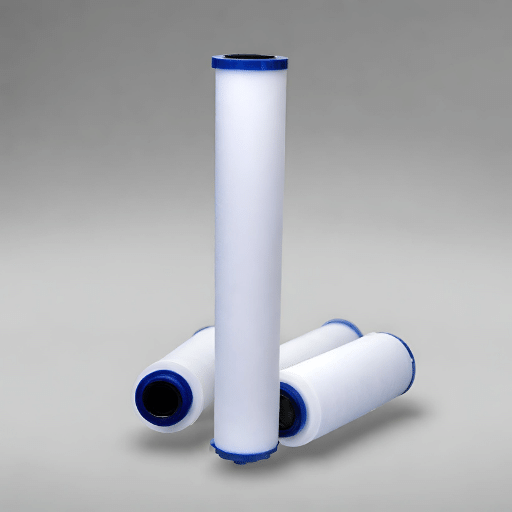

What are the Different Types of Membrane Filter Cartridges?

Exploring Microfiltration Membrane Cartridges

Microfiltration Membrane Cartridges are specialized filters used in various industries to remove small particulate matter from liquids. With pore sizes ranging from 0.1 to 10 micrometers, they effectively strain out microorganisms and tiny particles. However, it’s important to note that they don’t eliminate dissolved solids or smaller contaminants like viruses. For stricter filtration needs, ultrafiltration or nanofiltration may be better options.

Understanding Ultrafiltration Membrane Cartridges

Ultrafiltration Membrane Cartridges are a step up from microfiltration in terms of particulate removal. They are designed with smaller pore sizes ranging from 0.01 to 0.1 micrometers, enabling them to filter out not only microorganisms and particles but also larger molecular-weight solutes. This makes them particularly effective in applications where the removal of proteins, viruses, or endotoxins is required. Despite their higher filtration capability, it’s important to remember that ultrafiltration membranes still don’t remove dissolved ions or small organic compounds. For such specific filtration needs, nanofiltration or reverse osmosis membranes are usually employed.

Nanofiltration and Reverse Osmosis Membrane Cartridges

Nanofiltration (NF) and Reverse Osmosis (RO) Membrane Cartridges offer the highest level of filtration, effectively removing contaminants such as organic molecules, viruses, bacteria, and ions. While providing exceptional filtration, they require higher pressure and careful consideration of filtration needs and budget constraints.

Specialized Membrane Cartridges for High-Purity Applications

Specialized Membrane Cartridges are designed for high-purity applications in various industries like pharmaceuticals, food and beverage, and semiconductors. These cartridges use advanced filtration techniques to achieve stringent filtration levels, ensuring purity by removing particles at the nanometer scale. While they require a higher initial investment, they offer superior performance, longer lifespan, and improved cost efficiency. Choosing the correct cartridge depends on specific process requirements, so understanding the nature of the fluid, contaminants, and desired purity level is crucial.

Comparing Pleated Membrane Cartridges with Other Designs

Pleated Membrane Cartridges offer several distinctive advantages and disadvantages, especially when compared to other membrane designs:

1. Surface Area: Due to their pleated design, these cartridges provide a large surface area for filtration, resulting in higher flow rates and longer cartridge life.
2. Efficiency: Pleated Membrane Cartridges can remove contaminants as small as 0.2 microns, making them highly efficient for most standard filtration needs.
3. Versatility: They are compatible with a wide range of fluid types and are available in various material options to cater to specific process requirements.
4. Cost: While they offer superior performance, Pleated Membrane Cartridges can be more expensive than other designs, which could be a consideration for budget-constrained applications.
5. Maintenance: These cartridges are easily cleaned and replaced, making their upkeep more straightforward than some other membrane designs.

Understanding these points can guide users to make an informed decision based on their specific filtration needs, budget, and maintenance capabilities.

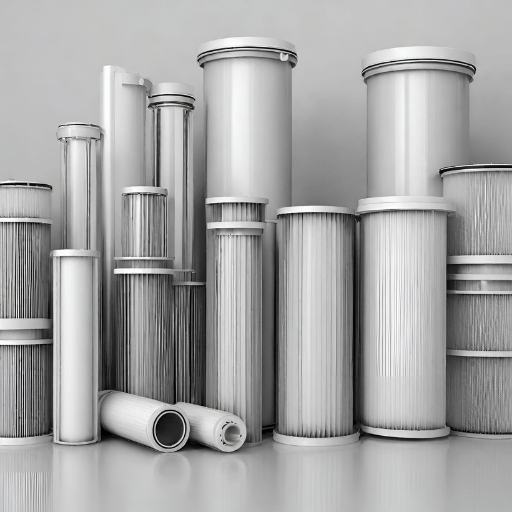

How do you maintain and extend the lifespan of membrane filter cartridges?

Best Practices for Storage and Handling

To maximize the lifespan and efficiency of filter cartridges, appropriate storage and handling procedures are paramount. Here are some best practices to consider:

1. Storage Conditions: Store cartridges in a clean, cool, dry, and well-ventilated location. Avoid areas with direct sunlight and excessive heat or humidity, as these conditions can degrade the filter media and damage the cartridge seals.
2. Shelf Life: While cartridges do not have a strict expiration date, they should ideally be used within five years of manufacture to ensure optimal performance. Always check the manufacturer’s recommendations for specific shelf life information.
3. Inspection: Thoroughly inspect cartridges for any signs of damage before installation. Look for cracks, deformities, or signs of tampering. Any compromised cartridge should be replaced immediately.
4. Handling: Handle cartridges with clean, dry, and gloved hands to prevent contamination. Avoid using sharp objects or tools that might pierce or damage the filter media.
5. Installation: Follow the manufacturer’s instructions for installation. Ensure a proper seal is achieved to prevent leakage and bypass.
6. Disposal: Once a cartridge reaches its end of life, handle it as industrial waste in compliance with local regulations. Some types of cartridges may be recyclable. Always check with the manufacturer or waste management authority for specific disposal instructions.

By adhering to these guidelines, users can help ensure their filtration systems operate effectively and efficiently for as long as possible.

Proper Cleaning and Sanitization Techniques

Cleaning and sanitization are crucial steps in maintaining the integrity and longevity of the cartridges. Here’s how to do it properly:

1. Pre-cleaning: Before any cleaning process, it’s imperative to remove any loose particles or dust from the cartridge. Use a soft brush or compressed air for this purpose.
2. Chemical Cleaning: Use a mild detergent solution to clean the cartridge surface. Never use harsh or abrasive chemicals, as they may damage the filter media.
3. Rinsing: Rinse the cartridge thoroughly with clean water. Ensure all residues of the cleaning agent are washed away.
4. Drying: Let the cartridge air dry in a well-ventilated area. Avoid using a heat source for drying, as it can warp or damage the filter media.
5. Sanitization: Use an approved sanitizing agent and follow the manufacturer’s instructions for application. Always rinse thoroughly after sanitization.
6. Inspection: After cleaning and sanitization, perform another inspection to ensure no damages have occurred during the process.

Testing and Validation Procedures for Membrane Filter Cartridges

To ensure the optimal performance of a membrane filter cartridge, it is essential to perform regular testing and validation. These processes provide insights into the effectiveness of the filter and help identify potential issues that may compromise the filtration system’s functioning. Here’s a step-by-step guide to the testing and validation procedures:

1. Integrity Testing: This procedure verifies the filter’s physical properties and ensures it’s free from defects. It involves applying a test gas (usually air or nitrogen) to one side of the filter and measuring its flow on the other side.
2. Flow Rate Measurement: This test determines the volume of fluid that can pass through the filter per unit of time. If the flow rate is lower than the manufacturer’s specification, it could suggest the filter is clogged or damaged.
3. Retention Testing: This test measures the filter’s ability to remove particles of a specific size from the fluid. It involves running a liquid containing a known size and concentration of test particles through the filter and measuring the concentration of particles in the filtered liquid.
4. Compatibility Testing: This test checks the filter’s compatibility with the fluid it’s designed to filter. It involves running the fluid through the filter and then checking the filtered fluid for any signs of filter material leaching into it.
5. Life Testing: This test estimates the filter’s lifespan under specified operating conditions. It involves running the filter at its normal operating conditions and checking its performance at regular intervals.

Understanding Integrity Testing for Membrane Filter Cartridges

Integrity testing is a crucial step in validating the performance of membrane filter cartridges. It involves non-destructive methods to detect defects and anomalies that may compromise filtration performance. The three main types of integrity tests are Bubble Point, Diffusion Flow, and Pressure Hold. These tests ensure the filter is free from manufacturing defects and can provide reliable filtration. It is essential to conduct integrity testing after sterilization and before filtration operations for optimal performance and reliability.

Importance of Regular Maintenance and Replacement Schedules

Regular maintenance and replacement schedules for membrane filter cartridges are crucial for a variety of reasons:

1. Ensuring Consistent Performance: Regular maintenance helps maintain the efficiency of the filter and provides consistent performance over time.
2. Preventing System Breakdown: Regular check-ups can prevent unforeseen system failures by identifying and rectifying issues at an early stage.
3. Enhancing Lifespan: By replacing worn-out parts and addressing minor issues timely, the lifespan of the filter cartridge can be extended significantly.
4. Ensuring Safety: With ongoing use, filter cartridges can become a source of contamination if not properly maintained. Regular schedule maintenance ensures the filtered fluid is safe for use.
5. Cost Efficiency: While regular maintenance comes at a cost, it can help avoid more extensive, more costly repairs or replacements in the future. Therefore, it is a cost-efficient practice in the long term.

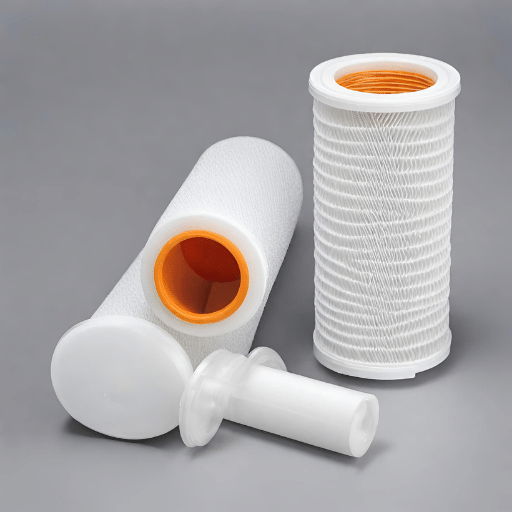

What are the Key Considerations for Selecting Membrane Filter Cartridges?

Compatibility with Different Liquids and Gases

When selecting a membrane filter cartridge, it’s crucial to consider its compatibility with the liquid or gas it will filter. Different materials have varying resistances to chemicals and temperatures. For example, PVDF membrane filters are chemically compatible, while PES membrane filters offer high flow rates and thermal stability. Understanding material compatibility ensures optimal filtration performance and safety.

Temperature and Chemical Resistance

Membrane filter cartridges need to be highly resistant to temperature and chemicals to ensure long-lasting filtration quality. They must withstand high temperatures in industrial applications and resist degradation from chemicals in the fluid being filtered. It’s crucial to refer to the manufacturer’s specifications to determine the cartridge’s resistance. Using a filter cartridge outside of its recommended range can compromise the filtration process and damage the filter. Flow Rate and Filtration Efficiency

Cost-Effectiveness and Long-Term Durability

Consider both upfront and operational costs when evaluating cost-effectiveness. While higher-quality membrane filter cartridges may have a higher initial cost, their superior filtration efficiency and longer service life can lead to lower overall costs in the long run. A durable, high-performing filter cartridge is a strategic long-term investment that pays off in consistent filtration quality, reliability, and cost savings.

Adherence to Industry Standards and Regulatory Requirements

Adherence to industry standards and regulatory requirements is paramount for any membrane filter cartridge. These standards ensure the cartridge’s quality, safety, and efficacy. For instance, cartridges used in food and beverage or pharmaceutical applications should meet FDA requirements. In the science and research field, the filters must comply with ISO standards. Selecting a cartridge that adheres to relevant regulatory standards not only guarantees reliable filtration performance but also avoids potential legal issues and safeguards the reputation of the business. Always check the product specifications for compliance information before making a purchase decision.
