Melt Blown Filter Cartridge: Everything You Need to Know

What is a Melt Blown Filter Cartridge?

What is a Melt Blown Filter Cartridge?

A Melt Blown Filter Cartridge is a crucial component in filtration technology. It is engineered through a unique process known as melt blowing, where a thermoplastic fiber material is extruded and collected into a mat of randomly oriented fibers. The interlocking fiber structure within the cartridge forms a gradient density from outer to inner surfaces, enabling the cartridge to capture and retain particles of varying sizes effectively. These cartridges are widely used in water purification, chemical filtration, and other industrial applications due to their high filtration efficiency, good permeability, and excellent chemical compatibility.

Understanding the Manufacturing Process

The manufacturing process of the blown Filter Cartridge begins with the choice of polymer, which is typically polypropylene due to its thermal properties. The polymer is first heated to its melting point and then extruded through small nozzles, where high-velocity hot air is applied. The force of the air stream causes the molten polymer to form tiny fibers, which are then blown onto a conveyor or a take-up screen to create a self-bonding web. The thickness, density, and microstructure of the web can be easily manipulated by adjusting the process parameters. This flexibility allows for the production of filter cartridges with tailored filtration characteristics to meet specific application requirements.

Exploring the Polypropylene Melt Blown Filter Cartridge

The Polypropylene Melt Blown Filter Cartridge offers excellent depth filtration with its multi-layered structure. It captures a wide range of particle sizes, making it ideal for various industries like food, pharmaceuticals, and electronics. These cartridges provide high particle retention and good chemical resistance and are environmentally friendly due to the thermal bonding process.

The Importance of Melt-Blown Filters in Filtration

Melt-blown filters play a pivotal role in filtration systems across various industry sectors due to their versatile properties. Here are the key points highlighting their importance:

  1. High Filtration Efficiency: The unique structure of melt-blown filters allows for increased efficiency in capturing particles, even microscopic ones, ensuring superior filtration performance.
  2. Customizable: The manufacturing process of melt-blown filters can be easily manipulated to produce filters with specific filtration characteristics, allowing for custom solutions to suit individual needs.
  3. Chemical Compatibility: Melt-blown filters exhibit excellent chemical compatibility, making them suitable for use in different industrial environments without compromising their performance.
  4. Cost-Effective: Due to the thermal bonding process used in their manufacturing, melt-blown filters eliminate the need for additional binding agents or resins, resulting in a cost-effective filtration solution.
  5. Environmentally Friendly: The production process of melt-blown filters is ecologically friendly, as it reduces waste by reusing and recycling the raw material, contributing to sustainable practices.

Graded Density: A Key Feature of Melt Blown Filters

The concept of graded density, unique to melt-blown filters, signifies a few key characteristics that enhance the overall filtration efficiency and lifespan of these filters.

  1. Layered Filtration: Graded density filters consist of multiple layers, with each layer designed to trap a specific size of particles. This layered structure ensures comprehensive filtration across different particle sizes.
  2. Longer Lifespan: The graded density design allows larger particles to be trapped in the outer layers and smaller particles in the inner layers, preventing the filter from getting clogged quickly and thus extending its lifespan.
  3. Improved Efficiency: The ability to capture particles of varying sizes at different layers leads to enhanced overall filtration efficiency, resulting in cleaner and safer end products.
  4. Versatile Applications: Graded density filters, due to their superior particle retention capabilities, find widespread applications across various sectors, including water treatment, pharmaceuticals, food and beverage, and electronics.
  5. Cost Effective: The extended lifespan and improved efficiency of graded density filters contribute to cost savings in the long run, as they reduce the frequency of filter replacements and the associated labor costs.

Examining the Micron Rating and Filtration Grade

Melt-blown filters rely on two key factors: micron rating and filtration grade. The micron rating determines the size of particles a filter can trap, while the filtration grade reflects the cleanliness achieved. Understanding these parameters is crucial for selecting the right filter for specific applications, whether it requires high filtration efficiency or absolute cleanliness.

How Does a Melt-Blown Filter Cartridge Work?

How Does a Melt-Blown Filter Cartridge Work?

Examining the Pore Structure and Water Filtration Mechanism

The pore structure of a melt-blown filter cartridge determines its filtration efficiency. Water passes through interconnected pores, trapping larger particles on the outer layer and more minor impurities deeper inside. The filter uses mechanical filtration, adsorption, and depth filtration to remove coarse and fine particulates, effectively purifying water.

The Role of Groove and Pleat Design in Filtration Efficiency

The groove and pleat design play a significant role in enhancing the filtration efficiency of melt-blown filter cartridges. Here are key ways in which they contribute:

  1. Increased Surface Area: A well-designed pleat structure expands the filter surface area, enabling it to capture more particulates and impurities without compromising the flow rate.
  2. Optimized Flow Dynamics: Groove designs can guide the fluid flow, ensuring efficient use of the entire filter surface and promoting uniform dirt loading.
  3. Improved Structural Stability: The wrinkles and grooves add structural strength to the filter cartridge, allowing it to withstand varying pressures and reducing the risk of bypass.
  4. Enhanced Dirt Holding Capacity: The increased surface area and optimized flow dynamics significantly boost the filter’s dirt holding capacity, leading to longer filter life and reduced maintenance costs.
  5. Adjustable Filtration Performance: By altering the pleat and groove design, manufacturers can tailor the filter’s performance to meet specific filtration requirements, offering greater flexibility to end-users.

Understanding the Dirt-Holding Capacity of Melt-Blown Filters

The dirt-holding capacity of a melt-blown filter is a crucial factor in assessing its performance and suitability for filtration tasks. It refers to the amount of particles and impurities the filter can hold before replacement or cleaning. Factors like design, material properties, and operating conditions influence this capacity. High dirt-holding capacity means a longer service life and better filtration efficiency. Understanding these factors helps in selecting the right filter for optimal performance and cost savings. Consultation with filtration experts is recommended for specific requirements.

Assessing Chemical Resistance and Liquid Filtration

Chemical resistance and liquid filtration are essential factors to consider when choosing a melt-blown filter. Chemical resistance refers to the filter’s ability to maintain performance when exposed to different chemicals, while liquid filtration measures its efficiency in removing particles from a liquid. Factors like pore size, flow rate, and operating pressure impact filtration. Accurate evaluation requires understanding the application’s needs and testing filter samples. Involving application experts and filter manufacturers is recommended for selecting the right filter.

Exploring the Filtration Process for Contaminants

Contaminant filtration occurs in stages, starting with coarse filtration for large-sized particles like silt, sand, and rust. Medium filtration tackles smaller sediments and microorganisms, while microfiltration addresses minute contaminants, including bacteria. Filter efficiency varies by stage, and the choice should match specific contaminant profiles. For complex needs, a multi-stage system may be required for optimal results.

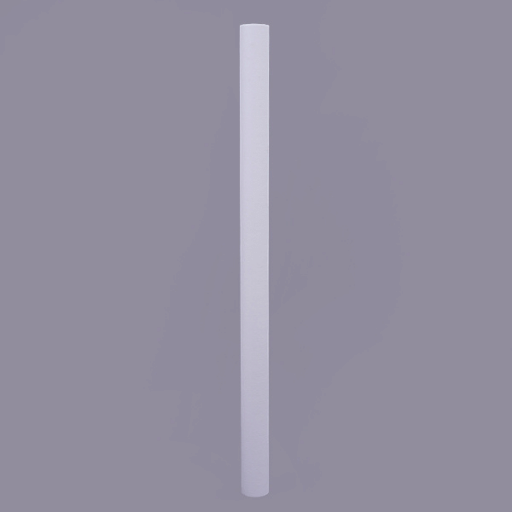

What Are the Applications of Melt-Blown Filter Cartridges?

What Are the Applications of Melt-Blown Filter Cartridges?

Melt Blown Filter Cartridges find their use in a wide array of applications due to their superior filtration capabilities. They are heavily used in:

  1. Water Filtration in Potable Water Systems: These filters effectively remove pollutants from drinking water, ensuring its safety and cleanliness.
  2. Industrial Use in Plating Solutions and Chemical Filtration: The high chemical resistance of these filters makes them ideal for use in industrial settings, where they can manage impurities in plating solutions and filter chemicals efficiently.
  3. Rust and Sediment Removal for Residential Water Filtration: Melt-blown filters effectively remove rust and sediment particles from residential water systems, improving the water quality and protecting appliances from damage.
  4. High-Performance Filtration in Liquid Processing: Owing to their excellent filtration efficiency, they find extensive use in various liquid processing applications, including beverage production, pharmaceutical manufacturing, and chemical processing.
  5. Applications in Grading and Filtering Microfibers: Melt-blown filters are instrumental in grading and filtering microfibers, enhancing the quality and performance of products in textiles and other industries.

These diverse applications underscore the versatility and effectiveness of Melt Blown Filter Cartridges.

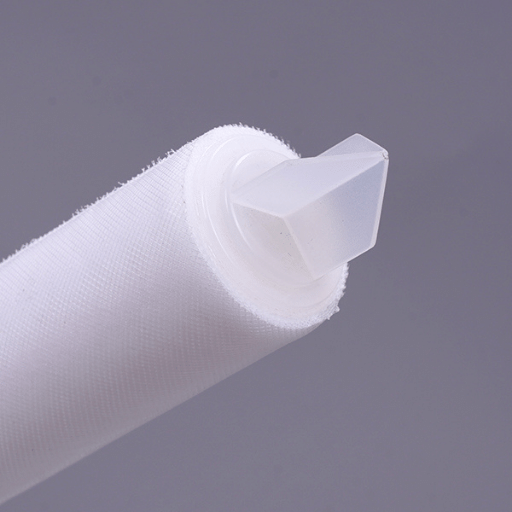

Understanding the Benefits of Melt-Blown Filter Cartridges

Understanding the Benefits of Melt-Blown Filter Cartridges

Exploring the Additives for Enhanced Filtration

To enhance their filtration capabilities, Melt Blown Filter Cartridges often incorporate various additives. These include:

  • Antimicrobial Agents: These substances help inhibit the growth of bacteria and other microbes on the filter surface, thereby extending the lifespan of the filter and maintaining its effectiveness.
  • Hydrophilic Substances: The addition of hydrophilic substances improves the filter’s water absorption capacity, enhancing its performance in water filtration applications.
  • Surface Modifiers: These additives are used to enhance the chemical and physical properties of the filter surface, including its hydrophobicity or hydrophilicity, thereby improving its filtration efficiency and compatibility with various substances.
  • Adsorbents: These substances, such as activated carbon or zeolites, are incorporated to enhance the filter’s ability to trap and remove specific types of contaminants, such as heavy metals, toxins, and organic compounds.

The use of these and other additives allows for the customization of Melt Blown Filter Cartridges to meet specific filtration requirements, enhancing their versatility and efficacy across a broad range of applications.

Examining the Graduated Density and Binder for Filtration Efficiency

Graduated density and binders are critical factors in enhancing the filtration efficiency of Melt Blown Filter Cartridges. The graduated density design captures larger particles on the outer layers while smaller particles are filtered inward, improving overall filtration. Binders stabilize the filter’s fibers, ensuring structural integrity and preventing collapse under fluid pressure. This combination optimizes the performance of the cartridges, making them practical for various filtration needs.

Assessing the Flow Rate and Filtration Performance

Flow rate and filtration performance are essential in assessing the efficacy of Melt Blown Filter Cartridges. The flow rate indicates the volume of fluid processed, while filtration performance gauges the ability to remove contaminants. Balancing these parameters is crucial for optimal filtration outcomes. Factors like filter design, contaminant type, and conditions can influence filter performance. Careful evaluation and selection based on these parameters ensure enhanced water quality and system efficiency.

The Role of Meltblown Technology in Depth Filtration

Meltblown technology plays a critical role in depth filtration, offering several key benefits:

  1. High Efficiency: Meltblown technology allows for increased filtration efficiency and is capable of removing even sub-micron-size particles, making it ideal for stringent filtration requirements.
  2. Flexible Fiber Diameter: The technology enables control over fiber diameter during production, allowing customization to meet specific filtration needs.
  3. Gradient Density: The meltblown process naturally results in gradient density across the filter, enhancing its ability to capture particles of various sizes.
  4. High Dirt Holding Capacity: Meltblown filters, due to their porous structure, have a high dirt holding capacity, extending their lifespan and reducing replacement frequency.
  5. Wide Range of Applications: Owing to its flexibility and effectiveness, melt-blown technology finds usage in a variety of industries, from water treatment to pharmaceuticals, chemicals, and food and beverage processing.
  6. Economical: Despite its high performance, melt-blown technology is cost-effective, offering a superior filtration solution without incurring high expenses.

Chemical and Rust Resistance for Longevity

Meltblown filters offer impressive chemical and rust resistance due to synthetic polypropylene fibers. These filters maintain longevity by preventing corrosion and degradation, even in aggressive environments. With non-metallic properties, they eliminate the risk of rusting. Meltblown technology is ideal for durable, high-performance filtration solutions.

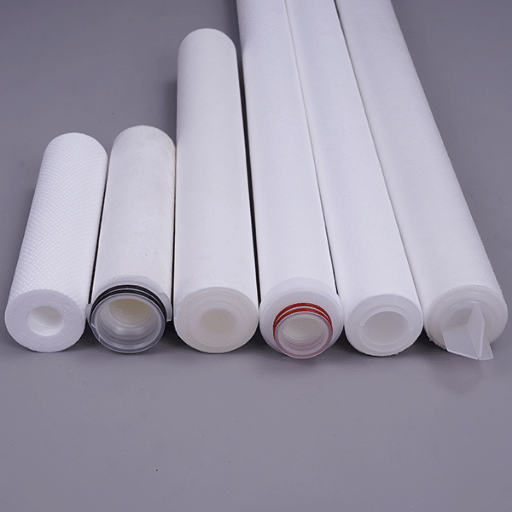

Choosing the Right Melt-Blown Filter Cartridge for Your Needs

Choosing the Right Melt Blown Filter Cartridge for Your Needs

Understanding the Different Micron Ratings and Filter Media

Selecting the right melt-blown filter requires an in-depth understanding of micron ratings and different filter media. Here is what you need to know:

  1. Micron Ratings: Micron ratings refer to the size of particles a filter can effectively remove. They play a critical role in ensuring the desired level of filtration. A lower micron rating indicates a filter capable of removing smaller particles. For example, a 5-micron filter can remove particles as small as 5 micrometers, providing a higher level of filtration than a 50-micron filter.
  2. Polypropylene Filters: These are renowned for their excellent chemical resistance and high dirt-holding capacity. Suitable for a wide range of applications, these filters can withstand temperatures up to 79 degrees Celsius.
  3. Nylon Filters: Nylon filters are known for their high strength and toughness, excellent resistance to heat, and good chemical resistance. They are suitable for high-temperature applications.
  4. Glass Fiber Filters: These filters provide high dirt-holding capacity and reasonable flow rates. They are ideal for use in applications where high efficiency is required and are resistant to a wide range of chemicals.
  5. Cellulose Filters: While not as resistant to chemicals and heat as synthetic fiber filters, cellulose filters offer excellent flow rates and lower initial pressure drops. They are best suited for water and oil-based liquid filtration.
  6. Stainless Steel Filters: Characterized by their high durability and resistance to high temperatures and corrosive substances, these filters are suitable for demanding industrial applications.

These factors, along with your specific filtration needs, will guide you in selecting the correct melt-blown filter cartridge.

Assessing the Construction and End Cap Design

Construction and end cap design contribute significantly to a filter cartridge’s performance and compatibility with filter housings. The building should ensure a secure fit within the housing, prevent bypass, and facilitate easy replacement. End cap designs vary, with some offering a better seal and others providing more excellent compatibility with a range of housings.

Comparing Case Options and Availability

When selecting a melt-blown filter cartridge, assess the case options available. Some suppliers offer bulk case options, providing cost-efficiency for large-scale applications. Additionally, consider the supplier’s stock availability to ensure timely filter replacement.

Filter Cartridge Selection Based on Contaminant Type

The contaminant type in your fluid application is a crucial determinant for filter cartridge selection. Specific melt-blown filters may be better suited for particulate contaminants, while others may excel at removing colloidal substances or microorganisms.

Ensuring Compatibility and Performance with Various Liquid Types

Finally, ensure that your chosen melt-blown filter cartridge is compatible with the type of liquid in your application. Compatibility with a wide range of fluids – from water to chemicals – is one of the advantages of melt-blown technology. However, the performance can vary, so it’s essential to consider the specific fluid type when choosing a filter cartridge.

References

  1. Your Premier Melt Blown Filter Cartridge Manufacturer: This comprehensive guide covers everything from the basic definition, design, material, and technology of melt-blown filter cartridges.

  2. What are Melt Blown Filter Cartridges? This source provides an overview of what melt-blown filter cartridges are and how they’re made, including detailed information on the manufacturing process.

  3. Quick Guide to Melt-Blown Cartridge Filters: This short guide provides insights into the lifespan and maintenance requirements of melt-blown cartridge filters.

  4. Polypropylene Melt Blown Filter Cartridge: Everything You…: This source offers a deep dive into polypropylene melt-blown filter cartridges, including micron options and applications.

  5. Unveiling the Power of Melt-Blown Filter Cartridges: An informative blog post that outlines the advantages of melt-blown filter cartridges in industrial applications.

  6. How to choose a reliable melt-blown cartridge filter…: A helpful guide for those looking to purchase melt-blown cartridge filters, with tips on selecting a reliable manufacturer.

  7. Melt-blown filter cartridge: This source provides detailed information on the construction and range of melt-blown filter elements offered by Brother Filtration.

  8. Melt-Blown Sediment Filter Cartridges: This page describes how melt-blown filter cartridges are used as decontamination mediums, with a focus on the melt-blowing technique.

  9. Melt-Blown Filters: An Overview: An academic overview from ScienceDirect that discusses the melt-blown process and its application in filter production.

  10. The Melt-Blown Process and Filter Media: An article from JSTOR that provides a technical explanation of the melt-blown process and how it is used to create filter media.
