High-quality pleated Filter Cartridges for Efficient Sediment Filtration

Pleated filter cartridges are a highly efficient solution for sediment filtration. They are designed with a large surface area, which increases their capacity to capture sediments and other particulate matter. These cartridges are primarily made from polypropylene or polyester, materials known for their excellent chemical resistance and durability. The pleats in the filter increase the overall filtration area as compared to standard filters, thereby enhancing the efficiency of sediment removal. Moreover, they are available in various micron sizes, making them suitable for a wide range of applications in industries such as water treatment, food and beverage, chemicals, and pharmaceuticals.

The Basics of Pleated Filter Cartridges

The Basics of Pleated Filter Cartridges

Understanding the Pleated Design

The pleated design is a key feature that differentiates these cartridges from other types of filters. The pleats are essentially folded in the filter material that increases the surface area available for filtration. This design enhancement not only provides superior sediment holding capacity but also improves the overall flow rate. It means that pleated filter cartridges can filter a greater volume of fluid over the same period when compared to non-pleated counterparts. The pleats are precision-engineered, ensuring consistency in filter performance and longevity. As the fluid passes through the wrinkles, particles are trapped on the surface and within the pleat structure, effectively removing sediments and other contaminants.

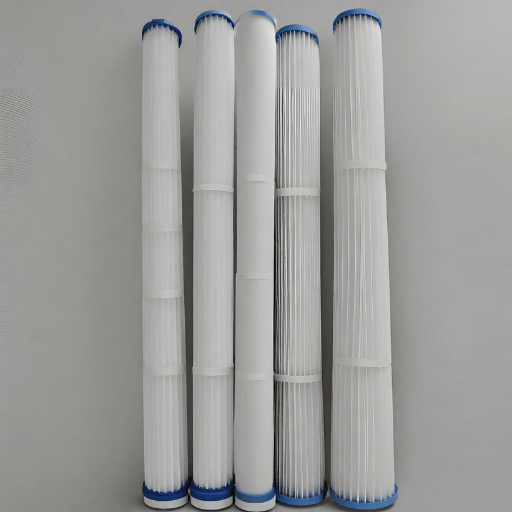

Benefits of Using Pleated Cartridges

Benefits of Using Pleated Cartridges

High Filtration Efficiency

Due to their expanded surface area, pleated filter cartridges offer high filtration efficiency. This means they can trap and hold a more significant amount of particulate matter, resulting in cleaner, more precise output.

Long Service Life

Pleated cartridges generally have a long service life, which translates to fewer replacements and lower costs over time. This durability is primarily due to the robust polypropylene or polyester material used in their construction.

Versatile Applications

Pleated cartridges come in a variety of micron sizes, enabling them to be used in a wide array of industries. Whether it’s for water treatment, food and beverage production, or pharmaceutical processes, there’s a pleated cartridge suitable for the application.

Improved Flow Rate

The pleated design of these cartridges improves the overall flow rate of fluids, thereby increasing system efficiency. They can filter more fluid volume over the same period as compared to non-pleated alternatives.

Easy Maintenance

Pleated filter cartridges are easy to clean due to their pleated design. This ease of maintenance can further extend the filter’s service life and reduce operational costs.

Environmentally Friendly

Lastly, due to their durability and long service life, pleated filter cartridges are a more environmentally friendly option. They result in less waste as they need to be replaced less frequently than other filter types.

Pleated Depth vs. Other Filter Media

When comparing pleated depth filters to other filter media, several key points stand out:

  1. Surface Area: Due to the pleated design, pleated depth filters have a larger surface area compared to other filters. This results in higher dirt-holding capacities and extended cartridge life.
  2. Efficiency: Pleated depth filters offer high efficiency due to their ability to trap and hold more contaminants. In comparison, other filter media may be less efficient, depending on their design and construction.
  3. Flow Rate: Pleated filters typically provide improved flow rates. This is due to their pleated design, which allows for a larger volume of fluid to pass through the filter media.
  4. Maintenance: With their easy-to-clean design, pleated depth filters can be maintained with minimal effort, which is not always the case with other filter media types.
  5. Applications: Pleated depth filters are versatile and can be used across a wide range of industries. While certain other filter media may be industry-specific, pleated filters offer broad applicability.
  6. Environmentally Friendly: Owing to their long service life and lesser need for replacement, pleated depth filters are an eco-friendly choice. Other filter media types, particularly disposable ones, can contribute more to environmental waste.

However, it’s important to note that the choice of filter media should ultimately depend on the specific requirements of the filtration process, the nature of the contaminants, and the necessary purity standards.

Essential Factors: Micron Ratings

Micron ratings are another crucial factor when considering pleated filter cartridges. This rating indicates the size of the particles the filter can effectively capture. Lower micron ratings denote finer filtration, capturing smaller particles. For instance, a filter with a micron rating of 5 will trap particles as small as 5 microns. Conversely, a filter with a higher micron rating, such as 50, will allow smaller particles to pass through while capturing larger ones. Matching the micron rating to your system’s specific filtration needs is vital for achieving optimal effectiveness and efficiency. Additionally, the selection should account for the nature and size of the contaminants in your fluid, the desired purity level, and the operational pressure and flow rate of your system.

Choosing the Right Pleated Cartridge Filters

When it comes to selecting the suitable pleated filter cartridges for your specific application, several key aspects should be considered. Firstly, you need to have a clear understanding of the nature and size of the contaminants present in your system. Secondly, the operational parameters of your system, such as pressure and flow rate, should be considered. High-pressure systems might require filters with more robust construction, while higher flow rates would benefit from filters with larger surface areas.

The desired purity level of the output is another important consideration. If ultra-pure fluid is required, then a filter with a lower micron rating will be necessary, even if it results in a slower flow rate due to the finer filtration. On the other hand, if the purity requirements are more lenient, a filter with a higher micron rating might be more suitable to prevent unnecessary slowdown of the flow.

Lastly, the compatibility of the filter material with the fluid being filtered is a vital aspect to consider. Certain materials may not be suitable for certain types of fluids due to potential chemical reactions or the risk of material degradation. Therefore, it’s crucial to choose a filter cartridge made of a material that is resistant to the fluid being filtered.

By carefully considering these factors, you can select the most appropriate pleated filter cartridge for your particular application, ensuring optimal performance and longevity of your filtration system.

Maximizing Efficiency in Sediment Filtration

Maximizing Efficiency in Sediment Filtration

Comparing Dirt Holding Capacity

When comparing dirt-holding capacity, pleated filter cartridges often outperform other types of filters. The pleats increase the surface area of the filter, allowing for a greater volume of sediment capture before the filter becomes clogged. This leads to less frequent filter changes, reducing downtime, and increasing operational efficiency. The filter material and micron rating also influence the efficiency of sediment capture. Higher micron ratings typically allow for higher dirt-holding capacity but at the cost of lower purity output. Conversely, lower micron ratings result in cleaner production but may have lower dirt-holding capacity. Hence, choosing the right balance based on your specific requirements is critical to maximizing the efficiency of sediment filtration.

Long Service Life of Pleated Cartridges

One of the distinguishing advantages of pleated filter cartridges is their long service life. The pleated design not only increases the filter’s overall surface area but also enhances its structural durability. This increased strength allows the cartridge to withstand a higher volume of particulate matter, thereby extending the filter’s lifespan. Additionally, most pleated cartridges are designed with cleanability in mind, meaning they can often be cleaned and reused multiple times before replacement is required. This reusability factor further contributes to the longevity of the cartridge, making pleated filters a cost-effective choice for many filtration applications. It’s essential, however, to ensure that the cleaning and maintenance procedures outlined by the manufacturer are strictly followed to maximize the filter’s service life.

High Flow Rates with Pleated Filter Cartridges

Pleated filter cartridges also excel in accommodating high flow rates thanks to their unique design and properties. Here are a few reasons why:

  1. Larger Surface Area: The pleated design offers a greater filter surface area compared to other types of filter cartridges. This larger area allows for increased flow rates without compromising filtration efficiency.
  2. Lower Pressure Drop: Pleated cartridges typically exhibit a lower pressure drop across the filter. This translates to higher flow rates and less energy required for pumping, both of which are beneficial for operational efficiency.
  3. Efficient Sediment Capture: Despite handling higher flow rates, pleated cartridges do not sacrifice their ability to capture sediment effectively. This is attributable to their high dirt-holding capacity, ensuring the output water quality remains high even under heavy flow conditions.
  4. Versatility: Pleated cartridges are available in a range of micron ratings, allowing them to be tailored to specific applications and their flow rate requirements. This versatility can further enhance flow rate capacity based on individual system needs.

In conclusion, if high flow rates are a critical requirement for your filtration system, pleated filter cartridges are an excellent option to consider.

Sediment Removal Ratings for Pleated Filter Cartridges

Pleated filter cartridges are available in an array of sediment removal ratings, often referred to as micron ratings. This parameter signifies the smallest particle size that the filter can trap. For instance, a filter with a 5-micron rating can capture particles as small as 5 microns. Lower micron ratings indicate the ability to capture smaller particles, enhancing the filtration efficiency. Pleated filter cartridges are versatile, offering a wide range of micron ratings, from sub-micron levels to 100 microns or more. This makes them suitable for various applications, from fine particulate removal in sensitive processes to coarse filtration in high-flow industrial settings. When choosing a pleated filter cartridge, it is crucial to match the sediment removal rating with the specific needs of your application to achieve optimal filtration performance.

Optimizing Water Filtration Using Pleated Cartridges

Optimizing your water filtration system using pleated cartridges involves several key considerations. Firstly, the cartridge size should be chosen correctly to ensure a high dirt-holding capacity and extended service life. It’s also important to accurately select the appropriate micron rating that aligns with the specific filtration needs of your application. Regular maintenance and timely replacement of cartridges are essential to keep the system functioning at peak performance. Operating conditions, such as temperature and pressure, should also be taken into account when selecting pleated filter cartridges. If these parameters are high, choosing cartridges made from materials that can withstand such conditions is crucial. Lastly, the cartridge should offer a good balance between cost and performance, providing high-quality filtration without incurring excessive expenses. By carefully considering these factors, you can optimize your water filtration system using pleated cartridges, ensuring high-quality output and efficient operation.

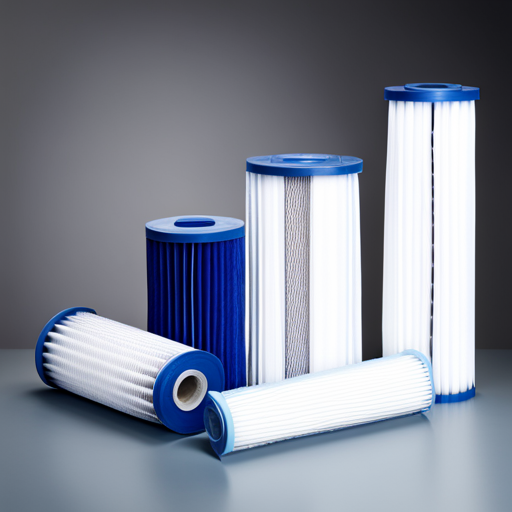

Ordering and Replacing Pleated Filter Cartridges

Ordering and Replacing Pleated Filter Cartridges

Finding the Right Cartridge Replacement

Finding the suitable replacement for your pleated filter cartridge involves careful evaluation of several factors. First, identify the type and size of the current cartridge in your system, as compatibility is critical to ensuring seamless operation. Second, consider the filtration requirements of your specific application, including the desired purity level and flow rate. To maintain optimal performance, select a replacement cartridge that aligns with these parameters and offers superior dirt-holding capacity. Third, the material of the cartridge should be suitable for operational conditions like temperature and pressure and resistant to any chemicals present in the fluid. Lastly, it is advisable to source replacements from reputable manufacturers that guarantee quality and offer reliable after-sales support. By following these guidelines, you will be able to find the suitable replacement for your pleated filter cartridge that optimizes your water filtration system’s efficiency and longevity.

Ensuring Proper Installation for Efficient Filtration

Proper installation of pleated filter cartridges is crucial for efficient filtration. Start by checking the housing for cleanliness and integrity, ensuring there are no cracks or damages that could affect performance. When inserting the cartridge, make sure it fits securely in the housing and that all seals are properly positioned to prevent leaks. Once the cartridge is installed, it’s necessary to prime the system by running water through it for a few minutes. This will flush out any loose particles and ensure the cartridge is ready for use. Routinely inspect and replace the cartridge as per the manufacturer’s recommendations to maintain optimal performance. By providing correct installation and regular maintenance, you can extend the lifespan of your pleated filter cartridges and enhance the efficiency of your filtration system.

Benefits of Using Pleated Water Filters

Pleated water filter cartridges offer numerous advantages that make them an excellent choice for many filtration applications:

  1. High Surface Area: The pleated design significantly increases the surface area available for filtration, leading to higher dirt-holding capacities and longer life spans for the cartridges.
  2. Efficiency: Pleated filters typically have high-efficiency rates, capturing a more significant percentage of particles from the water, which ensures cleaner, safer water.
  3. Versatility: These filters are available in various pore sizes, making them suitable for a wide range of applications, from prefiltration of larger particles to precision filtration of smaller ones.
  4. Durability: Pleated filters are generally made of robust materials that can withstand a range of operational conditions, such as temperature, pressure, and chemical exposure.
  5. Cost-Effective: Due to their longevity and high dirt-holding capacity, pleated filter cartridges can be more cost-effective than other types of filters over time.
  6. Eco-Friendly: Many pleated filters are washable and reusable, reducing environmental impact and waste.

Remember to consider these benefits when choosing a filtration solution, and always ensure your selected filter meets the specific requirements of your application for optimal performance.

Replacing Filters for Industrial Filtration

Pleated filter cartridges, due to their durability and high dirt-holding capacity, typically require less frequent replacements than other filter types. Nonetheless, consistent maintenance is vital to upholding the filter’s performance and the quality of filtration.

To replace the filters, follow these steps:

  1. Turn Off the System: Always start by shutting down the filtration system and releasing any pressure within.
  2. Remove the Old Filter: Open the filter housing and carefully remove the spent cartridge.
  3. Clean the Housing: Before inserting a new cartridge, clean the filter housing thoroughly to remove any residual particles.
  4. Install the New Filter: Insert the new pleated filter cartridge into the housing, ensuring it fits securely.
  5. Seal and Restart the System: After confirming the filter is correctly placed, close the housing securely and restart the system.

It’s critical to monitor the system after the replacement to ensure it’s operating correctly. Note that the frequency of replacement would depend on the quality of the feed water and the specific requirements of your application. Always refer to the manufacturer’s guidelines for best practices.

Service and Maintenance for Pleated Cartridges

Regular service and maintenance of pleated filter cartridges are fundamental to ensuring their longevity and utmost filtration efficiency. Here are some critical steps to follow:

  1. Routine Visual Inspection: Regularly inspect the filter cartridges for signs of wear, tear, or damage. Take note of any discoloration or deformities that may indicate the need for a replacement.
  2. Performance Monitoring: Keep track of the system’s pressure drop. An increase in this value often signifies a clogged filter, necessitating immediate replacement.
  3. Scheduled Cleaning: Depending on the application, pleated filter cartridges may require periodic cleaning. This process usually involves backwashing or air purging to remove accumulated particles. Always refer to the manufacturer’s instructions for cleaning guidelines.
  4. Document Maintenance Activities: Record all inspection, cleaning, and replacement activities. This log can help identify patterns or issues, inform maintenance schedules, and ensure compliance with any applicable regulatory standards.
  5. Proactive Replacement Planning: Given the critical role filters play in system performance, consider maintaining a stock of replacements. This step enables prompt response to issues, minimizes downtime, and ensures continuity of operations.

Remember that these are general suggestions. The specific requirements for service and maintenance may vary based on the type of pleated filter cartridge, its application, and the overall system design. Always consult the product manual or the manufacturer for explicit instructions.

Understanding the Materials and Construction

Understanding the Materials and Construction

Exploring Different Filter Media Options

Pleated filter cartridges come in a variety of filter media, each having unique properties that make them suitable for different applications:

  1. Polypropylene: Known for its excellent chemical resistance and high dirt-holding capacity, this material is widely used in several industries, such as food and beverage, electronics, and pharmaceuticals.
  2. Polyester: This robust material provides high resistance to a wide range of chemicals. It is often used in harsh environments where high temperatures and abrasive fluids are present.
  3. Glass Fiber: Offering high efficiency and good resistance to chemicals, glass fiber cartridges are often used in critical applications requiring fine filtration, such as pharmaceuticals and semiconductor manufacturing.
  4. Cellulose: Made from plant fibers, cellulose media is cost-effective and offers good all-round performance. It is commonly used in water purification and chemical processing.
  5. Nylon: This versatile material has good chemical resistance and is especially useful in filtering out particulates from water, solvents, and other fluids.

These are just some of the options available; the choice of filter media will largely depend on the specific application and the nature of the particles to be filtered. Always consult with a filtration specialist or the manufacturer to determine the most suitable filter media for your needs.

Maintaining Filtration Efficiency with End Cap Design

The design of the end caps on pleated filter cartridges plays a pivotal role in maintaining filtration efficiency. While seemingly a tiny component, end caps ensure a secure seal, preventing bypass and maintaining the integrity of the filtration process. Different end cap designs can be made of materials such as polypropylene or stainless steel, each offering distinct advantages. Polypropylene end caps, for instance, are resistant to many chemicals and are often used in corrosive fluid applications. Stainless steel end caps, on the other hand, are suitable for high-temperature applications. The choice of end cap should align with the requirements of the filtration application, the filter medium, and the operational environment. As always, it’s recommended to consult with a filtration specialist or the manufacturer for the optimal end cap design for your specific needs.

Comparing the Performance of Polypropylene vs. Polyester Cartridges

When evaluating the performance of pleated filter cartridges, it’s crucial to compare the characteristics of popular materials like polypropylene and polyester.

  1. Polypropylene Filter Cartridges:
  • Chemical Resistance: Polypropylene exhibits excellent chemical resistance, especially against most acids, alkalis, and some solvents, making it suitable for a broad range of corrosive fluid applications.
  • Temperature Tolerance: With a maximum temperature capacity of around 80°C (176°F), polypropylene is best suited for lower-temperature operations.
  • Cost: Generally, polypropylene filter cartridges are more cost-effective, making them an attractive choice for budget-conscious operations.
  • Moisture Absorption: Polypropylene is hydrophobic, meaning it has a low moisture absorption rate, which can be beneficial in specific filtration applications.
  1. Polyester Filter Cartridges:
  • Chemical Resistance: Polyester provides good resistance against a wide range of chemicals. However, it is not as resistant to strong acids and alkalis as polypropylene.
  • Temperature Tolerance: Polyester can withstand higher temperatures, up to approximately 135°C (275°F), making it an ideal choice for high-temperature applications.
  • Cost: Polyester cartridges tend to be more expensive than their polypropylene counterparts, reflecting their enhanced characteristics.
  • Strength and Durability: Polyester inherently has a higher burst strength and superior abrasion resistance, which may lead to a longer service life in harsh conditions.

The choice between polypropylene and polyester filter cartridges will largely depend on the specific parameters of your application. Consulting with a filtration specialist or the manufacturer directly will help you make the most informed decision.

Exploring Configurations for High Dirt Holding Capacity

In the realm of industrial filtration, high dirt-holding capacity is a vital feature that enhances the efficiency and longevity of filter cartridges. One prominently used configuration that amplifies dirt-holding capacity is Pleated Filter Cartridges.

Pleated filter cartridges employ a high surface area folded (or pleated) design, maximizing the available filtration surface and thereby boosting the dirt-holding capacity. The pleats create more space for contaminants to be trapped, extending the lifespan of the filter and reducing the frequency of cartridge replacement.

The pleated design also promotes increased flow rates and reduced pressure drops. This means that more fluid can pass through the filter in less time while maintaining the integrity of the filtration process. Given their unique configuration, pleated filter cartridges are an excellent choice for applications where high dirt-holding capacity is a must, such as in water treatment, food and beverage processing, and pharmaceutical manufacturing.

Remember, the materials used in the pleated filter cartridges, whether polyester, polypropylene, or otherwise, will also influence the dirt-holding capacity, as each material has unique characteristics and resistances. As always, understanding the specific parameters of your application will guide you towards the most appropriate configuration.

The Role of O-Rings in Securing Pleated Cartridges

O-rings play a pivotal role in securing pleated filter cartridges, ensuring an airtight seal, and preventing any bypass of unfiltered fluid. These circular gaskets are typically placed in a groove and compressed between two or more parts during assembly, creating a seal at the interface. The effectiveness of an O-ring, and therefore the overall filtration process, can be influenced by factors such as its material composition, size, and the pressure it’s subjected to.

For example, O-rings made from different materials will exhibit different resistances to chemicals, temperatures, and pressures. Choosing the appropriate O-ring material for your specific application is crucial for maintaining the integrity of the seal and the longevity of the filter cartridge. Proper installation is also crucial to ensure that the O-Ring functions correctly, with care taken to avoid over-compression or under-compression.

In summary, O-rings are an essential component in the efficient operation of pleated filter cartridges, playing a fundamental role in securing the cartridges and ensuring an optimal filtration process.


  1. WaterFiltersFast is an e-commerce website that provides a wide range of water filters, including sediment water filters. It’s a good source for understanding different types of filters and their uses. Source
  2. Pentair – A manufacturer’s website that provides detailed product information about their high-quality pleated filter cartridges. This source is reliable for specific technical details of the products. Source
  3. Pure Water Products, LLC – An informative article on this site explains how sediment filters work, the role of pleated filter cartridges, and the benefits of using them. Source
  4. ResearchGate – A scholarly article discussing the efficiency of sediment filtration using different types of filter cartridges, including pleated ones. This source is great for a deep, scientific understanding of the topic. Source
  5. US Water Systems – An article that provides practical tips on choosing and using sediment filters, including pleated filter cartridges. Source
  6. Environmental Science & Technology Journal – A study published in this journal examines the efficiency of various filters in removing sediment from water. Source
  7. WQA (Water Quality Association) – A resource providing a glossary of terms related to water filtration, including sediment filtration. This source can help in understanding the technical jargon associated with the topic. Source
  8. Lenntech is a manufacturer’s website that provides detailed information about their pleated filter cartridges and their efficiency in sediment filtration. Source
  9. Water Technology Magazine – An article discussing the latest trends and technologies in water filtration, including sediment filters. Source
  10. NSF International – A global public health organization that provides standards and certification for water treatment products. Their site offers information about the safety and effectiveness of various water filters. Source

These sources provide a comprehensive overview of the topic “High-Quality Pleated Filter Cartridges for Efficient Sediment Filtration.” They offer insights into the functioning of these filters, their applications, tips on their usage, and advancements in the field.
