High-Quality Capsule Filters: Essential Components for Efficient Filtration Solutions

Capsule filters are self-contained filtration devices designed for ease of use and dependability in a variety of applications. With their compact design, high flow rates, and wide range of filtration media, these filters are an optimal solution for many industrial processes. They are typically used when the highest purity filtration is required, such as in the pharmaceutical, biotech, food and beverage, and microelectronics industries. Built to ensure filtration efficiency and integrity, capsule filters offer the benefit of being fully disposable, thus reducing the risks associated with contamination.

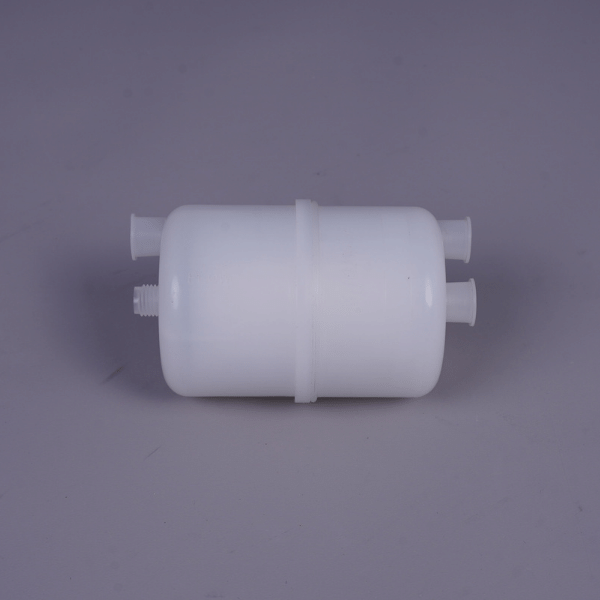

What Are Capsule Filters and Their Application in Filtration?

The Composition and Purpose of Capsule Filters

Capsule filters are comprised of two key components: the housing and the filter media. The accommodation, typically made of a robust polymer, protects the filter media and ensures a leak-proof seal. The filter media, which can be made from various materials, including polyethersulfone, nylon, or polypropylene, is the heart of the filter. It is designed to intercept and retain contaminants while allowing the desired materials to pass through.

The central purpose of capsule filters is to facilitate high-purity filtration. They are engineered to effectively remove particulates, microorganisms, and even pyrogens from fluids, ensuring the safety and consistency of the end product. In the pharmaceutical industry, for instance, capsule filters are essential in sterile filtration processes, protecting drugs from contamination and thereby safeguarding public health. Similarly, in the food and beverage industry, such filters ensure the removal of harmful bacteria, ensuring that products are safe for consumption.

Applications of Capsule Filters in Laboratory and Industrial Settings

Capsule filters are versatile and can be employed in a variety of laboratory and industrial settings due to their reliable filtration capabilities.

1. Pharmaceutical and Biotechnology: Capsule filters are crucial in the production of drugs and biologics, as they can efficiently remove microorganisms and particulates, thus preserving sterility in the final product.
2. Food and Beverage Industry: These filters are used to ensure the safety and quality of food and beverage products by eliminating harmful bacteria and particulates.
3. Microelectronics: In the microelectronics industry, capsule filters are used to filter chemicals used in semiconductor fabrication to ensure the high purity required for manufacturing.
4. Laboratory Research: Capsule filters are often used in laboratories for sample preparation, ensuring accuracy and consistency in experimental results.
5. Chemical and Process Industry: Capsule filters are used for the filtration of process fluids, solvents, and gases, ensuring product quality and protection of downstream equipment.
6. Water Treatment: They play a vital role in water treatment processes, removing contaminants and ensuring clean, safe water.

Utilizing Polypropylene in Capsule Filters for Enhanced Filtration

Polypropylene, a versatile thermoplastic polymer, is often utilized in the construction of capsule filters. Thanks to its robust physical properties, it enhances the filtration efficiency of these filters. Polypropylene is resistant to most acids, alkalis, and organic solvents, which makes it a suitable material for a wide range of applications. Moreover, its low moisture absorption rate ensures that it maintains its mechanical properties even in humid environments. In terms of filtration, polypropylene capsule filters exhibit high flow rates with low-pressure drops, making them an economical choice for many industries. They also provide excellent compatibility with a wide range of chemicals, enabling their use in diverse fields, from pharmaceutical production to water treatment processes. Polypropylene’s inherent hydrophobic nature makes these filters ideal for venting applications and filtration of gases. In a nutshell, the utilization of polypropylene in capsule filters enhances their efficiency, versatility, and durability, making them a favored choice in many industries for reliable and effective filtration.

Membrane Capsule Filters for Specific Filtration Needs

Membrane capsule filters are designed to meet specific filtration needs. These filters are equipped with a semi-permeable membrane, which effectively separates particles, microorganisms, and other impurities based on size exclusion. The material of the membrane can vary, usually chosen based on the required degree of filtration and compatibility with the substance to be filtered. Membrane capsule filters are highly appreciated in sectors where precise and reliable filtration is needed, such as in pharmaceutical manufacturing, biotech applications, food and beverage industries, and laboratory research. They are available in different pore sizes and types, including nylon, polyethersulfone (PES), and polytetrafluoroethylene (PTFE) membranes. Each class offers unique properties—for instance, PTFE membrane capsule filters are hydrophobic and used primarily for air and gas filtration. In contrast, PES membranes are hydrophilic and used for the filtration of aqueous solutions. The specific filtration determines the choice of membrane capsule filter needs at hand, contributing to their versatility and wide-ranging applicability.

Disposable Capsule Filters for Single-Use Filtration Requirements

Disposable capsule filters are specifically designed for single-use filtration requirements. These filters are typically used in applications where sterilization or extensive cleaning is not feasible or economical. The filters come pre-sterilized and can be readily deployed into the process line, eliminating potential risks associated with cleaning and sterilization. Disposable capsule filters offer the advantage of reducing cross-contamination, making them an ideal choice for sensitive applications such as pharmaceutical production, biotech processes, and food and beverage manufacturing. They are available in a variety of materials and pore sizes to cater to different filtration needs. After use, these filters can be disposed of safely and efficiently, ensuring minimal environmental impact. In sum, disposable capsule filters offer a cost-effective, reliable, and environmentally-conscious solution for single-use filtration needs.

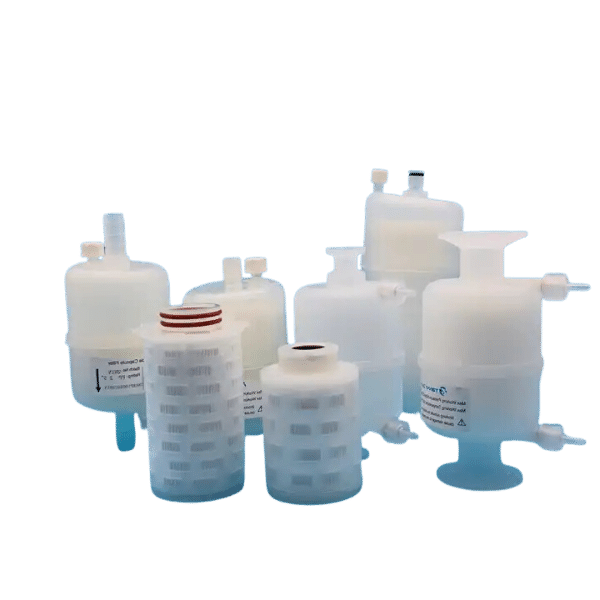

How to Choose the Right Capsule Filter

Key Factors to Consider for Effective Filtration Product Selection

1. Type of Fluid to be Filtered: The nature of the fluid—whether aqueous, organic, gaseous, or chemical—greatly influences the choice of membrane material. Certain materials may not be compatible with specific fluids, which could lead to ineffective filtration or even damage to the filter.
2. Pore Size: The pore size of the filter must be chosen based on the smallest particle size that needs to be removed from the fluid. The pore size is directly related to the filter’s retention efficiency.
3. Filtration Volume: The volume of fluid to be filtered impacts the size and configuration of the filter. Higher volumes may require larger filters or a capsule filter with a higher surface area.
4. Operating Conditions: Factors such as pressure, temperature, and flow rate can affect the performance and durability of the filter. The filter should be able to withstand the operating conditions of the filtration process.
5. Regulatory Compliance: The filter should comply with relevant industry standards and regulations, particularly in sensitive areas such as food and beverage production and pharmaceutical manufacturing. Compliance ensures the safety and suitability of the filter for its intended use.
6. Environmental Impact: Consider the disposal of the filter after its use. A filter that can be disposed of safely and efficiently is preferable from an ecological standpoint.

Understanding the Variation in Filter Media for Different Applications

In the realm of filtration, the choice of filter media varies considerably according to the application. For instance, in the pharmaceutical industry, where sterility and precision are crucial, membrane filters made from polyethersulfone or polyvinylidene fluoride may be used due to their excellent microbial retention and chemical compatibility. Conversely, in the food and beverage sector, cellulose or polypropylene filters might be preferred for their affordability and efficacy in removing particulates without impacting taste or quality. Also, in specific chemical processes where high temperatures and corrosive substances are involved, metal or ceramic filters could be the go-to choice for their robustness and heat resistance. Thus, it’s evident that the filter media must be carefully chosen to meet the specific demands of a particular application, ensuring both efficiency and compliance.

Design Features to Look for in Capsule Filters for Optimal Performance

1. High Filtration Efficiency: For optimal performance, capsule filters should possess high filtration efficiency to ensure they effectively remove unwanted particles and contaminants.
2. Durable Construction: The capsule filter should be well-constructed to withstand varying operational conditions, such as pressure variations and temperature changes.
3. Chemical Compatibility: The filter material should be resistant to a wide range of chemicals to ensure its longevity and effectiveness in different application contexts.
4. Flow Rate: A good capsule filter should have an optimal flow rate, ensuring the filtration process is efficient without causing unnecessary holdup of the process fluid.
5. Certification: The capsule filter should meet relevant industry standards and hold certificates that verify its quality and reliability.
6. Low Extractables: The filter should have low extractable levels to prevent unwanted substances from leaching into the filtrate, ensuring the purity of the final product.
7. Easy to Install and Replace: Capsule filters that are easy to install and replace can significantly reduce downtime and increase the overall efficiency of the filtration process.

Sanitary Flange and Hose Barb Connections for Applications in Liquid Filtration

Sanitary Flange and Hose Barb Connections are integral aspects of liquid filtration systems, including those utilizing capsule filters. These components ensure secure and sterile connections, making them ideal for high-purity applications in industries such as pharmaceuticals, biotechnology, and food and beverage.

Sanitary Flanges provide a smooth, non-contaminating, and leak-proof connection, crucial for maintaining sterility in the filtration process. They are constructed from materials resistant to corrosion and can endure high temperatures and pressures, ensuring optimal performance and longevity.

On the other hand, Hose Barb Connections are designed for flexibility and ease of installation. They provide a tight and secure connection to hoses, making them particularly useful in applications requiring frequent assembly and disassembly. The barbed design ensures that the hose stays firmly attached, reducing the risk of contamination from leaks.

When selecting between these two, one must consider the specific demands of the application, including sterility requirements, pressure, and temperature conditions, and the frequency of assembly and disassembly. Proper selection and use of these components can significantly enhance the performance and efficiency of capsule filters in liquid filtration applications.

Gas Filtration with Capsule Filters: Identifying the Ideal Product

Choosing the ideal product for gas filtration using capsule filters requires careful consideration of several vital factors. These include the type of gas being filtered, the particulate load, operating pressure and temperature, and sterility requirements. Particle retention efficiency, for instance, is a crucial parameter – capsule filters with higher retention efficiencies can remove smaller particulates from the gas stream, resulting in higher purity levels.

Materials of construction are another significant aspect. Capsule filters made of materials such as Polyethersulfone (PES), Polytetrafluoroethylene (PTFE), and Nylon are commonly used in gas filtration applications due to their broad chemical compatibility and high-temperature resistance.

Lastly, consider the housing design of the capsule filter. A robust, leak-proof design ensures optimal performance and reduced risk of contamination.

By carefully considering these factors, you can select the ideal capsule filter for your gas filtration application, ensuring efficient operation and high-quality results.

Documentation and Stocking of Capsule Filters

Importance of Documentation for Regulatory Compliance and Quality Assurance

1. Regulatory Compliance: Proper documentation of capsule filters ensures compliance with regulatory standards set by authorities such as the FDA and ISO. These documents confirm that the filters have been manufactured and tested according to set guidelines, ensuring their safety and effectiveness.
2. Quality Assurance: Documentation serves as proof of quality, showing that the capsule filters have passed stringent quality tests. These documents may include test reports, certifications, and quality control data that indicate compliance with the required specifications.
3. Traceability: In case of a product recall or quality issue, comprehensive documentation can enable swift and effective traceability. This means that any defects can be traced back to their source, allowing for efficient problem resolution.
4. Operational Efficiency: Accurate and accessible documentation can streamline operations, making it easier for staff to understand the product specifications, installation process, and maintenance requirements of capsule filters.
5. Customer Confidence: Comprehensive documentation can boost the confidence of end-users in your product, as it provides reassurance about the product’s quality, safety, and reliability. This can enhance your brand reputation and foster customer loyalty.

Stocking and Purchasing Considerations for Capsule Filters

When stocking and purchasing capsule filters, several important considerations must be taken into account:

1. Filter Efficiency: The efficiency of a capsule filter is a key deciding factor. Make sure the filter has a high retention rate for particles of the size you need to filter out.
2. Compatibility: Ensure the materials used in the filter are compatible with the fluid you plan to filter. Incompatibilities can lead to filter failure or contamination of the liquid.
3. Scalability: Consider whether the filter sizes available fit with your operational scale. While smaller filters may be cheaper, they may not be as cost-effective for large-scale operations.
4. Certifications: Look for filters that come with certificates. These indicate the filters have met specific industry standards.
5. Supplier Reputation: Opt for a supplier with a good reputation for quality and service. This can be crucial if you encounter problems or need technical support.
6. Stock Availability: Regular availability of stock is essential to avoid delays in your operations.
7. Pricing: Lastly, balance the cost of the filter against its performance and lifespan. It may be more cost-effective to invest in a higher-priced filter that offers superior performance and a longer service life.

Ordering Customizable Solutions for Specific Filtration Challenges

1. Identify Your Requirements: Understand the specific filtration challenges your operation faces. This could be related to the volume, the nature of the substances being filtered, or diverse operating conditions.
2. Engage Experts: Collaborate with filtration experts who have extensive experience in designing and manufacturing custom capsule filters. They can assist you in identifying and developing the most suitable solution.
3. Consider Filter Material: The material of the filter is crucial when designing a custom solution. Each material has its unique properties and is suitable for specific applications. Ensure that you choose the fabric that best suits your needs.
4. Prioritize Efficiency and Durability: Custom filters should not only meet your specific filtration requirements but also ensure high efficiency and durability. This will enhance your operation’s productivity and reduce the need for frequent filter replacements.
5. Budget Appropriately: Custom solutions might be more costly than off-the-shelf products. However, they offer the advantage of being tailored precisely to your needs, thereby offering better value over the long term.
6. Plan for Future Needs: Remember to take into account potential future changes in your operations. This will make it easier to adapt your custom filtration solution to evolving needs.
7. Check for Compliance: Ensure that the customized capsule filters comply with all relevant safety and quality standards.

Ensuring Availability of Capsule Filters for Ongoing Filtration Needs

Ensuring the availability of capsule filters for ongoing filtration needs is a multi-step process that requires careful planning and coordination. First, it’s crucial to accurately forecast your filtration needs, taking into account variables such as production volume, process changes, and potential scale-up. Next, establish a regular order schedule with your filter supplier to ensure a continuous supply of filters. It’s also advantageous to maintain a proper inventory of filters on-site as a contingency measure. Moreover, establishing a solid relationship with a reliable supplier can help ensure the timely delivery of high-quality capsule filters, even during periods of high demand or supply chain disruptions. Remember, a successful filtration process is not just about choosing the correct filter; it’s also about managing supply effectively to ensure uninterrupted operation.

Requesting Additional Information and Documentation for Capsule Filters

In order to ensure the safety, compliance, and effectiveness of your capsule filters, it’s essential to request and review all relevant information and documentation from your filter supplier. This may include product specifications, performance data, compliance certificates, and user manuals. Please pay particular attention to the filter’s compatibility with your specific application and its adherence to industry standards. Don’t hesitate to ask your supplier for any additional information or clarification you might require. This proactive approach to information gathering will not only help you make an informed decision but also ensure the successful integration of capsule filters into your operations. Remember, knowledge is power when it comes to selecting and utilizing capsule filters effectively.

Integration of Capsule Filters in Point-of-Use Filtration

Advantages of Capsule Filters in Laboratory Scale Filtration

Capsule filters offer a range of benefits in laboratory-scale filtration:

1. Compact design: Capsule filters are small and lightweight, making them perfect for lab-scale operations where space is often limited.
2. Versatility: Available in a variety of materials and pore sizes, capsule filters can be used for a wide array of applications, including the filtration of gases, liquids, and solvents.
3. Ease of use: With their self-contained design, capsule filters are easy to install and replace. There’s no need for complicated assembly or specialized tools.
4. High integrity: Many capsule filters are designed with built-in prefiltration layers, ensuring high dirt-holding capacity and long service life.
5. Safety: As disposable units, capsule filters minimize cross-contamination risks, making them ideal for sensitive lab processes.
6. Compliance: Capsule filters often come with detailed documentation, demonstrating compliance with various industry standards and regulations.

Single-Use Capsule Filters for Point-of-Use Filtration in Various Industries

In various industries, single-use capsule filters have become an indispensable tool for point-of-use filtration. In the pharmaceutical industry, capsule filters are commonly used for sterile filtration of injectables, ophthalmic solutions, and biologicals to ensure patient safety. In the food and beverage industry, they are used to enhance product shelf life by removing spoilage organisms and maintaining the integrity of the product. In electronics manufacturing, capsule filters serve a critical role in the filtration of process water and chemicals used in semiconductor production, ensuring the highest level of cleanliness and reducing defect rates in the final product. Similarly, in the chemical industry, capsule filters are used to filter out particulates from liquid chemicals, ensuring the purity of the product. Overall, the broad compatibility with different types of fluids and the capability to handle various flow rates make single-use capsule filters an optimal choice for many industries.

Sanitary Construction and Integrity Testing of Capsule Filters

The sanitary construction and integrity testing of capsule filters are crucial aspects to ensure their effectiveness and safety. Capsule filters are typically constructed from materials that are FDA-approved and compliant with USP Class VI standards, ensuring their suitability for a variety of critical applications. Furthermore, they often feature a hydrophilic or hydrophobic PTFE membrane, which guarantees high flow rates and excellent chemical compatibility.

Integrity testing is a critical step in validating the reliability of capsule filters. It involves a series of tests, including bubble point, diffusive flow, and pressure hold tests. The bubble point test determines the pressure at which liquid is forced out of the filter, confirming the filter’s pore size. The diffusive flow test measures the rate of airflow through the wetted filter under pressure, demonstrating the filter’s ability to retain bacteria. The pressure hold test verifies the absence of macroscopic defects in the filter membrane. These tests ensure the filter’s integrity, confirming that it is free from defects and capable of performing its function effectively. All tests adhere to rigorous industry standards, ensuring the reliable and safe use of capsule filters.

Wide Range of Capsule Filters for Different Applications and Industries

Capsule filters cater to a wide range of applications across various industries, accommodating specific needs and requirements. Here are some of the critical uses:

1. Pharmaceutical industry: Capsule filters are indispensable in drug manufacturing and testing. They ensure product sterility and eliminate pyrogens, particulates, and bacteria from solutions.
2. Biopharmaceutical industry: In bioprocessing applications, they are used for cell culture media sterilization, bioburden reduction, and clarification of cell harvests, ensuring the purity and safety of biotherapeutics.
3. Food and Beverage industry: Capsule filters serve in applications like beer and wine clarification, removal of yeast and bacteria, and filtration of syrups, oils, and other food products.
4. Chemical industry: They are used for the filtration of solvents, chemicals, gases, and photoresists, ensuring the consistency and quality of chemical products.
5. Electronics industry: In semiconductor manufacturing, capsule filters are applied to provide ultra-pure water and chemicals, ensuring the cleanliness of manufacturing processes.
6. Laboratory settings: Capsule filters are used in sample preparation, solvents, and reagent filtration, ensuring accurate and reliable analytical results.

Each application requires capsule filters with specific characteristics, including pore size, filter diameter, and chemical compatibility. The wide range of available options makes capsule filters a versatile solution across industries.

Application of Capsule Filters in Microelectronics for Liquid and Gas Filtration

In the microelectronics industry, capsule filters play a pivotal role in both gas and liquid filtration processes, which is imperative for ensuring the high standards of cleanliness required. For liquid applications, these filters efficiently remove particulates, colloids, and microorganisms from chemicals used in processes such as etching, cleaning, and rinsing. This ensures the final product quality, preventing defects that could impair the performance and reliability of electronic components.

Gas filtration, on the other hand, involves the removal of particulate contaminants and moisture from process gases. Capsule filters are utilized in the filtration of gases used in lithography, deposition, and etching processes. They help maintain the purity of process gases, preventing contamination that could negatively impact manufacturing yields.

The effectiveness of these filters is contingent on their physical parameters—such as pore size and filter diameter—and their compatibility with the chemical properties of the substance being filtered. With a range of options available, capsule filters are a versatile and integral tool in the microelectronics industry.
