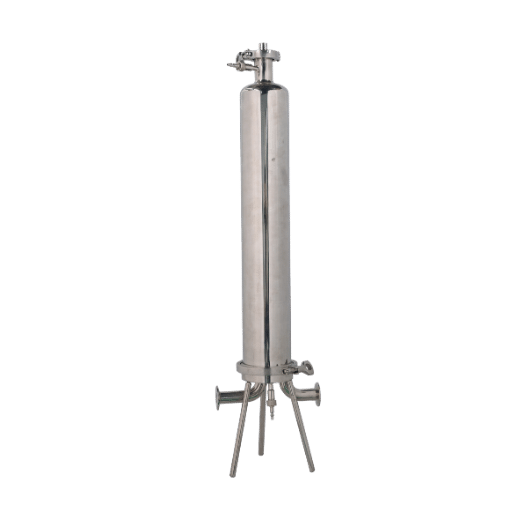

Cartridge Filter Housing for Industrial Filtration Applications

What is a cartridge filter housing?

A cartridge filter housing is a versatile piece of equipment used in a variety of industrial filtration applications. Constructed typically from stainless steel, polypropylene, or other durable materials, this housing unit is designed to accommodate different types of filter cartridges. The primary function of the cartridge filter housing is to hold these cartridges securely, ensuring an optimal seal and preventing any bypass of unfiltered fluid. The housing can be configured to suit a wide range of flow rates, pressures, and processing conditions. It is an essential component in systems requiring high-purity filtration, such as in the pharmaceutical, food, beverage, and chemical industries.

Function and structure of cartridge filter housing

The cartridge filter housing performs several critical functions and possesses a unique structure tailored to its application.

1. Filtration Process: The primary function of the cartridge filter housing is to facilitate the filtration process, removing unwanted particles from the fluid passing through it. The filter cartridges inside the housing accomplish this task.
2. Sealing Mechanism: The housing provides a robust sealing mechanism, preventing any bypass of unfiltered fluid. This mechanism ensures that only the filtered fluid reaches the final stage.
3. Adaptability: The structure of the cartridge filter housing is adaptable and able to accommodate different types of filter cartridges according to the filtration needs of the process.
4. Flow Regulation: The housing contains features that allow it to manage a variety of flow rates, making it suitable for a wide range of applications.
5. Pressure and Temperature Endurance: Constructed from durable materials like stainless steel or polypropylene, the cartridge filter housing can withstand high pressures and temperatures, making it reliable for heavy-duty industrial use.
6. Ease of Maintenance: Most cartridge filter housings are designed for easy maintenance, with features that allow for quick and straightforward cartridge replacement, cleaning, and inspection.

Advantages of using cartridge filter housing

Cartridge filter housings offer a host of benefits that make them an advantageous choice in a variety of industrial applications:

1. High Efficiency: Cartridge filter housings offer high filtration efficiency, effectively removing even microscopic particles from fluids.
2. Versatility: Due to its adaptable structure, it can accommodate various filter cartridges, providing flexibility in choosing the filtration level.
3. Durable: The construction materials of the cartridge filter housing, such as stainless steel or polypropylene, ensure its durability, even under extreme pressures and temperatures.
4. Wide Range of Applications: Thanks to its ability to manage different flow rates, the cartridge filter housing can be utilized in a broad spectrum of industrial applications.
5. Cost-effective Maintenance: The design of most cartridge filter housings allows for easy, quick, and cost-effective maintenance, including cartridge replacement, cleaning, and inspection.
6. Environmentally-Friendly: Cartridge filters are often reusable and recyclable, making filter housings a more sustainable and environmentally friendly option.
7. Space-saving Design: Their compact size makes cartridge filter housings ideal for installations where space is a constraint.

Typical industrial applications of cartridge filter housing

Cartridge filter housings are employed across a myriad of industries due to their versatility, durability, and efficiency. Here are some typical industrial applications:

1. Pharmaceuticals: In pharmaceutical manufacturing, these housings are used to ensure the purity of water, processing chemicals, and medicinal solutions.
2. Food and Beverage: The food and beverage industry relies on cartridge filter housings to maintain the cleanliness and safety of the products, removing potential contaminants from water, syrups, oils, and wines.
3. Oil and Gas: These housings are critical in the oil and gas industry for separating impurities from petroleum products and natural gas.
4. Water Treatment: In water treatment plants, cartridge filter housings enable the effective filtration of impurities from drinking and wastewater.
5. Chemical Processing: They are used in chemical processing plants to filter out particulates and impurities from various chemical solutions.
6. Electronics: In the electronics industry, they are leveraged to filter chemicals used in the manufacturing of semiconductors and electronic components.
7. Paints and Coatings: Cartridge filter housings ensure the purity of paints and coatings by filtering out unwanted particulates.
8. Power Generation: These housings are used in power plants to filter cooling and lubricating oils to ensure optimal machinery operation.

Different types of cartridge filter housing materials

Other types of cartridge filter housing materials include:

1. Stainless Steel: Stainless steel housings are renowned for their durability, high-temperature resistance, and corrosive resistance. They are typically used in food and beverage, pharmaceutical, and chemical processing industries.
2. Polypropylene: Polypropylene housings are lightweight, resistant to many chemicals, and are often used in applications involving acids, bases, salts, and organic solvents. They are commonly utilized in water treatment, electronics, and chemical processing industries.
3. PVC (Polyvinyl Chloride): PVC housings are popular due to their resistance to oxidation and degradation. They are commonly used in water treatment applications and corrosive environments.
4. CPVC (Chlorinated Polyvinyl Chloride): CPVC housings offer similar benefits to PVC but with improved temperature and fire resistance. They are employed in hot water applications and industries with strict fire regulations.
5. PVDF (Polyvinylidene Fluoride): PVDF housings have excellent chemical corrosion resistance, high purity, and good mechanical strength, making them suitable for pharmaceutical, biotech, and semiconductor industries.

Each material offers unique benefits and is selected based on the specific requirements of each application.

How to choose the proper cartridge filter housing for specific applications

When choosing the proper cartridge filter housing for particular applications, several factors need to be considered:

1. Type of Fluid: The nature of the fluid to be filtered will largely dictate the material of the filter housing. This is due to different materials’ varying resistance levels to other chemicals and temperatures. For instance, stainless steel housings may be ideal for high-temperature fluids, while polypropylene housings might be better suited for acids, bases, salts, and organic solvents.
2. Operational Environment: The conditions under which the filter will operate can impact the choice of housing materials. For instance, in a corrosive environment, PVC or PVDF housing could be more suitable due to their excellent resistance to chemical corrosion.
3. Filter Size: Depending on the volume of fluid that needs to be processed and the filtration speed, different sizes of cartridge filter housings might be required. Larger systems might need more extensive or multiple housings to accommodate the necessary cartridge filters.
4. Budget: The cost of different materials can vary greatly. It’s essential to balance the need for performance and durability with the budget available.
5. Regulatory Compliance: Certain industries have strict regulations concerning the materials that can be used. For instance, the food and beverage and pharmaceutical industries often require stainless steel due to its high purity and resistance to contamination.

By taking these factors into account, the optimal cartridge filter housing for a specific application can be identified.

How does a cartridge filter housing work?

Understanding the filtration process in cartridge filter housing

The filtration process in a cartridge filter housing can be understood in a series of steps:

1. Inlet: The fluid to be filtered enters the housing through the inlet. The design of the housing ensures that the liquid is evenly distributed across the surface of the cartridge filter.
2. Filtration: As the fluid moves through the cartridge filter, particles and contaminants are captured on the surface and inside the filter media. The size of the particles that can be removed depends on the filter’s pore size.
3. Outlet: The filtered fluid then exits the cartridge filter housing through the outlet. The outlet is typically on the opposite side of the housing to the inlet to ensure the fluid passes entirely through the filter.
4. Cleaning and Replacement: Over time, the filter may become blocked with particles and require cleaning or replacement. How often this needs to be done depends on the nature of the fluid being filtered and the volume of particles being removed.

By understanding these steps, it’s easier to grasp how a cartridge filter housing works and how it can be best utilized in different applications.

Flow and pressure considerations in cartridge filter housing

Flow and pressure are two crucial considerations in the cartridge filter housing. The efficiency of a filtration system is mainly dependent on the rate at which the fluid is flowing and the pressure applied to push it through the filter.

Flow Rate: The flow rate, commonly measured in gallons per minute (GPM), denotes the volume of fluid passing through the filter over a set period. For optimum filtration, it’s essential to choose a filter with a flow rate compatible with your system’s requirements. If the flow rate is too high, it might lead to ineffective filtration, as the fluid might not get adequate contact time with the filter media. Conversely, a low flow rate can lead to unnecessary pressure drop and a decrease in system efficiency.

Pressure: Pressure, typically measured in pounds per square inch (psi), is the force exerted by the fluid on the filter. A filter must be able to withstand the maximum pressure of the application. If the pressure is too high, it can cause the filter to rupture, leading to system failure. Understanding the pressure requirements of your system will help determine the proper cartridge filter housing that can withstand those pressures while ensuring effective filtration.

By considering these parameters, you can select the appropriate cartridge filter housing for your application, ensuring optimal performance and longevity of your filtration system.

Types of filter cartridges compatible with cartridge filter housing

Several types of filter cartridges are compatible with cartridge filter housing, each designed to suit specific filtration needs:

1. Pleated Filter Cartridges: These cartridges are comprised of a pleated material that provides a larger surface area for filtration. The pleats increase the filter’s capacity to capture more particles, making them ideal for applications requiring high purity levels.
2. Depth Filter Cartridges: These cartridges use a porous material that traps particles within the depth (thickness) of the media. They are best suited for applications where high-efficiency particle removal is required.
3. Carbon Filter Cartridges: These cartridges incorporate activated carbon, which is effective at removing chlorine, organic compounds, and odors from the fluid. They are commonly used in food & beverage, pharmaceutical, and water purification applications.
4. Ceramic Filter Cartridges: Made from diatomaceous earth, these cartridges excel at removing fine particles and bacteria. They are often used in applications where microbiological purity is required.
5. Spun Bonded Filter Cartridges: These cartridges are made from fibers that are spun together to form a gradient density from the outer to inner surfaces. They are known for their high dirt-holding capacity and are often used in pre-filtration applications.

By understanding the properties and benefits of each type, you can choose the most suitable filter cartridge for your specific application.

Maintenance and cleaning of cartridge filter housing

Regular maintenance and cleaning of cartridge filter housing are essential to ensure its efficient functioning and to prolong its service life. Here are some fundamental steps to follow:

1. Regular Inspection: Conduct a routine check for any visible damages or changes in the performance of the filter. This could include a drop in pressure, a change in the quality of output fluid, or an increase in energy consumption.
2. Cartridge Replacement: Over time, the filter cartridges become clogged with the particles they capture. Depending on the type of cartridge and the quality and quantity of fluid being filtered, cartridges may need to be replaced at regular intervals.
3. Cleaning the Housing: After removing the used cartridge, clean the housing thoroughly with a suitable cleaning agent, ensuring all residual particles and microbes are removed.
4. Seal Check: Inspect the seals and gaskets for wear and tear or damage. Replace them if necessary to prevent leaks.
5. Reassemble and Test: After the new cartridge is installed and the housing is reassembled, run a test cycle to ensure everything is working correctly. Monitor the system for any pressure changes or leaks.

Remember, always adhere to the manufacturer’s guidelines for the maintenance and cleaning of your specific cartridge filter housing system.

Comparing single-cartridge vs. multi-cartridge filter housing

When choosing between single and multi-cartridge filter housing, there are several key factors to consider.

Single Cartridge Filter Housing is ideal for small-scale applications where the fluid volume is low. These are cost-effective options that are easy to maintain and service. However, they may not be suitable for more extensive operations due to their limited filtering capacity.

Multi-Cartridge Filter Housing, on the other hand, is designed to handle larger volumes of fluid. They can support anywhere from three to over one hundred cartridges, making them a preferred choice for industrial applications. While they offer greater filtration capacity, their maintenance can be complex and time-consuming due to the multiple cartridges involved.

In summary, the choice between single and multi-cartridge filter housing depends mainly on the volume of fluid to be filtered, the required filtration capacity, and maintenance considerations. Always consult with a filtration expert or the equipment manufacturer to make an informed decision.

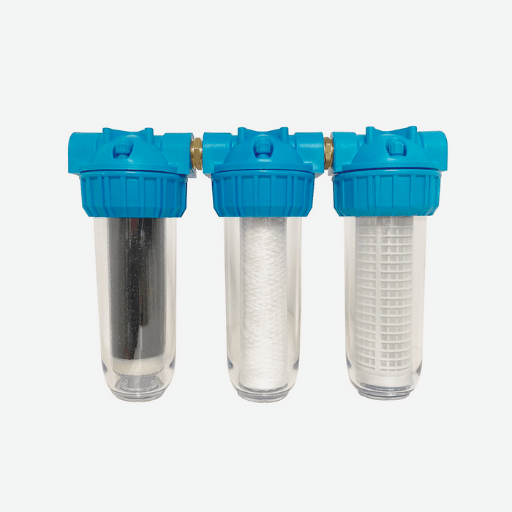

What are the critical features of high-flow cartridge filter housing?

Benefits and applications of high-flow cartridge filter housing

High-flow cartridge filter housing offers a range of benefits and caters to diverse applications.

1. Increased Filtration Efficiency: High-flow cartridge filter housing provides improved filtration efficiency, effectively removing contaminants from large volumes of fluid.
2. Space Saving: Given their high capacity, these systems occupy less space compared to traditional cartridge filter housing, making them ideal for industries where space is a constraint.
3. Lower Maintenance Cost: High-flow cartridge filter housing units are designed for long-term use, leading to lower maintenance and replacement costs.
4. Versatility: They can be used for various applications, such as municipal water treatment, food and beverage manufacturing, chemical processing, and oil and gas operations.
5. Energy-Efficient: These systems are designed to minimize pressure drop, leading to greater energy efficiency.
6. User-Friendly: High-flow cartridge filter housing systems often come with user-friendly features that make replacement and maintenance tasks much more accessible.

Remember, while the benefits are plentiful, it’s essential to assess your specific requirements and consult with an expert before opting for a high-flow cartridge filter housing system.

Comparison with standard cartridge filter housing

When compared with standard cartridge filter housing, high-flow cartridge filter housing offers several distinct advantages.

1. Capacity: High-flow cartridge filter housings can handle significantly larger volumes of fluid than standard housings, thereby reducing the number of filtration units required.
2. Footprint: Due to their increased capacity, high-flow cartridge filter housings take up less physical space, which is a critical factor in many industrial environments.
3. Operational Cost: The longevity and durability of high-flow cartridge filter housings equate to lower operating costs over time due to less frequent replacements.
4. Energy Efficiency: High-flow cartridge filter housings deliver superior energy efficiency by minimizing pressure drops, thus reducing energy consumption.
5. Maintenance: High-flow cartridge filter housings offer user-friendly features, simplify maintenance tasks, and reduce associated labor costs.

While high-flow cartridge filter housing offers these advantages, it is essential to factor in the nature of the specific application and cost-effectiveness before choosing between the two.

Material and design considerations for high-flow cartridge filter housing

When selecting a high-flow cartridge filter housing, there are several material and design aspects to consider:

1. Material: The materials used in the construction of the housing should be robust and resistant to corrosion. Stainless steel is often a preferred choice due to its strength and resistance to rust and other forms of corrosion.
2. Design: The design should facilitate easy installation and replacement of cartridges. A top-entry design is often recommended for its ease of use.
3. Pressure Rating: The housing should have a suitable pressure rating for the specific application. High-pressure applications require housings with higher pressure ratings.
4. Temperature Compatibility: The housing should be able to withstand the operating temperature of the fluid being filtered.
5. Seal Material: The seals within the housing should be made of a material that is resistant to the fluid being filtered. Buna-N and Viton are common seal materials.
6. End Cap Configuration: The end cap configuration should be compatible with the filter cartridge being used.

By considering these factors, you can ensure that you select the most suitable high-flow cartridge filter housing for your specific application.

Choosing the proper high-flow cartridge filter housing for specific industrial needs

Choosing the proper high-flow cartridge filter housing for specific industrial needs requires a thorough understanding of the application and the operational context. For instance, industries dealing with aggressive chemicals or high-temperature fluids may require housings made of unique materials such as Hastelloy or with specific internal coatings. Industries that prioritize hygiene, such as food and beverage or pharmaceuticals, might favor housings with sanitary finishes and designs that minimize dead spaces where contaminants can accumulate.

In industries where productivity is critical, housings with a large number of cartridges or with features that facilitate rapid cartridge change-outs might be preferred. In cost-sensitive applications, the initial cost of the housing and the ongoing cost of replacement cartridges should be considered. Furthermore, the housing must comply with any relevant industry standards or regulatory requirements. By diligently considering these factors, businesses can make an informed decision that balances performance, safety, and cost.

Operating conditions and maintenance of high-flow cartridge filter housing

Effective operation and maintenance of a high-flow cartridge filter housing system are crucial for its longevity and performance. Monitoring parameters like pressure, temperature, and flow rate is essential, along with considering fluid characteristics. Regular maintenance involves inspection, seal checks, and timely cartridge replacement. Proper disposal and tailored cleaning are also crucial, especially in hygiene-sensitive industries.

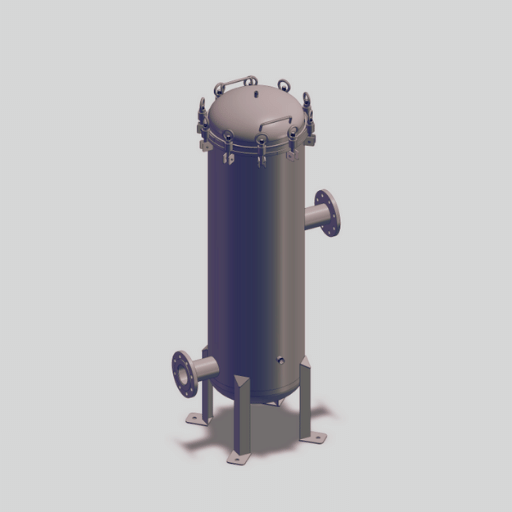

How do you select a suitable stainless steel cartridge filter housing?

Advantages and durability of stainless steel cartridge filter housing

Stainless steel cartridge filter housings offer several advantages, mainly due to the properties of stainless steel itself:

1. Durability and Longevity: Stainless steel is highly resistant to corrosion, giving it a long operational life. This makes it an ideal material for applications where the housing will be exposed to corrosive substances or harsh environmental conditions.
2. Strength: Stainless steel housings are structurally robust and able to withstand high pressures and temperatures without deforming or failing.
3. Hygienic: Stainless steel has a smooth, non-porous surface that does not harbor bacteria, making it suitable for use in hygiene-sensitive industries such as food and beverage and pharmaceuticals.
4. Temperature Tolerance: Stainless steel can accommodate a wide range of temperatures, from extremely hot to very cold, without losing its physical properties.
5. Ease of Maintenance: Stainless steel is easy to clean and does not require special coatings or treatments to preserve its surface.
6. Cost-Effective: Although the initial cost may be higher, the long life and low maintenance requirements of a stainless steel housing can make it cost-efficient in the long term.

By considering these advantages in the context of their specific application and operational requirements, businesses can determine if a stainless steel cartridge filter housing is the right choice for them.

Compatibility with different filtration media in stainless steel cartridge filter housing

One of the significant advantages of stainless steel cartridge filter housing is its compatibility with numerous filtration media. This compatibility stems from the inherent qualities of stainless steel, which is impervious to a vast array of substances. Critical filtration media that can be utilized include:

1. Pleated Media Filters: These filters are known for their high dirt-holding capacity due to the increased surface area from the pleats. They are ideal for applications where a large volume of contaminants needs to be removed.
2. String Wound Filters: These filters are perfect for trapping a wide range of particulates, making them suitable for numerous applications, including water and chemical filtration.
3. Activated Carbon Filters: These filters specialize in removing chlorine and organic materials and improving taste and odor. They are frequently used in the food and beverage industry.
4. Ceramic Filters: These filters, known for their small pore size, are excellent for removing bacteria and other microorganisms.
5. Melt Blown Filters: These filters are efficient for sediment reduction, featuring graded density for higher dirt holding capacity.

The versatility of stainless steel cartridge filter housing combined with the proper filtration media can provide optimal filtration solutions for a wide array of applications.

Industry-specific applications and standards for stainless steel cartridge filter housing

In the Pharmaceutical Industry, stainless steel cartridge filter housings ensure compliance with stringent regulatory standards, such as the FDA, ensuring high-purity filtration. They are used in sterile venting, end-product processing, and API filtration.

The Food and Beverage Industry uses these filter housings for applications such as beverage clarification, steam filtration, and edible oil filtration, ensuring the removal of any particulates that could affect taste or safety.

In the Chemical Industry, filter housings must withstand aggressive chemicals. Stainless steel cartridge filter housings are robust and offer excellent chemical resistance, making them ideal for this application.

The Water Treatment Industry uses these housings for pre-RO and post-RO filtration processes, providing clean, filtered water.

The Oil & Gas Industry uses stainless steel cartridge filter housings in upstream, midstream, and downstream operations. Applications include amine sweetening, glycol dehydration, and produced water treatment.

Each of these industries has specific standards for filtration, from the FDA’s stringent requirements in the pharmaceutical industry to the quality guidelines in the food and beverage industry. Stainless steel cartridge filter housings provide a versatile, robust solution that can meet these diverse standards.

Specifications and sizes available in stainless steel cartridge filter housing

Stainless steel cartridge filter housings come in a variety of specifications and sizes, all designed to meet the diverse needs of various industries. The specifications typically include parameters such as material grade, maximum operating pressure, maximum operating temperature, and seal material. For instance, housing materials may correspond to 304 or 316L stainless steel grades, while the operational pressure may range from 150 PSI to 300 PSI, and the temperature can go up to 250°F.

Regarding sizes, the housings can accommodate multiple cartridges, from single-cartridge configurations to 100-plus cartridge models. The length of the cartridges can vary as well, with standard lengths being 10″, 20″, 30″, or 40″. Understanding these specifications is crucial, as they determine the filter’s compatibility with process requirements and its overall performance in the filtration process.

Maintenance and cleaning procedures for stainless steel cartridge filter housing

Regular maintenance and cleaning of stainless steel cartridge filter housings are critical to ensure optimal performance and extended lifespan. The maintenance procedures include routine inspection for damage or wear, seal replacement, and pressure checks. It’s recommended to examine the housing and replace the seals annually or when they exhibit signs of wear or leakage. Likewise, pressure checks should be conducted at regular intervals to ensure the housing is operating within the specified range.

Cleaning involves emptying the housing, removing the cartridges, and thoroughly cleaning the interior. Typically, this process should be done with a mild detergent and warm water. However, specific cleaning procedures may depend on the type of contaminants present. After cleaning, rinsing thoroughly is necessary to remove any residual detergent. It is essential to allow the housing to dry completely before reinstalling cartridges and returning them to service. Always refer to your manufacturer’s guide for specific maintenance and cleaning protocols for your particular model.

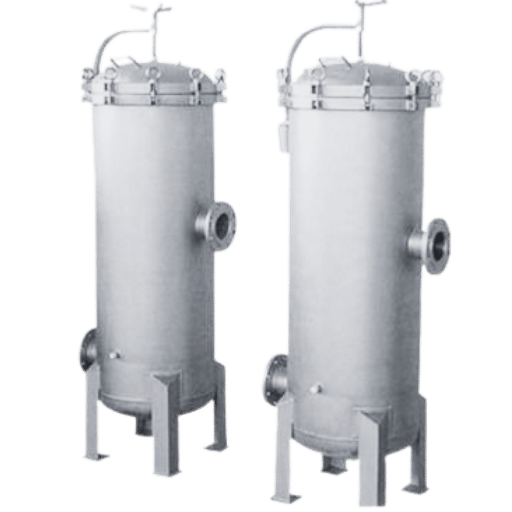

Where can you find reliable and quality cartridge filter housing suppliers?

Choosing the Right Cartridge Filter Housing Based on Industry Requirements

In the quest for the proper cartridge filter housing, it’s imperative to align the selection with industry-specific requirements. Each industry, be it pharmaceutical, food and beverage, petrochemical, or water treatment, has unique filtration needs and quality guidelines. Therefore, understanding your process and industry standards can guide you to a suitable cartridge filter housing.

Comparing Different Cartridge Filter Housing Series and Options in the Market

The market is replete with a plethora of cartridge filter housing series and options, each with its unique features and benefits. A comparative analysis can prove beneficial before making a purchase decision. Consider factors such as material of construction, pressure rating, design, and compatibility with your filter cartridges.

Assessing the Stock Availability and Lead Times for Cartridge Filter Housing

Another significant factor to consider is the stock availability and lead time. This information can be critical in planning for replacements and reduces downtime. Suppliers with robust inventory management and short lead times can ensure uninterrupted operation of your filtration process.

Ensuring Compliance with Industry Standards and Certifications for Cartridge Filter Housing

Lastly, make sure that the cartridge filter housing you choose complies with relevant industry standards and certifications. This compliance not only guarantees the safety and reliability of the product but also ensures its compatibility with your process requirements. Always choose a supplier that provides products that meet ASME, ISO, and other recognized quality standards.
